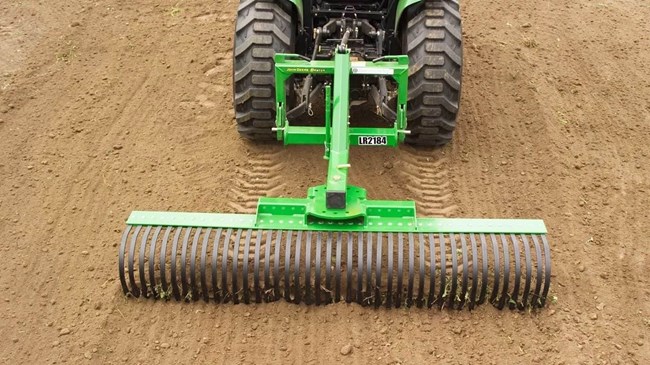

John Deere LR2184

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / LR2184

Double tap to zoom



Features

Strong 4x4 Steel Frame

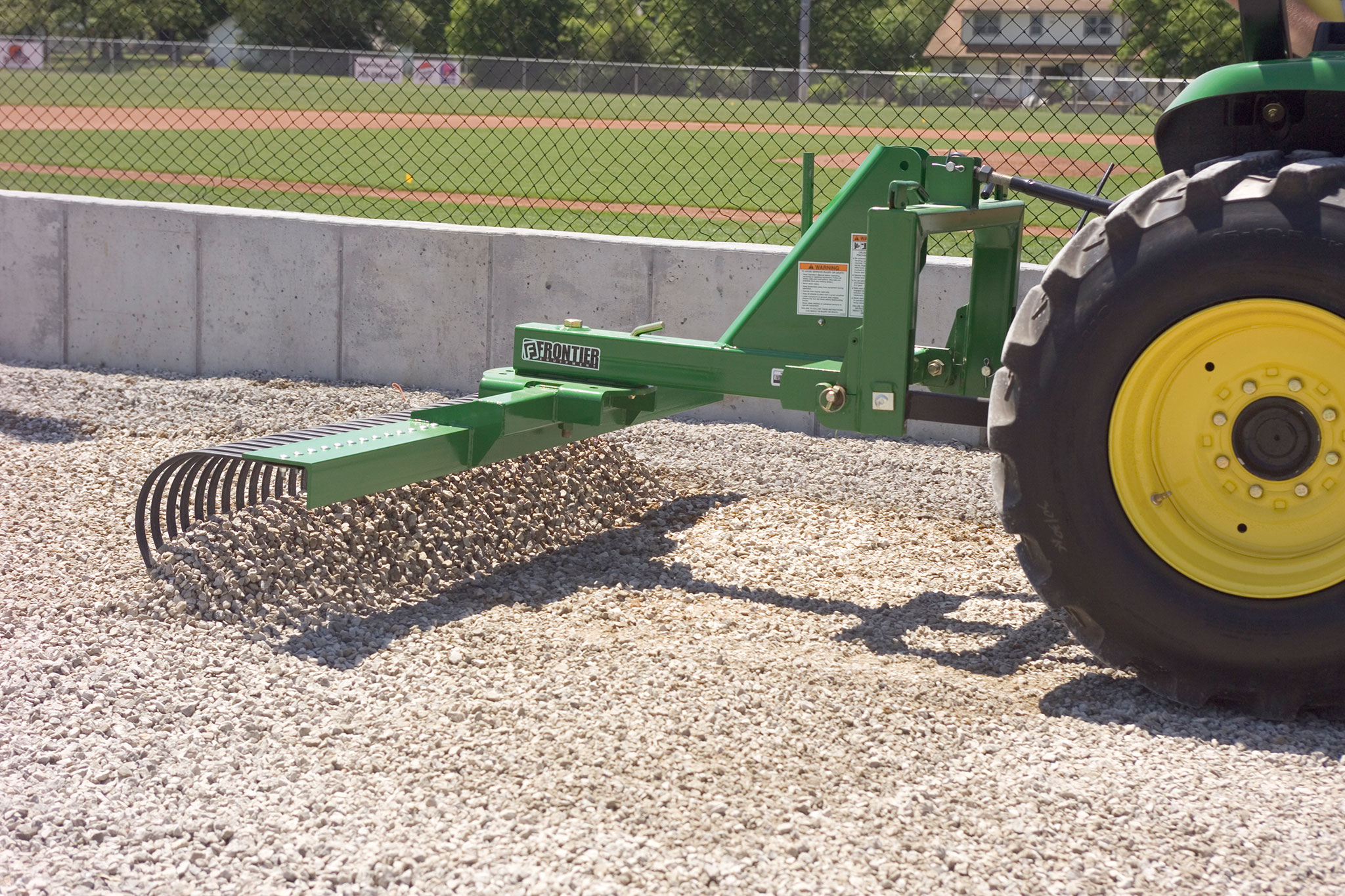

Right side view of steel frame on LR21 Landscape Rake raking gravel around the outside of a baseball field

A strong 4x4 steel frame supports an angled tine beam for superior performance.

Steel Tines and Waffle Plates

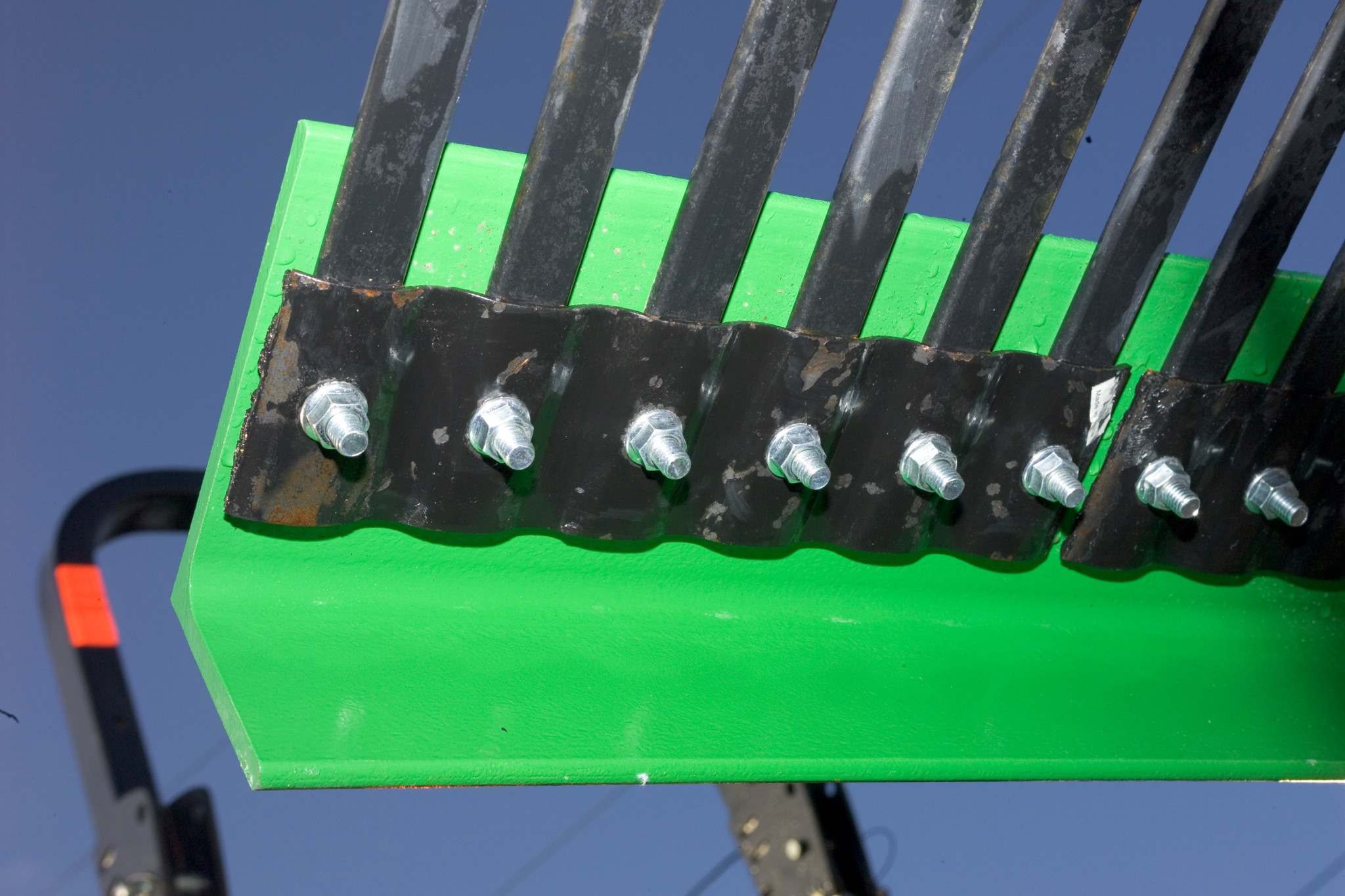

Close-up view of a green metal attachment edge with several black vertical tines bolted along the top using silver hex bolts, shown against a blue sky

Heat-treated steel tines are mounted with bolts and held secure with a steel waffle plate on the Frontier™ LR21 Series Medium-Duty Landscape Rake. This mounting ensures positive spacing and alignment, while providing increased strength and durability. These waffle plates also make replacement fast and easy, saving time and money.

Quick Hookup With Category 1 and iMatch™ Hitches

Front view of the LR2184 landscape rake's frame and hitch connection to a tractor

The Frontier™ Medium-Duty Landscape Rake is 3-point hitch compatible with Category 1 and iMatch™ hitches, which ensures quick, efficient hookup.

Specifications

Hitch

CompatibilityCategory 1

Duty

TypeMedium

Weight

Shipping393 lb.
Shipping178.3 kg
Operating307 lb.
Operating139.3 kg

Dimensions

Working Width213.4 cm
Working Width84 in.

Tines

Dimensions0.8x2.5 cm
Dimensions0.3125x1 in.
Quantity42
Spacing2.5 cm
Spacing1 in.

Tractor Compatibility

PTO Horsepower23-55 hp
PTO Horsepower17.2-41 kW

Pivot

Degrees360 degree (angle)

Warranty

Time Period1 year

Raking angle

PositionsForward: 5; Reverse: 3
Degrees0, 15, 30 degree (angle)

Parking Stands

StandardYes
