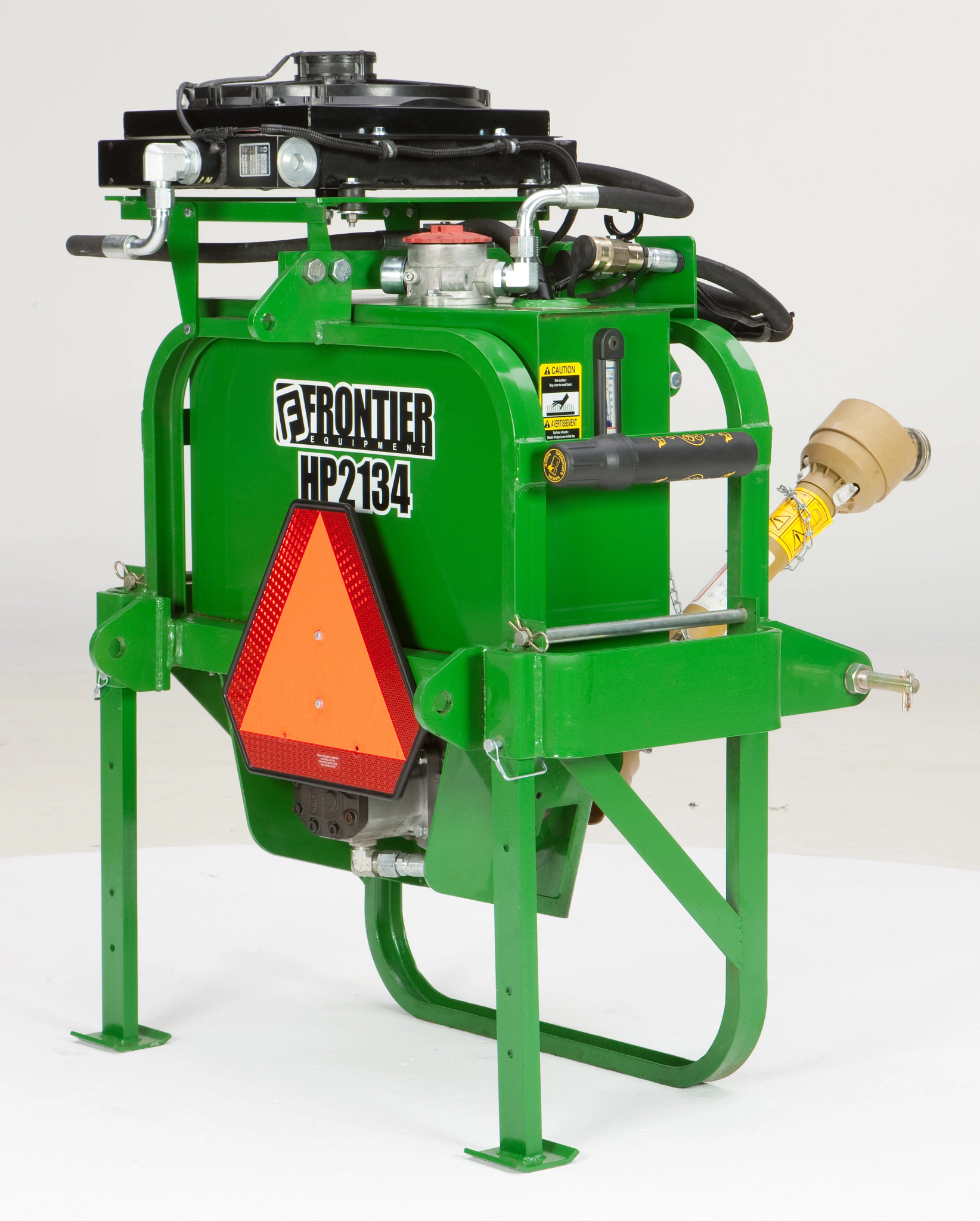

John Deere HP2134
Double tap to zoom
HP2134
Tractor Attachments and Implements
Overview:
The HP2134 Hydraulic Power Unit delivers a robust 34 hp performance perfect for demanding tasks, seamlessly integrating with your existing John Deere equipment to enhance efficiency and reliability on the job site.
- Thermal Switch Protects Hydraulic System
- Rear Quick Connect Makes Hookup Convenient
- Optional Oil Cooler Unit
- Reliable Power Delivery
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Thermal Switch Protects Hydraulic System
A thermal switch protects the hydraulic system when the hydraulic oil reaches 200 °F (93 °C).
Rear Quick Connect Makes Hookups Convenient
Rear quick connect makes for fast and easy connections.

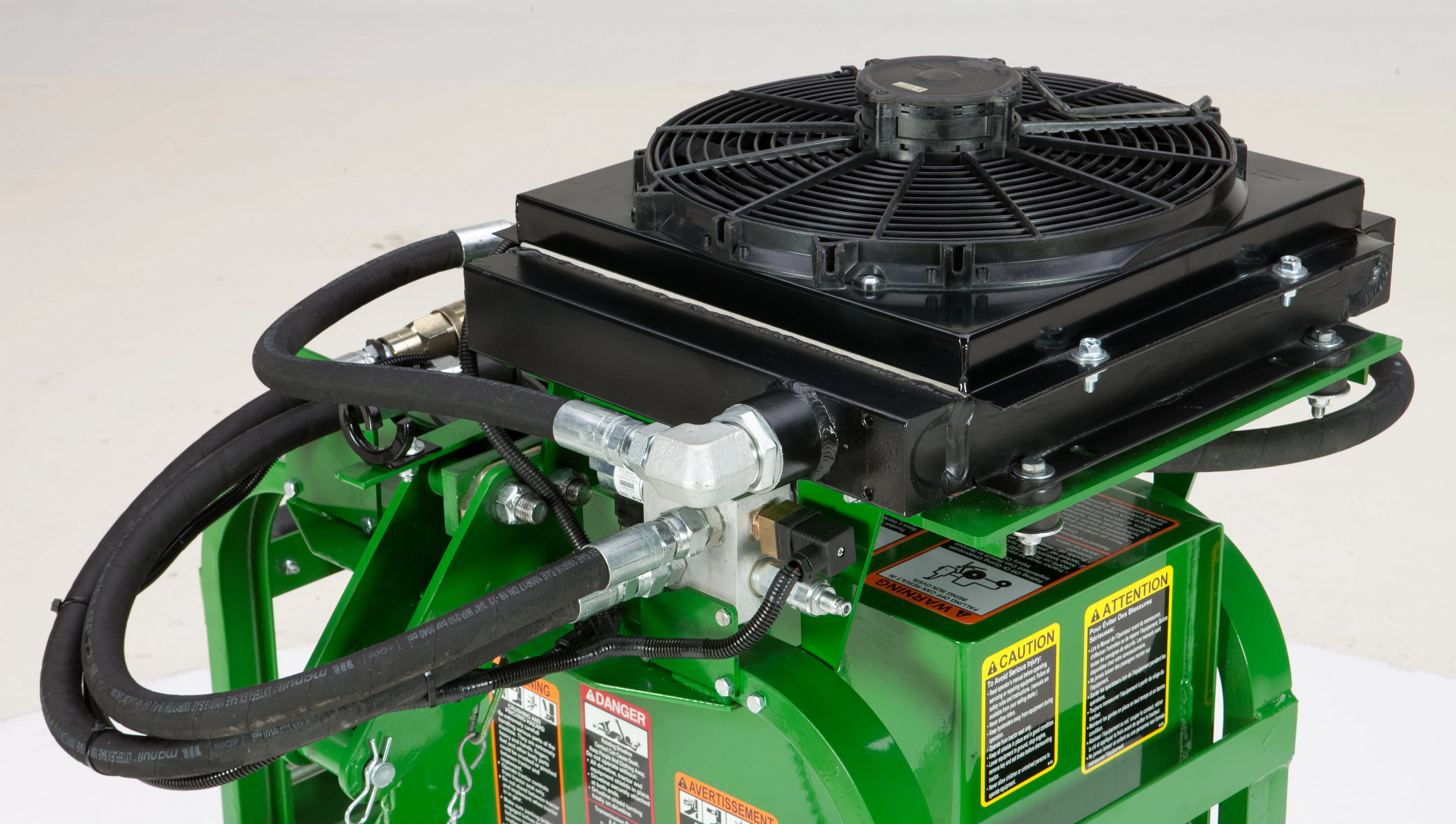

Optional Oil Cooler Unit
The optional oil cooler unit regulates the temperature of the hydraulic fluid for warmer weather implements.
Specifications
Dimensions
| Unit Height | 52 in. |
| Unit Height | 1321 mm |
| Unit Width With Weights | 1524 mm |
| Unit Length | 762 mm |
| Unit Length | 30 in. |
| Unit Width With Weights | 60 in. |
| Unit Width | 965 mm |
| Unit Width | 38 in. |
Hydraulics
| Relief Valve Setting | 207 bar |
| Pump RPM | 1836 rpm |
| Oil Reservoir | 15 gal. |
| Relief Valve Setting | 3000 psi |
| Oil Reservoir | 56.8 L |
| Oil Cooler | Standard |
| Tank-Mounted Return Filter | Standard, with breather |
| Tank-Mounted Strainer | Standard |
| Hose Diameter | 19 mm |
| Hose Diameter | 0.75 in. |
| Flow At 3000 Psi (207 Bar) | 75.7 L/min |
| Flow At 3000 Psi (207 Bar) | 20 gpm |
Miscellaneous
| Parking Stands | Standard |
| Counter Weight Support | 700, accepts John Deere weights: 42 lb (19.1 kg) and 70 lb (31.8 kg) |
Shipping
| Configuration | One unit |
Hitch
| Quick Hitch, Category 2 | Yes |
| Category | Category 1 and 2 |
Setup Time
| Labor Hours | 1.5–2 |
Tractor Requirements
| PTO Horsepower | 35–56 hp |
| PTO Horsepower | 26.1–41.8 kW |
| PTO RPM | 540 rpm |
| Loader (Current John Deere Series) | 400 |
Warranty
| Time Period (Machine) | 1 year |
Weight
| Shipping | 535 lb. |
| Shipping | 1177 kg |
| Operating | 535 lb. |
| Operating | 1177 kg |
