Features

Quik-Change Capability for Increased Uptime

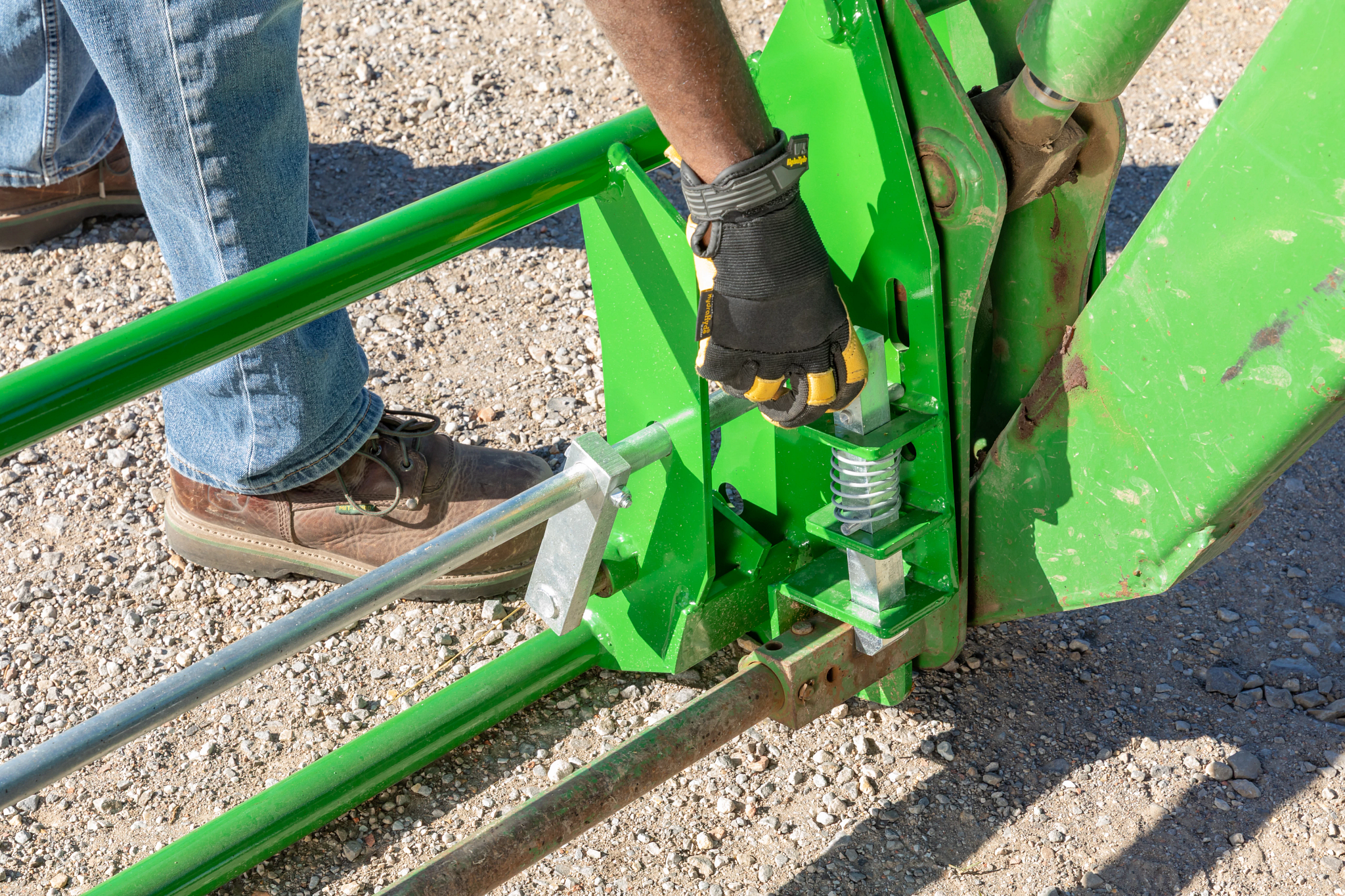

Quik-Change Capability on the GA22D

Hook up the global carrier adapter by lining up the loader’s connecting point to the attachment frame, picking up the attachment, and locking it in place, converting your John Deere Quik-Change attachment carrier to global style carrier.

Robust Capacity and Performance

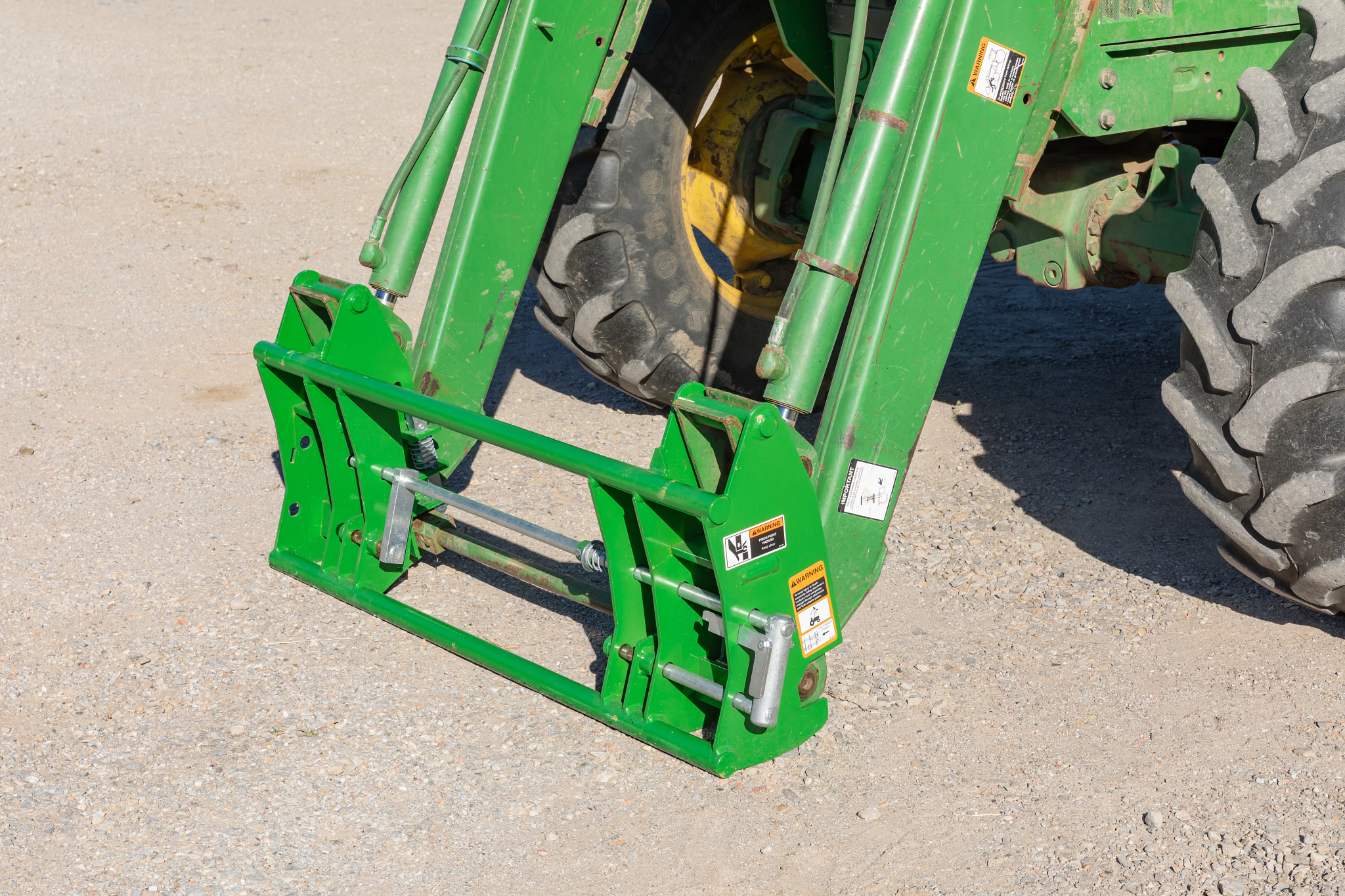

Close-up of a tractor front-loader mounting frame with metal linkage bars and hydraulic arms resting on a gravel surface, positioned between the tractor’s front wheels.

With a capacity of 5000 lb. (2268 kg) and compatibility with tractors up to 145 hp (108.1 kW), the GA22D Global Carrier Adapter delivers robust performance. It enhances the operational effectiveness of compatible loaders, ensuring efficient handling of heavy attachments.

Global Carrier Adapter Expands Equipment Compatibility

Rear view of a green tractor showing a mounted implement frame spanning between the rear wheels, with metal linkage arms and adjustment rods.

The global carrier adapter allows for the use of global style attachments on a Quik-Change 600 Series and 700 Series Loader to increase tractor and attachment compatibility.

Specifications

Dimensions

Overall Height53.6 cm
Overall Height21.1 in.
Overall Width125.5 cm
Overall Width49.4 in.
Increased Loader Length10.4 cm
Increased Loader Length4.1 in.

Weight

Operational Weight79 kg
Operational Weight174 lb.

Warranty

Warranty Time Period1 year

Attachment Carrier

Current Series StyleJohn Deere 600 Style Loader

Tractor Compatibility

Maximum Tractor Power108.2 kW
Maximum Tractor Power145 hp

Carrier adapter capacity

Carrier Adapter Capacity2268 kg
Carrier Adapter Capacity5000 lb.
