John Deere DT1136

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / DT1136

Double tap to zoom



Features

Efficient Discharge Auger

Studio close-up of the end of a DT11 series trencher's green discharge auger

A 14-in. (35.6-cm) discharge auger simplifies the trenching process by efficiently pushing displaced dirt aside. This functionality prevents backfill into fresh trenches and aids in maintaining smooth operations without clogging.

Seamless Attachment

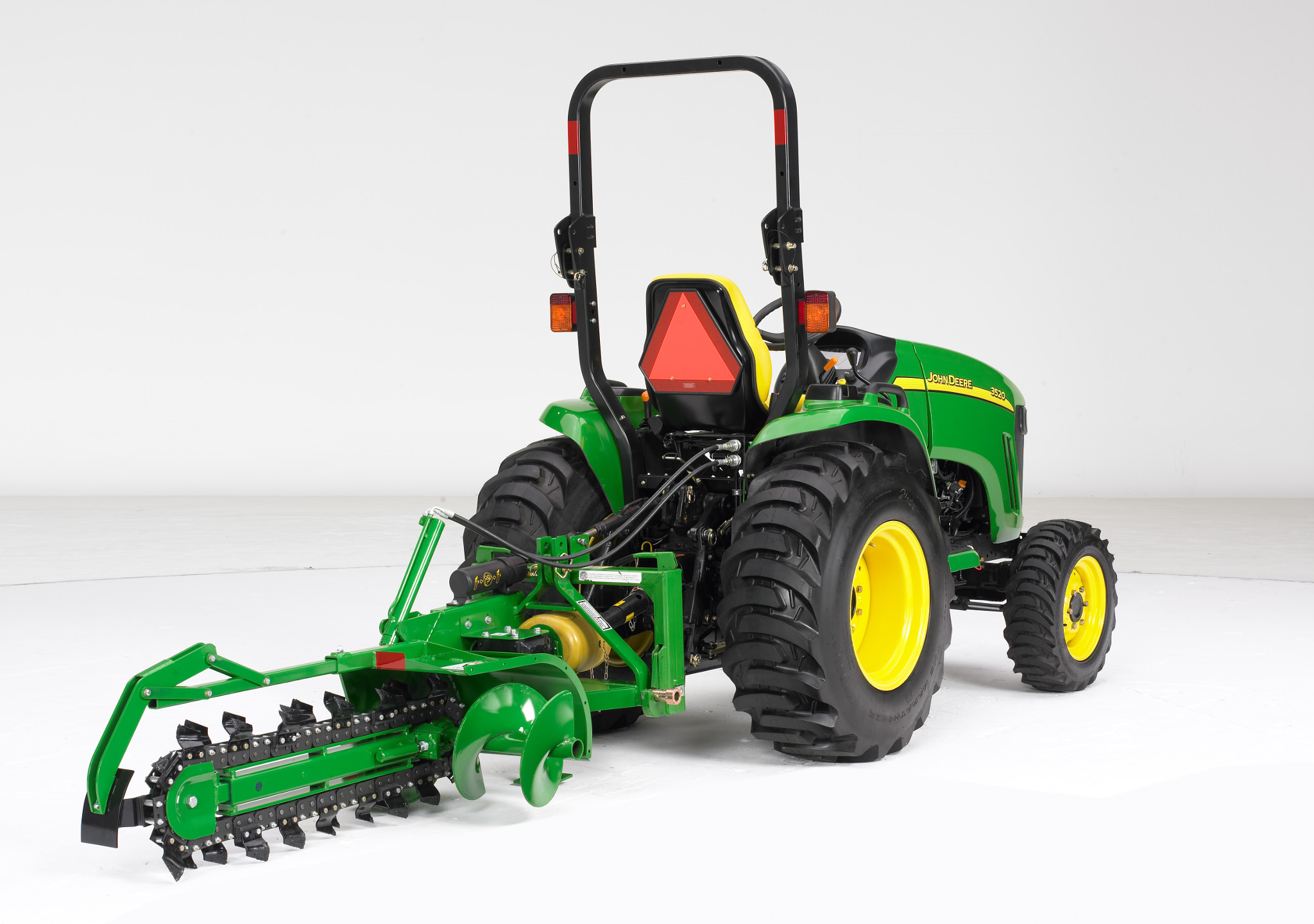

Rear view of a green tractor equipped with a mounted trenching attachment featuring a rotating chain and cutting teeth

The trencher is designed with a Category 1 hitch to seamlessly attach to compatible tractors, and it fits well within certain PTO horsepower ranges (15-30 hp [11.2-22.4 kW]). This compatibility ensures it can be used with a variety of John Deere tractors to meet different trenching needs.

Durable Chain for Light-Duty Trenching

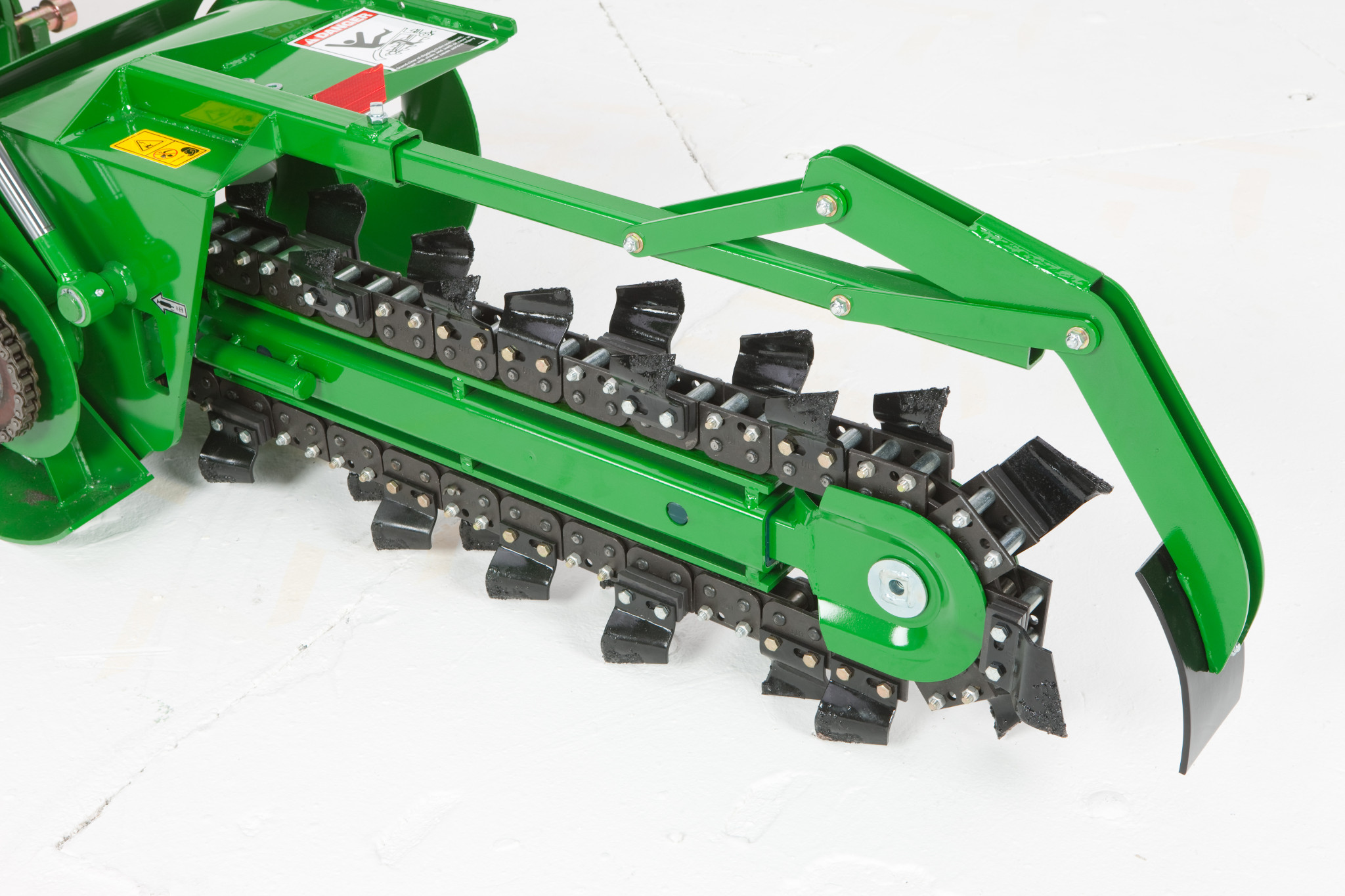

Close-up view of a green trenching attachment with a rotating chain of digging teeth and a curved skid shoe, shown on a white background

The DT1136 features a rugged chain that excels in light-duty trenching tasks. It effectively cuts a 6-in. (15.2-cm) wide trench and can dig up to 36 in. (91.4 cm) deep, which ensures reaching beneath the frost line for a variety of applications.

Specifications

Chain

Chain Type - Rating38000 lb.
Chain Type - Rating17236.5 kg
Chain Width15.2 cm
Chain Length In Pitches64
Chain Width6 in.
Chain Pitch1.65 in.
Chain Pitch4.2 cm
Chain TypeRated anti back flex

Dimensions

Overall Height29 in.
Overall Height73.7 cm
Trench Depth With Auger At 65-Degree Angle91.4 cm
Overall Length79 in.
Overall Length200.7 cm
Overall Width38 in.
Overall Width96.5 cm
Trench Depth With Auger At 65-Degree Angle36 in.

Tractor Compatibility

PTO Horsepower15-30 hp
PTO Horsepower11.2-22.4 kW

Weight

Operating Weight287.1 kg
Operating Weight633 lb.
Shipping Weight650 lb.
Shipping Weight294.8 kg

PTO

Speed540 rpm
Overload ProtectionSlip clutch

Shipping

ConfigurationOne unit

Spoil Auger

Spoil Auger Diameter14 in.
Spoil Auger Diameter35.6 cm
Spoil Auger Discharge Reach53.3 cm
Spoil Auger Discharge Reach21 in.

Parking Stands

StandardYes

Hydraulic System

TypeOne double acting cylinder

Hitch

Hitch CompatibilityCategory 1

Duty

TypeStandard
