John Deere DH5312

Double tap to zoom

DH5312

Tractor Attachments and Implements

Overview:

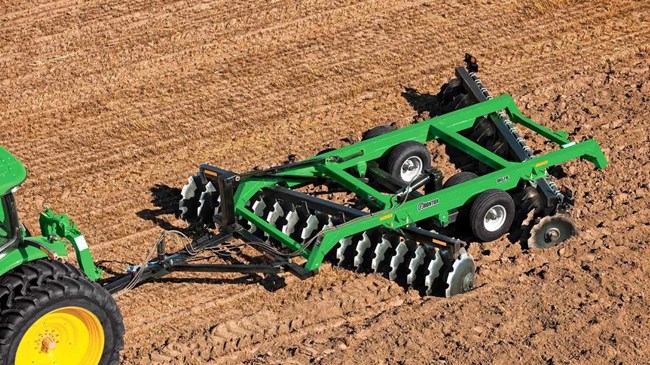

The DH5312 - 12-ft Rigid Single Offset Ag Disk With 25 Blades combines durability and precision to deliver top-notch soil preparation and residue management, making it an indispensable tool for efficient and effective farming operations.

Adjustable Disk Blade Scrapers
Rear Hitch for Attaching Additional Implement
Transport Locks Secure Disk Wings
Oil Bath Tapered Roller Bearings Minimize Maintenance

Get a Quote

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features
Specifications

Features

End Washers and Wrenches Keep Gang Shaft End Nut Tight

Close-up of an offset disk's end washer and nut, keeping gang tightened

End washers help keep the gang shaft end nut tightened during operation, increasing gang wear life. Two gang nut wrenches are supplied with each unit and securely attached to the unit, ready to use when the gangs need tightening.

Adjustable Disk Blade Scrapers Increase Productivity

Close up view of DH5110 Disk Harrow in field

Adjustable disk blade scrapers keep disk blades clean and performing in wet and sticky soils for increased productivity.

Clevis Hitch Is Durable for Those Tough Working Conditions

The clevis hitch has a durable design and is designed for ease of use, long life, and tough working conditions.

Specifications

Dimensions

Weight Per Disk	180.1 kg
Weight Per Disk	397 lb.

Disks

Blade Concavity	Standard: high; Optional: low
Quantity	25
Spacing	30.5 cm
Spacing	12 in.
Notched (Front) Notched (Rear)	Standard

Available blade sizes

Blade Option Three	813x9.5 mm
Blade Option Three	32x0.375 in.
Blade Option Two	762x9.5 mm
Blade Option Two	30x0.375 in.
Blade Option One	711x9.5 mm
Blade Option One	28x0.375 in.

Frame

Tube Size	6x6x0.375 in., 15.2x15.2x0.95 cm
Duty	Heavy
Type	Single offset rigid
Main Frame Tube	6x6x0.375 in., 15.2x15.2x0.95 cm

Tires

Size	12.5L x 15 10 ply
Type	Implement- Quantity of 4
Wheel Hub Type	8 Bolt

Transport

Wheel Hub Bearings	Dual Tapered Roller Bearings
Ground Clearance With Base Blades	9 in.
Ground Clearance With Base Blades	22.9 cm
Transport - Width	4 m
Transport - Width	13 ft

Setup Time

Labor Hours

2-3 for two people

Tractor Requirements

Recommended Drawbar HP Range	104.4-126.8 kW
Recommended PTO HP Range	165-200 hp
Recommended Drawbar HP Range	140-170 hp
Recommended PTO HP Range	123-149 kW

Weight

Weight Per Disk Blade	180.1 kg
Weight Per Disk Blade	397 lb.
Net	9140 lb.
Net	4145.8 kg

Disk Gangs

Rear Angle	2 Positions degree (angle)
Scrapers	Adjustable
Bearing Wear Plates	Standard
Bearing Type	Oil bath tapered roller
Axle Size	6.4 cm
Bearing Standards	Welded, Reinforced
Axle Size	2.5 in.
Axle Material	Round heat treated alloy steel threaded on both ends
Front Angle	2 Positions degree (angle)

Working Adjustments

Maximum Penetration	0.229 m
Maximum Penetration	0.75 ft
Approximate Working Width	12 ft
Approximate Working Width	3.7 m

Lighting and Safety

Markings	SMV
Safety Tow Chain	Yes
Lights	Yes

Warranty

Time Period

1 year

Hitch

Front Hitch Type

Spade
