John Deere DH5221

Double tap to zoom

DH5221

Tractor Attachments and Implements

Overview:

The DH5221 - 21-ft Rigid Single Offset Disk with 49 Blades offers exceptional soil preparation and residue management with its durable construction and available blade configurations. Engineered and built to take on tough tillage jobs.

Adjustable Blade Scrapers Increase Productivity
Notched or Smooth Disk Blades Available in Two Sizes
Durable Clevis Hitch
Oil Bath Tapered Roller Bearings Minimize Maintenance

Get a Quote

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features
Specifications

Features

Disk Blades (Notched or Smooth) Available in Two Sizes

Disk blades are available in 26-in. or 28-in. (66-cm or 71-cm) diameters. Disk blades are available in smooth blades, notched blades, or a combination of front notched blades and rear smooth blades to meet a variety of needs.

Clevis Hitch Is Durable for Those Tough Working Conditions

The clevis hitch has a durable design and is designed for ease of use, long life, and tough working conditions.

Adjustable Disk Blade Scrapers Increase Productivity

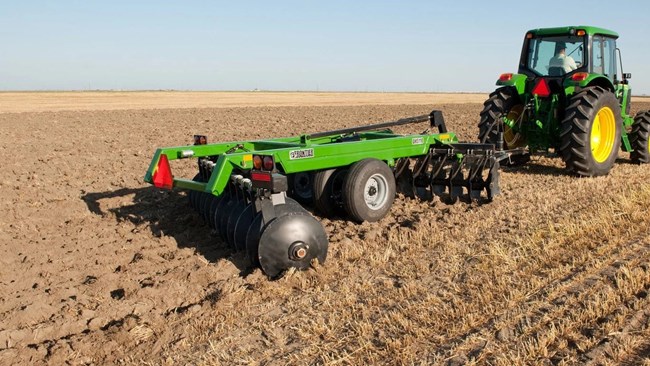

Close up view of DH5110 Disk Harrow in field

Adjustable disk blade scrapers keep disk blades clean and performing in wet and sticky soils for increased productivity.

Specifications

Disks

Smooth (Front) Smooth (Rear)	Optional
Blade Concavity	Standard: high, Optional: low
Quantity	49
Notched (Front) Smooth (Rear)	Optional
Spacing	26.7 cm
Spacing	10.5 in.
Notched (Front) Notched (Rear)	Standard

Dimensions

Weight Per Disk	112.9 kg
Weight Per Disk	249 lb.

Available blade sizes

Blade Option Two	711x7.9 mm
Blade Option Two	28x0.312 in.
Blade Option One	660x7.9 mm
Blade Option One	26x0.312 in.

Frame

Tube Size	6x6x0.375 in., 15.2x15.2x0.95 cm
Duty	Medium
Type	Single offset rigid
Main Frame Tube	6x6x0.375 in., 15.2x15.2x0.95 cm

Tires

Size	12.5L x 15 10 ply
Type	Implement- Quantity of 4
Wheel Hub Type	8 Bolt

Transport

Wheel Hub Bearings	dual tapered roller bearings
Ground Clearance With Base Blades	8 in.
Ground Clearance With Base Blades	20.3 cm
Transport - Width	6.7 m
Transport - Width	22 ft

Setup Time

Labor Hours

2-3 for two people

Tractor Requirements

Recommended Drawbar HP Range	126.8-149.1 kW
Recommended PTO HP Range	212-247 hp
Recommended Drawbar HP Range	180-210 hp
Recommended PTO HP Range	158-184 kW

Weight

Weight Per Disk Blade	112.9 kg
Weight Per Disk Blade	249 lb.
Net	11700 lb.
Net	5307 kg

Disk Gangs

Rear Angle	2 Positions degree (angle)
Scrapers	Adjustable
Bearing Wear Plates	Standard
Bearing Type	Oil bath tapered roller
Axle Size	4.1, 5.4 cm
Bearing Standards	Welded, Reinforced
Axle Size	1.625, 2.125 in.
Axle Material	Round heat treated alloy steel threaded on both ends
Front Angle	2 Positions degree (angle)

Working Adjustments

Maximum Penetration	0.229 m
Maximum Penetration	0.75 ft
Approximate Working Width	21 ft
Approximate Working Width	6.4 m

Lighting and Safety

Markings	SMV
Safety Tow Chain	Yes
Lights	Yes

Warranty

Time Period

1 year

Hitch

Front Hitch Type

Spade
