John Deere DH5116
Double tap to zoom
DH5116
Tractor Attachments and Implements
Overview:

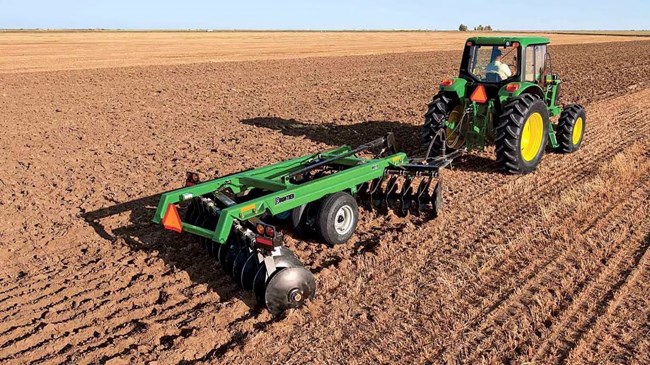

The DH5116 - 16-ft Rigid Single Offset Disk with 37 Blades offers exceptional soil preparation and residue management with its durable construction and available blade configurations. Engineered and built to take on tough tillage jobs.
- Adjustable Disk Blade Scrapers Increase Productivity
- Notched or Smooth Disk Blades Available in Two Sizes
- Durable Clevis Hitch
- Oil Bath Tapered Roller Bearings Minimize Maintenance
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Clevis Hitch Is Durable for Those Tough Working Conditions
The clevis hitch has a durable design and is designed for ease of use, long life, and tough working conditions.
Adjustable Disk Blade Scrapers Increase Productivity
Adjustable disk blade scrapers keep disk blades clean and performing in wet and sticky soils for increased productivity.
Disk Blades (Notched or Smooth) Available in Two Sizes
Disk blades are available in 26-in. or 28-in. (66-cm or 71-cm) diameters. Disk blades are available in smooth blades, notched blades, or a combination of front notched blades and rear smooth blades to meet a variety of needs.
Specifications
Disks
| Smooth (Front) Smooth (Rear) | Optional |
| Blade Concavity | Standard: high, Optional: low |
| Quantity | 37 |
| Notched (Front) Smooth (Rear) | Optional |
| Spacing | 26.7 cm |
| Spacing | 10.5 in. |
| Notched (Front) Notched (Rear) | Standard |
Dimensions
| Weight Per Disk | 109.8 kg |
| Weight Per Disk | 242 lb. |
Available blade sizes
| Blade Option Two | 711x7.9 mm |
| Blade Option Two | 28x0.312 in. |
| Blade Option One | 660x7.9 mm |
| Blade Option One | 26x0.312 in. |
Frame
| Tube Size | 5x5x0.375 in., 12.7x12.7x0.95 cm |
| Duty | General Purpose |
| Type | Single Offset Rigid |
| Main Frame Tube | 5x5x0.375 in., 12.7x12.7x0.95 cm |
Tires
| Size | 9.5L x 15-in. 8 ply |
| Type | Implement- Quantity of 4 |
| Wheel Hub Type | 6 Bolt |
Transport
| Wheel Hub Bearings | Dual Tapered Roller Bearings |
| Ground Clearance With Base Blades | 8 in. |
| Ground Clearance With Base Blades | 20.3 cm |
| Transport - Width | 5.2 m |
| Transport - Width | 17 ft |
Setup Time
| Labor Hours | 2-3 for two people |
Tractor Requirements
| Recommended Drawbar HP Range | 119.3-134.2 kW |
| Recommended PTO HP Range | 188-212 hp |
| Recommended Drawbar HP Range | 160-180 hp |
| Recommended PTO HP Range | 140-158 kW |
Weight
| Weight Per Disk Blade | 109.8 kg |
| Weight Per Disk Blade | 242 lb. |
| Net | 8500 lb. |
| Net | 3855.5 kg |
Disk Gangs
| Rear Angle | 2 Positions degree (angle) |
| Scrapers | Adjustable |
| Bearing Wear Plates | Standard |
| Bearing Type | Oil bath tapered roller |
| Axle Size | 4.1, 5.4 cm |
| Bearing Standards | Welded, Reinforced |
| Axle Size | 1.625, 2.125 in. |
| Axle Material | Round Heat Treated Alloy Steel Threaded on Both Ends |
| Front Angle | 2 Positions degree (angle) |
Working Adjustments
| Maximum Penetration | 0.229 m |
| Maximum Penetration | 0.75 ft |
| Approximate Working Width | 16 ft |
| Approximate Working Width | 4.9 m |
Lighting and Safety
| Markings | SMV |
| Safety Tow Chain | Yes |
| Lights | Yes |
Warranty
| Time Period | 1 year |
Hitch
| Front Hitch Type | Spade |
