Features

Increased Uptime with Quick Attach Carrier Adapter

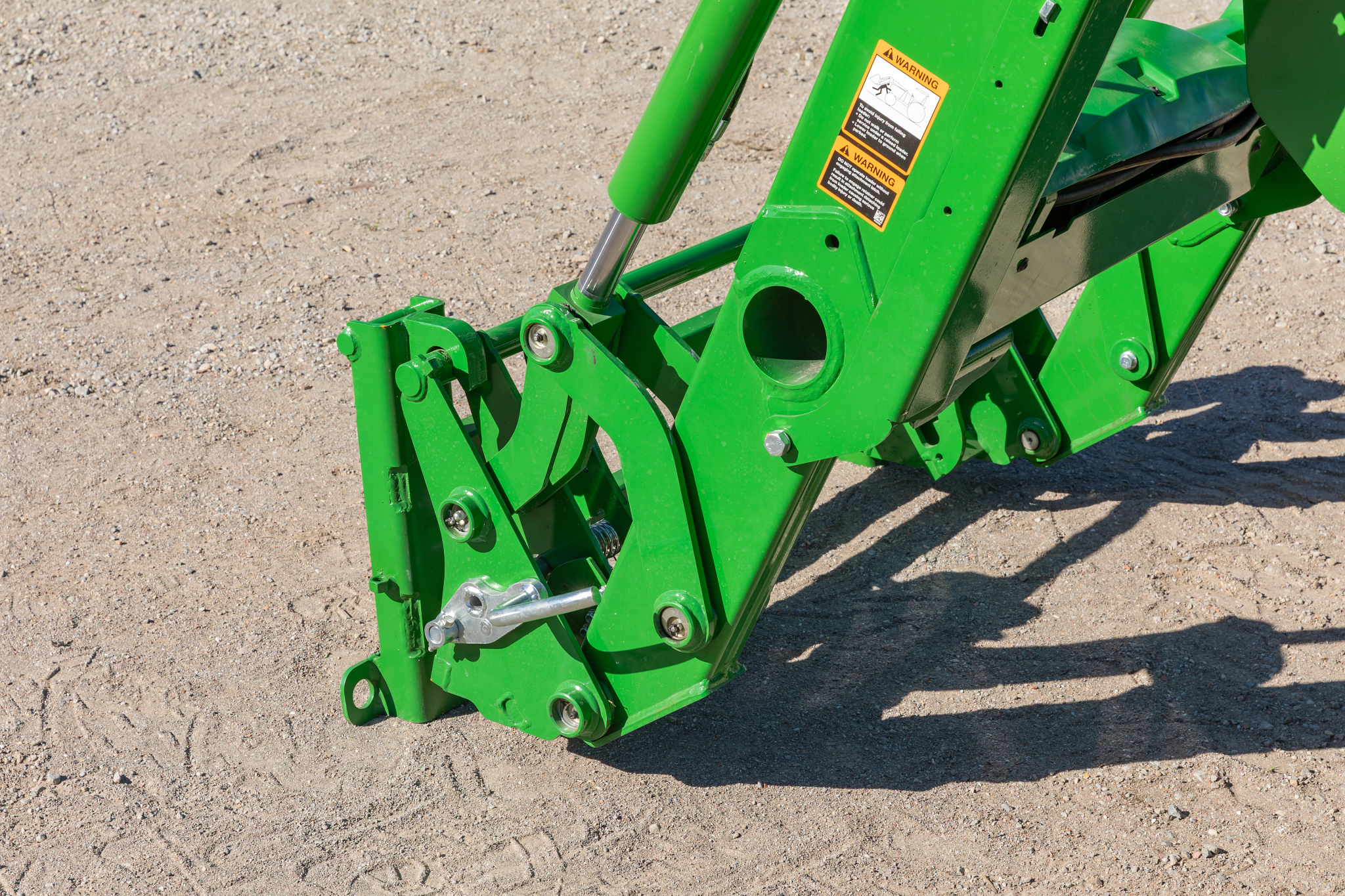

Side left view of a DA21G quick-attach carrier adapter on a 5075E tractor

The DA21G Quick Attach Carrier Adapter increases uptime by simplifying attachment changes with a global carrier system. The operator engages the hooks of the John Deere 500 Carrier Adapter by dumping the global carrier fully, rolling it back to engage the spring-activated latch pins.

Enhanced Equipment Compatibility

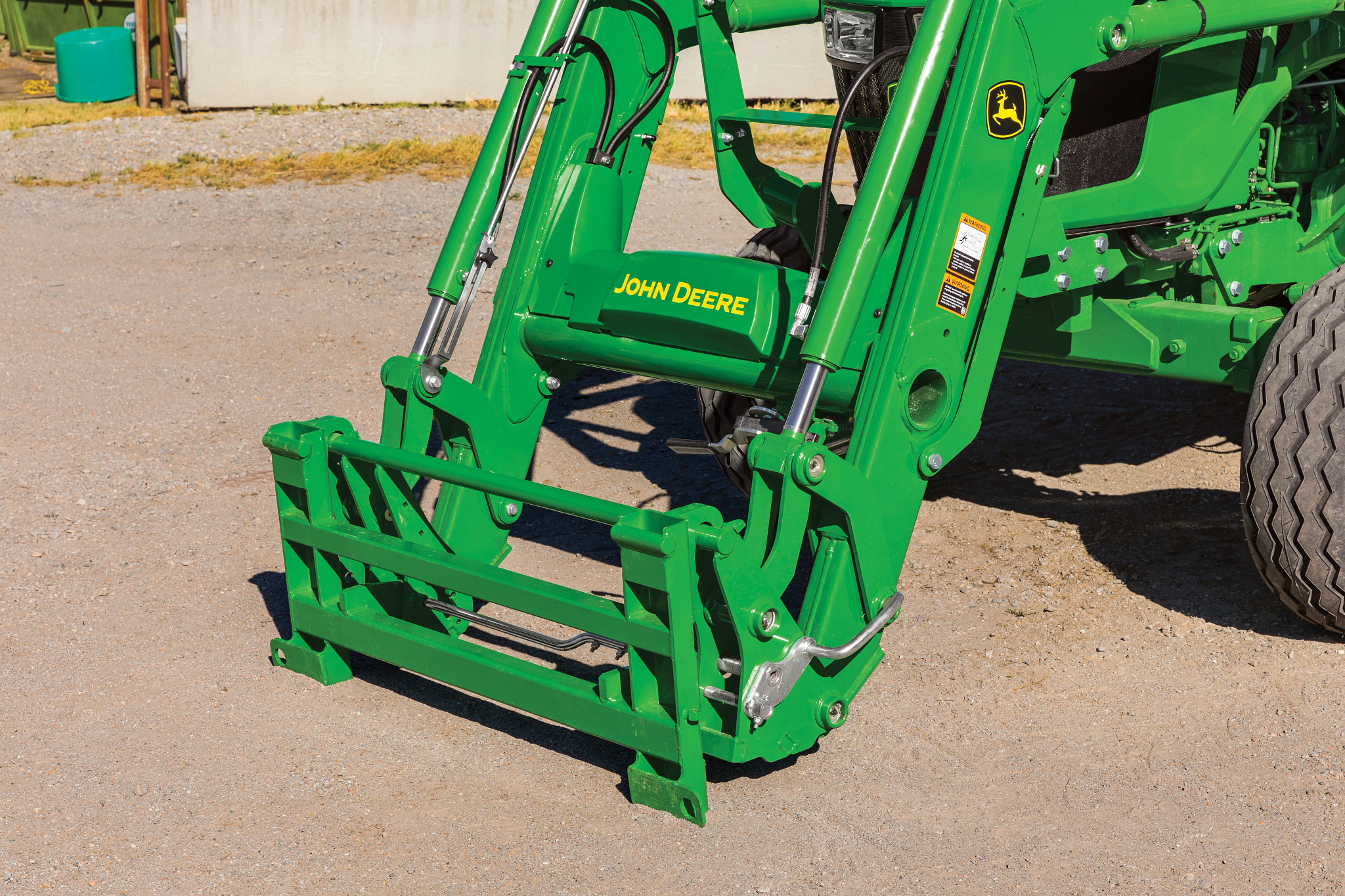

A close-up of a green front loader attachment showing the hydraulic arms, hoses, and quick‑attach carrier adapter positioned over a gravel surface

The adapter enhances equipment compatibility by allowing the use of John Deere 500 Series style attachments on new-style tractor loaders with a global carrier. This ensures users can maintain older attachments while upgrading tractor loaders.

High Capacity and Durability

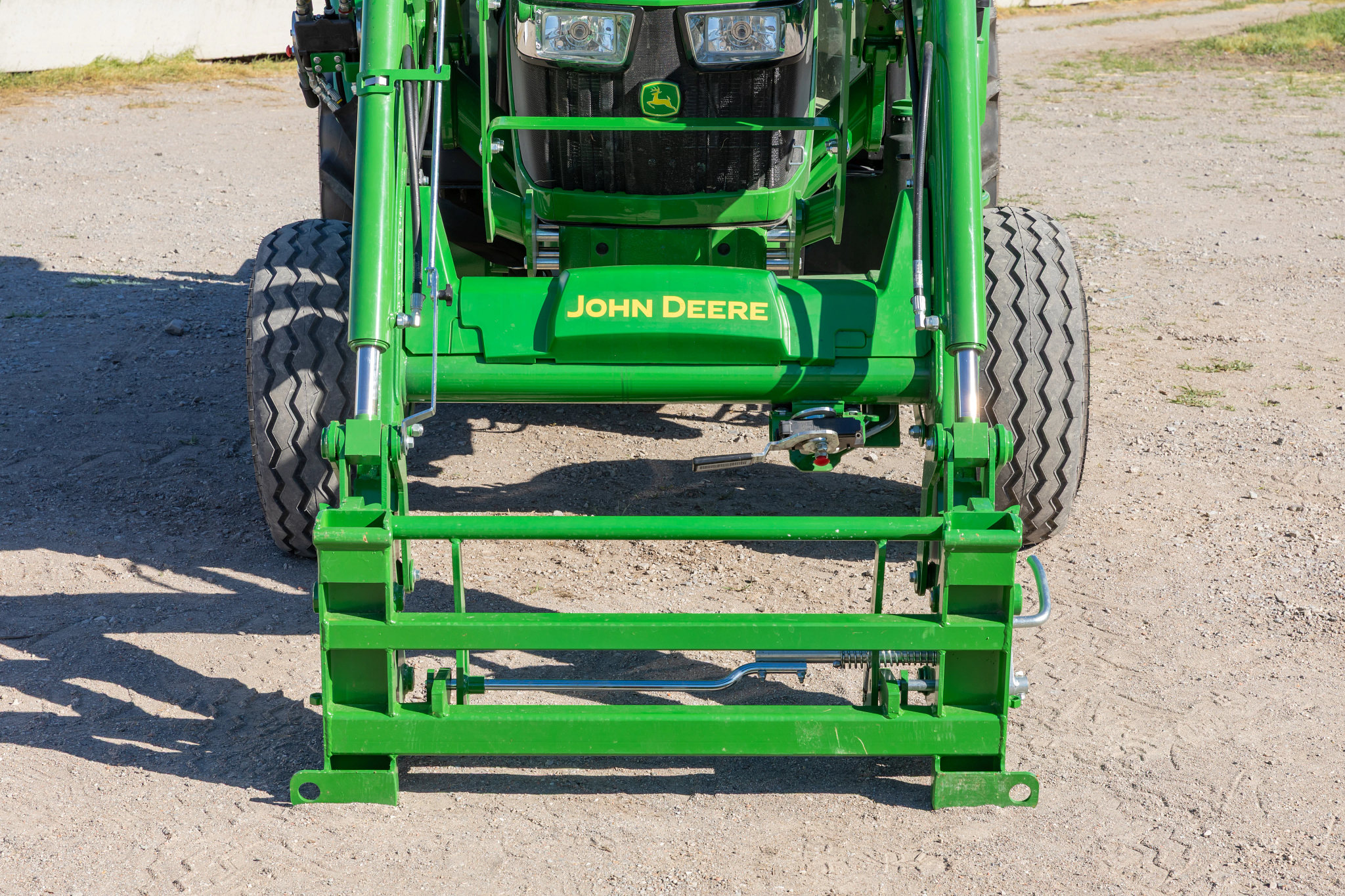

Front view of a DA21G Quick-Attach Carrier Adapter on a 5075E Tractor sitting in a dirt lot

With a 4000-lb (1814.4-kg) capacity, the DA21G Quick Attach Carrier Adapter supports robust operations on tractors up to 125 hp (99.2 kW). Its durable construction ensures reliable performance and longevity in demanding agricultural environments.

Specifications

Dimensions

Overall Height51.3 cm
Overall Height20.2 in.
Overall Width125.5 cm
Overall Width49.4 in.
Increased Loader Length11.2 cm
Increased Loader Length4.4 in.

Weight

Operational Weight46.3 kg
Operational Weight102 lb.

Warranty

Warranty Time Period1 year

Attachment Carrier

Current Series Style520M (NSL/MSL), 540M (NSL/MSL), 540R (MSL), H310 (NSL/MSL)

Tractor Compatibility

Maximum Tractor Power93.21 kW
Maximum Tractor Power125 hp

Carrier adapter capacity

Carrier Adapter Capacity1814 kg
Carrier Adapter Capacity4000 lb.
