John Deere CS1384
Double tap to zoom
CS1384
Tractor Attachments and Implements
Overview:

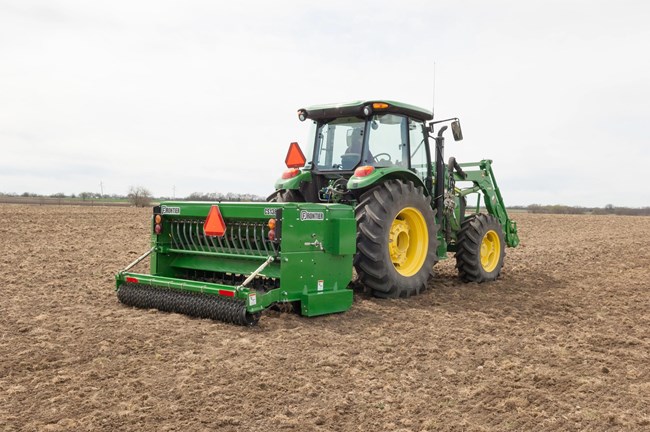

The Frontier CS1384 Conservation Seeder is designed for efficient seeding in conservation, pasture, and turf applications.
- Working Width: 7 ft. (2.1 m)
- Seedboxes Available in Multiple Configurations
- Rear Cultipacker Ensures Good Seed-to-Soil Contact
- iMatch™ Compatible
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

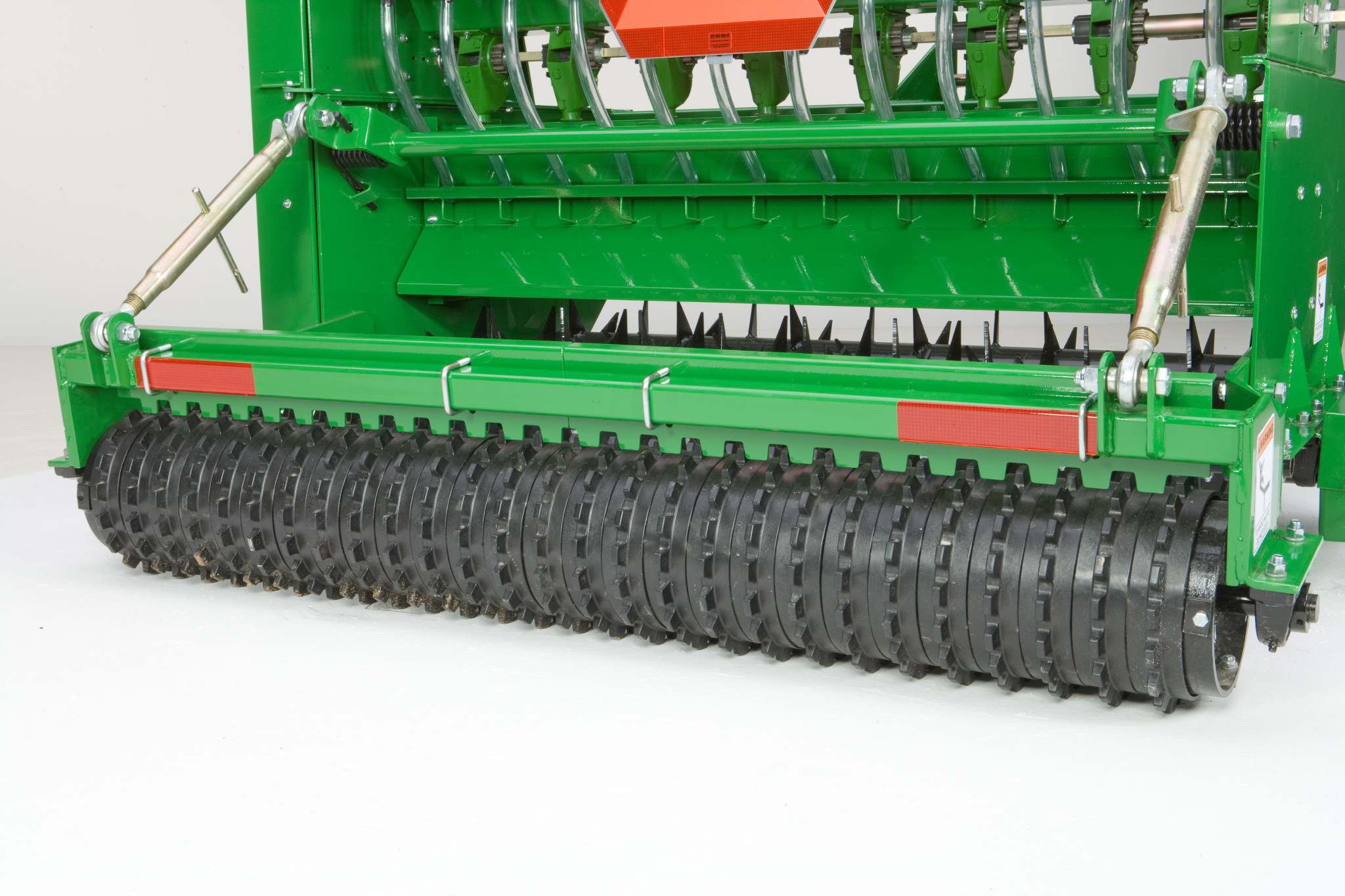

Rear Cultipacker Ensures Good Seed-to-Soil Contact
The rear cultipacker compresses and levels the seedbed, ensuring optimal seed-to-soil contact. With options of corrugated reinforced nylon and cast iron, and a torque arm for constant pressure, it enhances seedbed preparation.

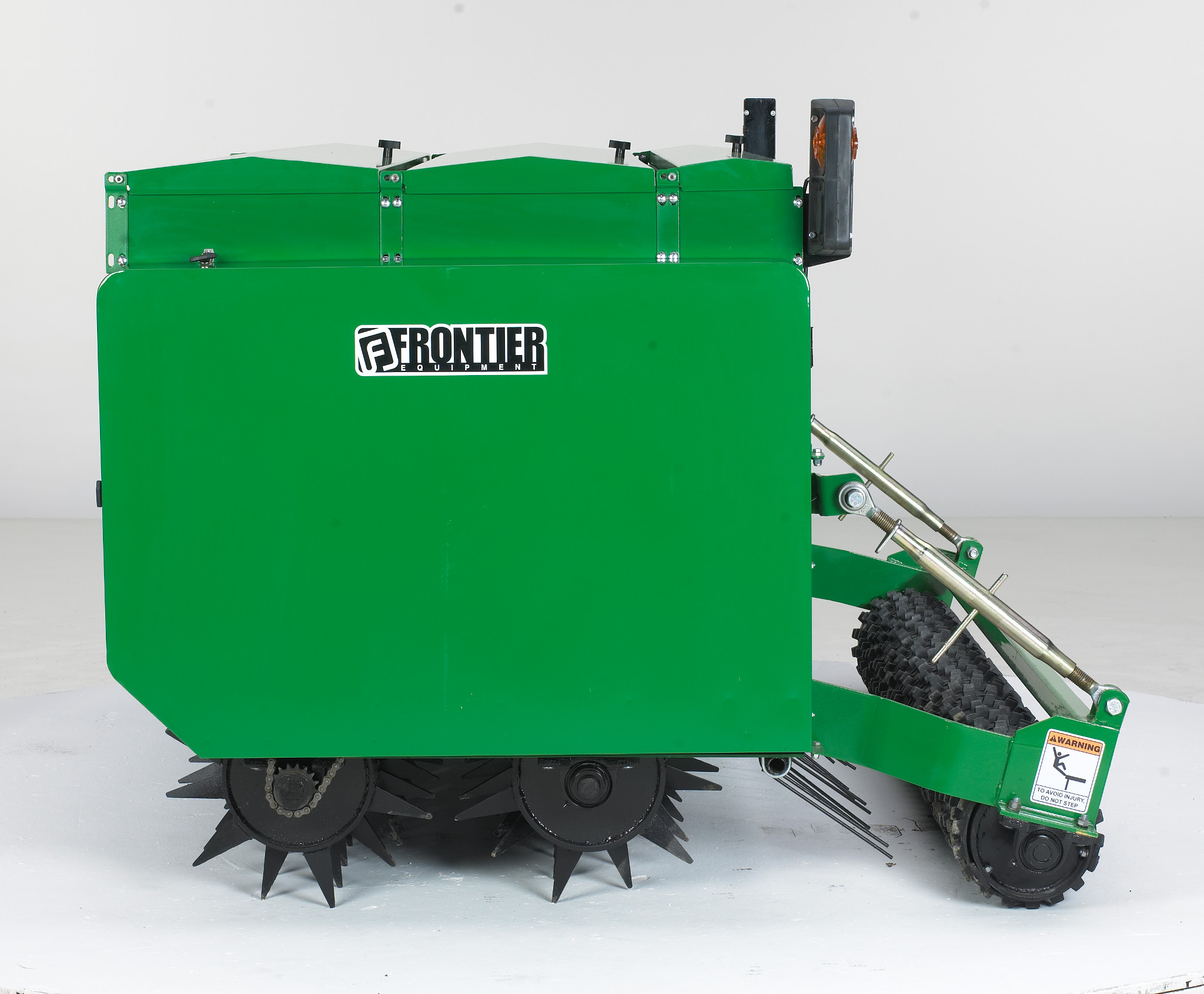

Multiple Seedbox Configurations
CS Series seeders offer multiple seedbox configurations, including standard large-grain, native grass, small-seed legume, and fertilizer boxes, supporting diverse seeding needs and even enabling soil aeration and dethatching by disengaging boxes.

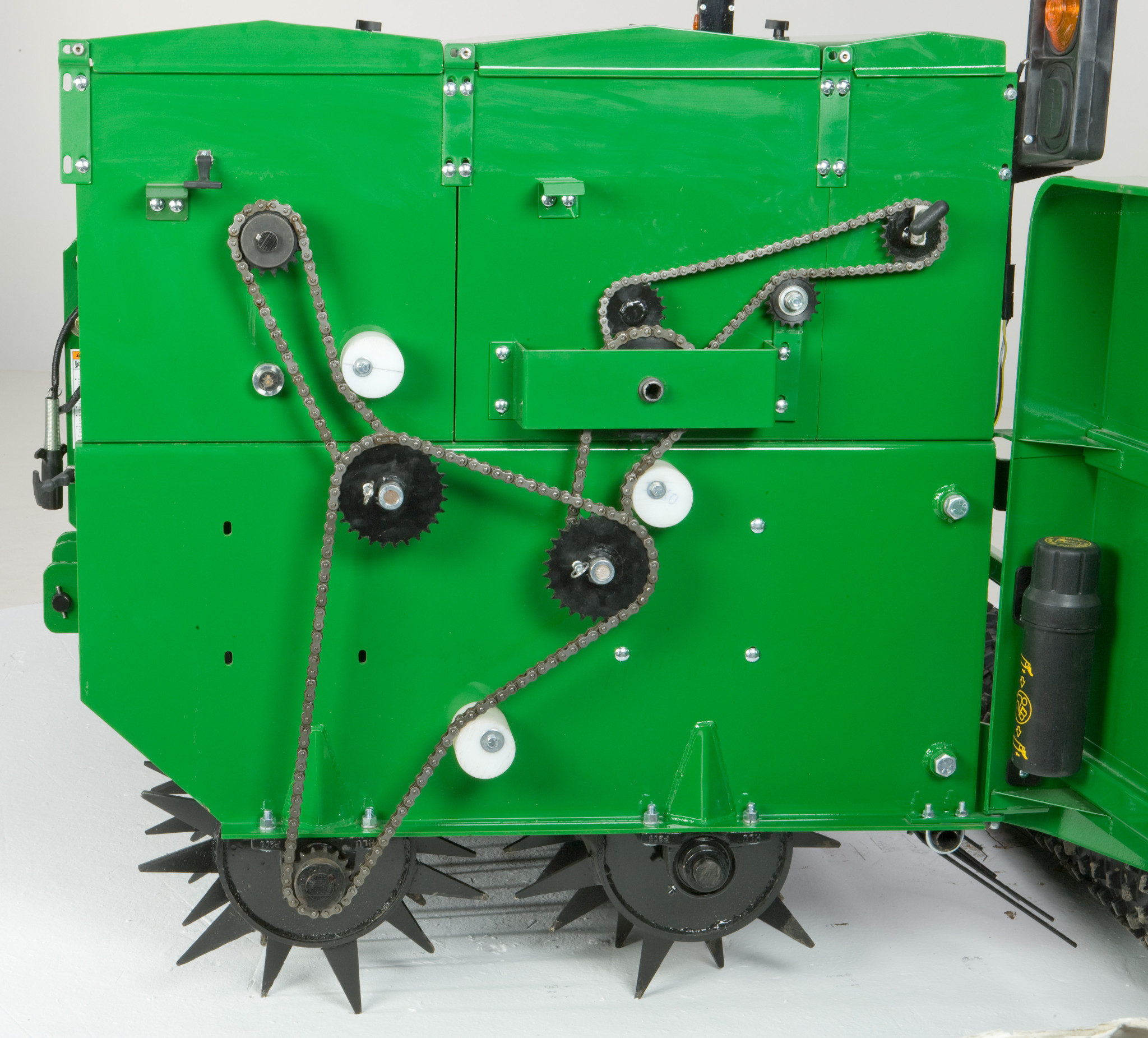

Control the Ground Speed with Ground-Driven Spiked Rollers
The CS Series Seeders feature ground-driven spiked rollers allowing accurate ground speed control by turning the rear roller 40% faster. This enables precise seeding in both new and existing grass or pasture beds.
Specifications
Box Capacity
| Large Seed Box Capacity | 0.2907 m³ |
| Large Seed Box Capacity | 8.25 bu |
| Legume, Small Seed Box Capacity | 0.0747 m³ |
| Legume, Small Seed Box Capacity | 2.12 bu |
| Fertilizer Box Capacity | 0.2907 m³ |
| Fertilizer Box Capacity | 8.25 bu |
| Native Grass Seed Box Capacity | 8.25 bu |
| Native Grass Seed Box Capacity | 0.2907 m³ |
Roller
| Rear Spike Outside Diameter | 50 cm |
| Nylon Rear Cultipacker | Standard |
| Rear Spike Outside Diameter | 19.75 in. |
| Rear Spike (Quantity) | 150 |
| Front Spike (Quantity) | 132 |
| Spike Material | AR-500 steel |
| Front Spike Outside Diameter | 19.75 in. |
| Front Spike Outside Diameter | 50 cm |
| Cast Iron Rear Cultipacker | Optional |
Setup Time
| Setup Time Labor Hour | 1 hr |
Dimensions
| Unit Height | 54 in. |
| Unit Height | 137 cm |
| Unit Length | 193 cm |
| Unit Length | 76 in. |
| Working Width | 213 cm |
| Working Width | 84 in. |
| Overall Width | 98 in. |
| Overall Width | 249 cm |
Tractor Compatibility
| Minimum Power | 50 hp |
| Minimum Power | 37 kW |
Drive ratio
| Spike Roller Drive Ratio | 15:20 |
| Seed Box Drive Ratio | 17:28 |
Weight
| Stainless Steel Fertilizer Box Weight | 104.8 kg |
| Stainless Steel Fertilizer Box Weight | 231 lb. |
| Second Large Seed Box Weight | 231 lb. |
| Native Grass Box Weight | 321 lb. |
| Base Machine Weight | 948 kg |
| Second Large Seed Box Weight | 104.8 kg |
| Native Grass Box Weight | 145.6 kg |
| Base Machine Weight | 2090 lb. |
| Small Seed Box Weight | 86 lb. |
| Small Seed Box Weight | 39 kg |
| Cast Iron Wheels Weight | 111.1 kg |
| Cast Iron Wheels Weight | 245 lb. |
Hitch
| 3-Point Type Hitch | Category 1, Category 2 |
| Quik-Coupler | Category 2 |
Warranty
| Warranty Time Period | 1 year |
