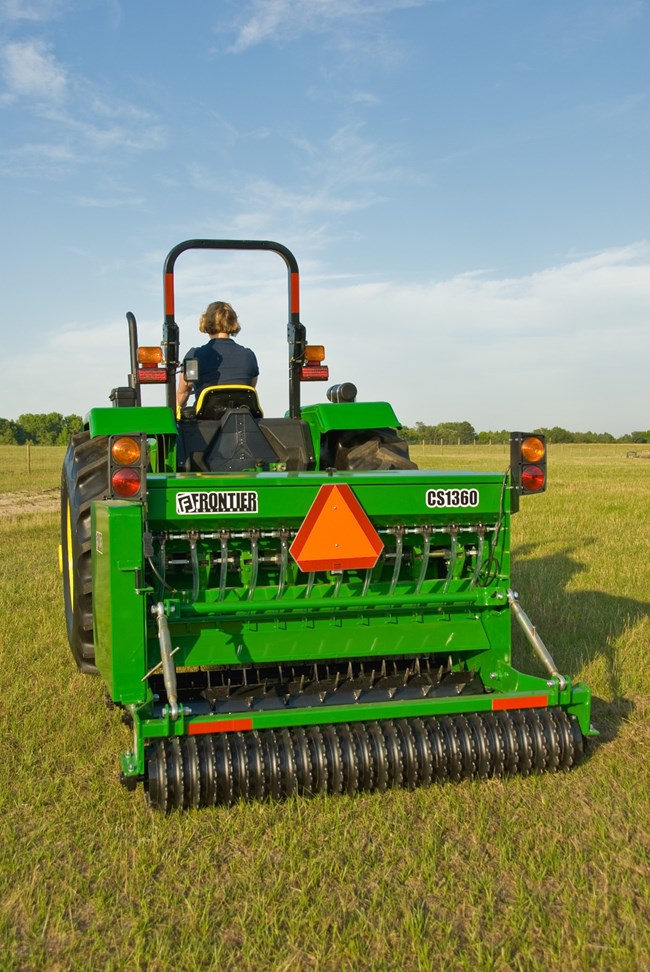

John Deere CS1360

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / CS1360

Double tap to zoom



Features

Control the Ground Speed with Ground-Driven Spiked Rollers

Side view of a green seeding machine showing an exposed chain‑and‑sprocket drive system with gears, idler wheels, and tensioners, above spiked ground‑engaging wheels

The CS Series Seeders feature ground-driven spiked rollers allowing accurate ground speed control by turning the rear roller 40% faster. This enables precise seeding in both new and existing grass or pasture beds.

Multiple Seedbox Configurations

Left side studio view of CS Conservation Seeder showing the seedbox, spiked rollers, and rear cultipacker

CS Series seeders offer multiple seedbox configurations, including standard large-grain, native grass, small-seed legume, and fertilizer boxes, supporting diverse seeding needs and even enabling soil aeration and dethatching by disengaging boxes.

Rear Cultipacker Ensures Good Seed-to-Soil Contact

Rear right studio view of the rear cultipacker on CS13 Conservation Seeder

The rear cultipacker compresses and levels the seedbed, ensuring optimal seed-to-soil contact. With options of corrugated reinforced nylon and cast iron, and a torque arm for constant pressure, it enhances seedbed preparation.

Specifications

Box Capacity

Large Seed Box Capacity0.123 m³
Large Seed Box Capacity3.5 bu
Legume, Small Seed Box Capacity0.529 m³
Legume, Small Seed Box Capacity1.5 bu
Fertilizer Box Capacity0.123 m³
Fertilizer Box Capacity3.5 bu
Native Grass Seed Box Capacity3.5 bu
Native Grass Seed Box Capacity0.123 m³

Roller

Rear Spike Outside Diameter40 cm
Nylon Rear CultipackerStandard
Rear Spike Outside Diameter15.75 in.
Rear Spike (Quantity)114
Front Spike (Quantity)72
Spike MaterialAR-500 Steel
Front Spike Outside Diameter15.75 in.
Front Spike Outside Diameter40 cm
Cast Iron Rear CultipackerOptional

Hitch

3-Point Type HitchCategory 1, Category 2
iMatch™ CompatibleYes
Quik-CouplerCategory 2

Setup Time

Setup Time Labor Hour1 hr

Dimensions

Unit Height48 in.
Unit Height122 cm
Unit Length170 cm
Unit Length67 in.
Working Width152 cm
Working Width60 in.
Overall Width73 in.
Overall Width185 cm

Tractor Compatibility

Minimum Power30 hp
Minimum Power26 kW

Drive ratio

Spike Roller Drive Ratio15:22
Seed Box Drive Ratio15:28

Weight

Stainless Steel Fertilizer Box Weight66.7 kg
Stainless Steel Fertilizer Box Weight147 lb.
Second Large Seed Box Weight147 lb.
Native Grass Box Weight207 lb.
Base Machine Weight614.6 kg
Second Large Seed Box Weight66.7 kg
Native Grass Box Weight93.9 kg
Base Machine Weight1355 lb.
Small Seed Box Weight65 lb.
Small Seed Box Weight29.5 kg
Cast Iron Wheels Weight81.6 kg
Cast Iron Wheels Weight180 lb.

Warranty

Warranty Time Period1 year
