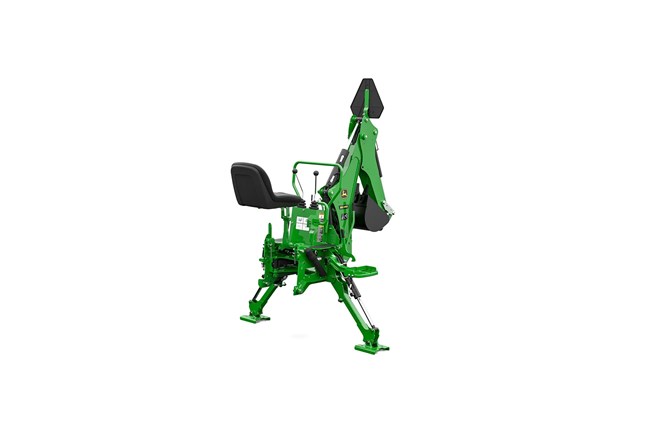

John Deere BH160

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / BH160

Double tap to zoom



Features

BH160 Backhoe Performance

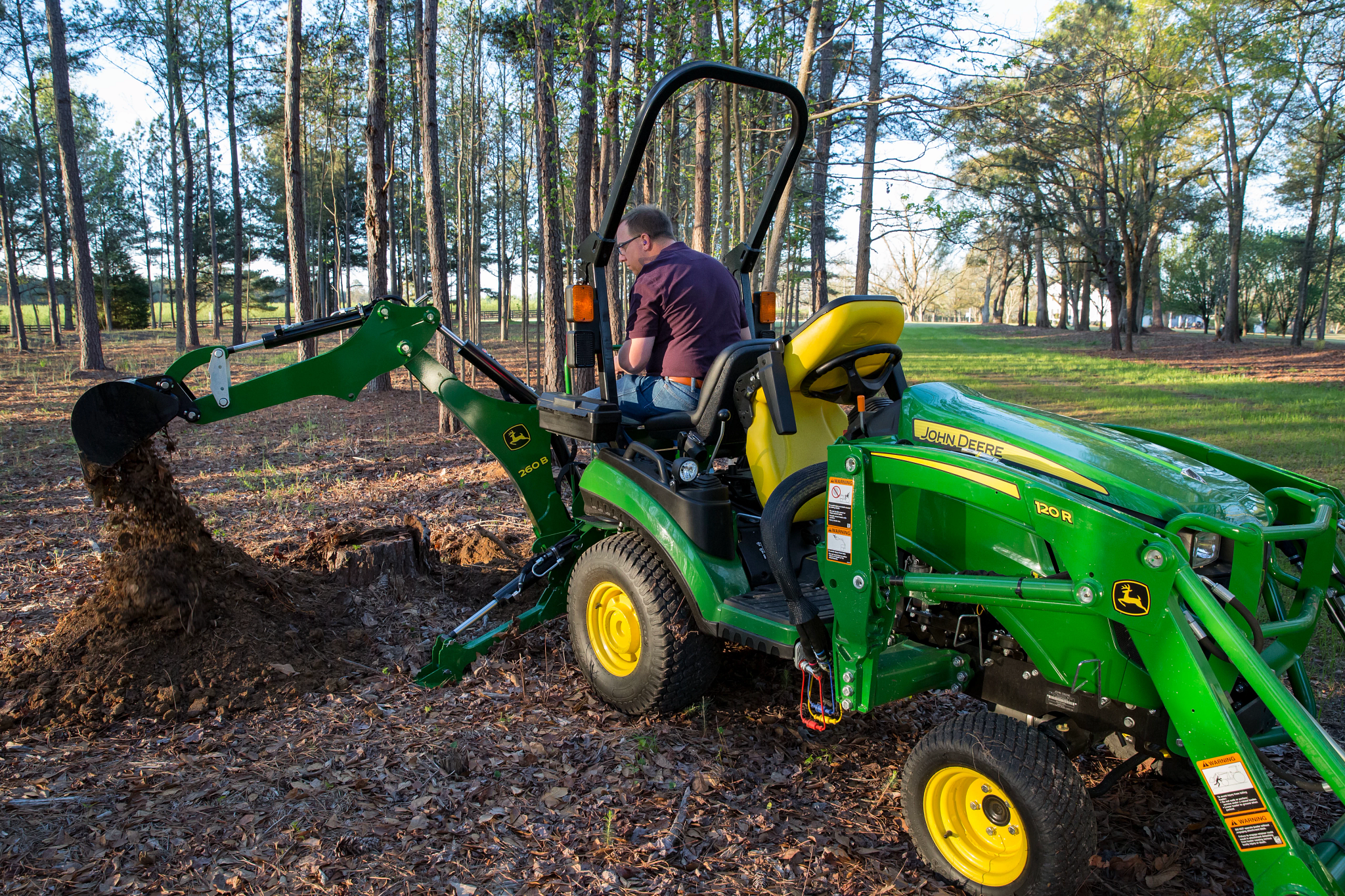

Backhoe in woods

The BH160 Backhoe is engineered to offer best‑in‑class performance at a competitive price, validated through benchmarking against similar models. It features a durable subframe, tool‑free installation, mid‑mower compatibility, multiple bucket options, and protective control boots. Optional accessories—including stabilizer pads and mechanical or hydraulic thumbs—enhance versatility for various heavy‑lifting and trenching tasks.

Backhoe Operator Comfort

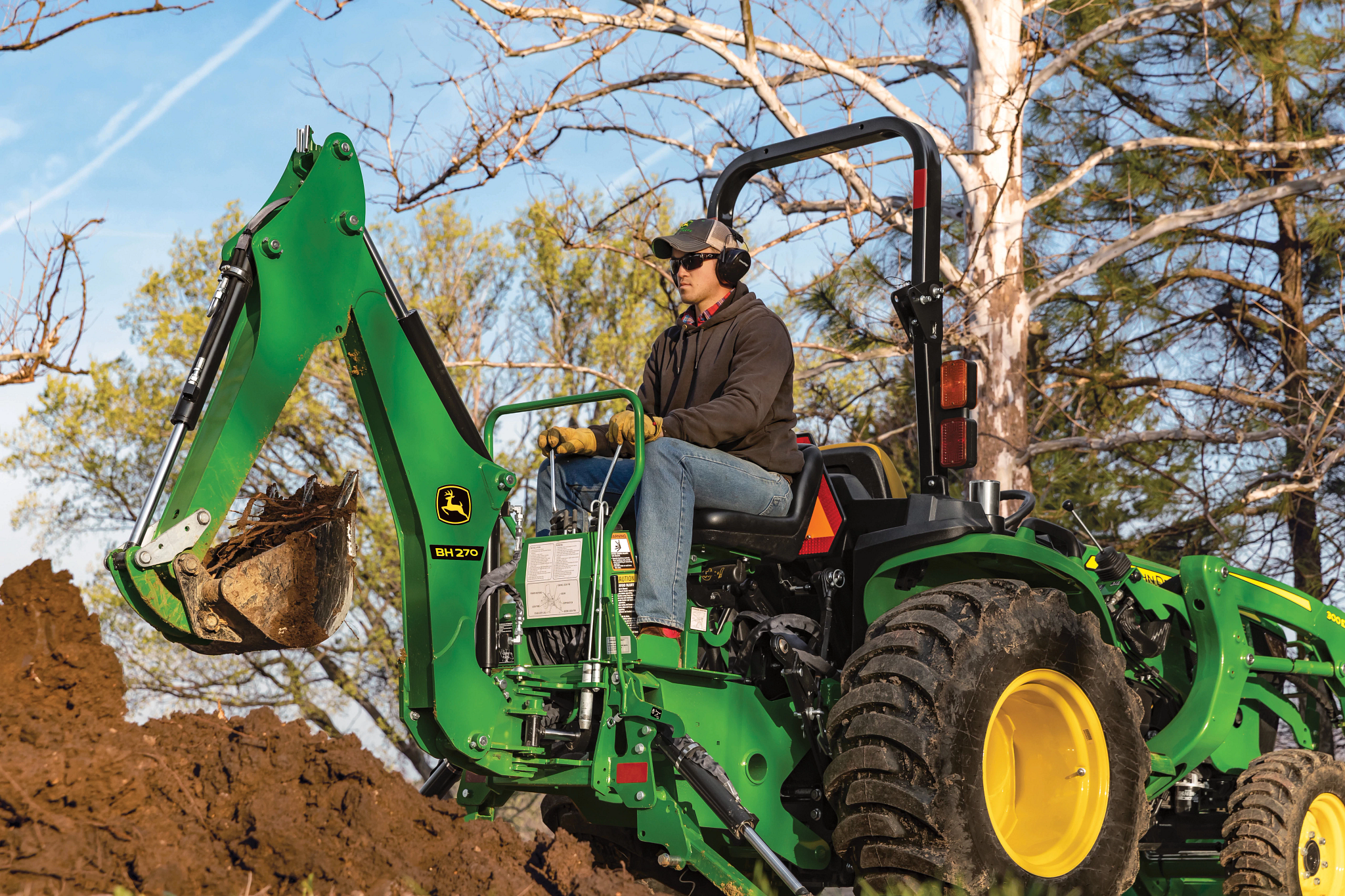

Backhoe in the woods with operator

The BH160 and BH270 Backhoes are built to maximize operator comfort throughout long workdays. A stable 3‑point stance, accessible grab handles, and a large boarding step make mounting and dismounting easier, while a high‑back seat and convenient access to stabilizers and locks enhance ease of use. Non‑slip grips on the operator platform further support safe, comfortable operation.

Backhoe Buckets

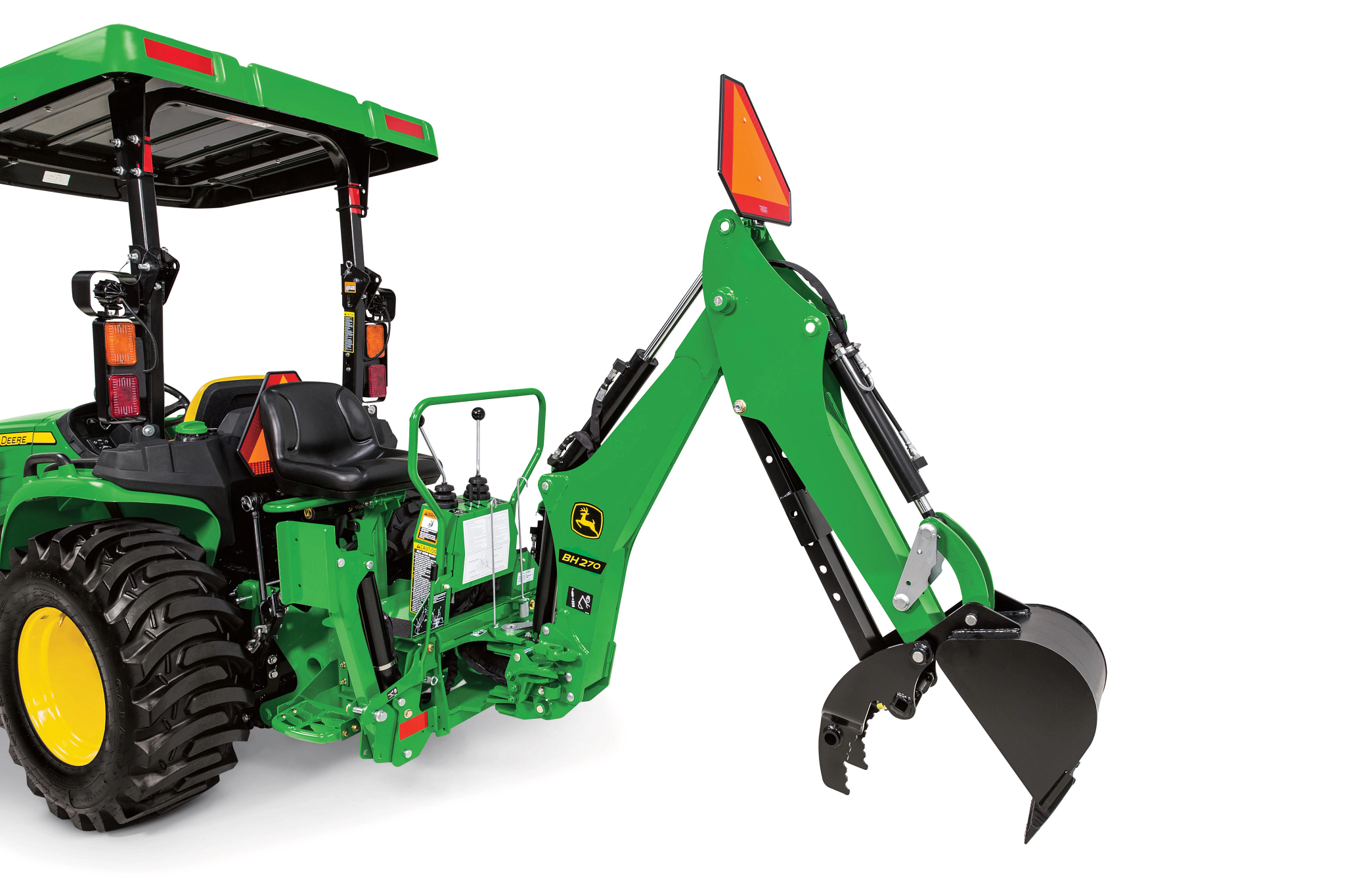

Backhoe bucket studio view

Buckets are available in a variety of sizes to fit the job for greater productivity. The Backhoe can be ordered with 20.3-cm (8-in.), 30.5-cm (12-in.), and 40.6-cm (16-in.) buckets. Replaceable bucket teeth are available.

Specifications

Dimensions

Digging Depth1.9 m
Digging Depth6 ft
Loading Height (Bucket at 60 Degrees)1.5 m
Loading Height (Bucket at 60 Degrees)5 ft
Reach From Center Line of Swing Pivot2.6 m
Reach From Center Line of Swing Pivot8 ft
Transport Height1.7 m
Transport Height6 ft
Loading Reach (Bucket at 60 Degrees)0.8 m
Loading Reach (Bucket at 60 Degrees)2 ft
Transport Overhang0.9 m
Transport Overhang3 ft
Undercut40 cm
Undercut5 in.
Stabilizer TypeHydraulic
Stabilizer Spread Width - Up1.5 m
Stabilizer Spread Width - Up4 ft
Stabilizer Spread Width - Down1.9 m
Stabilizer Spread Width - Down6 ft

Backhoe

Swing Arc150 degree (angle)
Bucket Rotation180 degree (angle)
Boom Lift Capacity129 kg
Boom Lift Capacity285 lb.
SAE Dipperstick Digging Force5280 N
SAE Dipperstick Digging Force1187 lbf
SAE Bucket Digging Force9056 N
SAE Bucket Digging Force2036 lbf
Angle of Departure20 degree (angle)

Bucket

Bucket Widths20 cm
Bucket Widths8 in.
SAE Struck Capacity0.2 m (8 in.) - 0.011 m3 (0.42 cu ft); 0.3 m (12 in.) - 0.019 m3 (0.66 cu ft); 0.4 m (16 in.) - 0.025 m3 (0.9 cu ft)
Heaped Capacity0.2 m (8 in.) - 0.013 m3 (0.46 cu ft); 0.3 m (12 in.) - 0.022 m3 (0.76 cu ft); 0.4 m (16 in.) - 0.03 m3 (1.06 cu ft)
Shipping Weight0.2 m (8 in.) - 17 kg (38 lb); 0.3 m (12 in.) - 22 kg (49 lb); 0.4 m (16 in.) - 25 kg (55 lb)

Weight

Weight With 0.4-m (16-in.) Bucket309 kg
Weight With 0.4-m (16-in.) Bucket682 lb.
Weight With 0.4-m (16-in.) Bucket Including Subframe334 kg
Weight With 0.4-m (16-in.) Bucket Including Subframe736 lb.
