John Deere BB5048L
Double tap to zoom
BB5048L
Tractor Attachments and Implements
Overview:

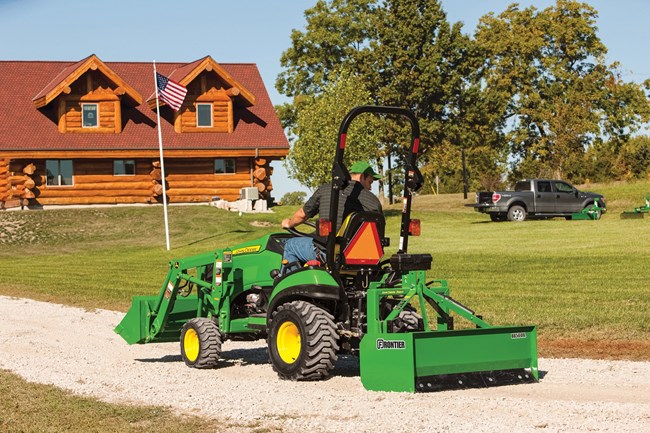

The Frontier™ BB5048L economy-duty box blade offers efficient grading, leveling, and backfilling capabilities making it ideal for maintaining driveways, landscaping, and general land management tasks.
- Replaceable and Adjustable Ripper Shanks
- Working Width: 48 in. (121.9 cm)
- Replaceable and Reversible Blade
- Compatible With Category 1 or iMatch™ Hitches
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Adjustable and Replaceable Ripper Shanks
Heavy-duty ripper shanks with multiple adjustment holes provide versatility for various ground conditions. They can be easily adjusted for different penetration levels, making them ideal for chipping or deep digging.

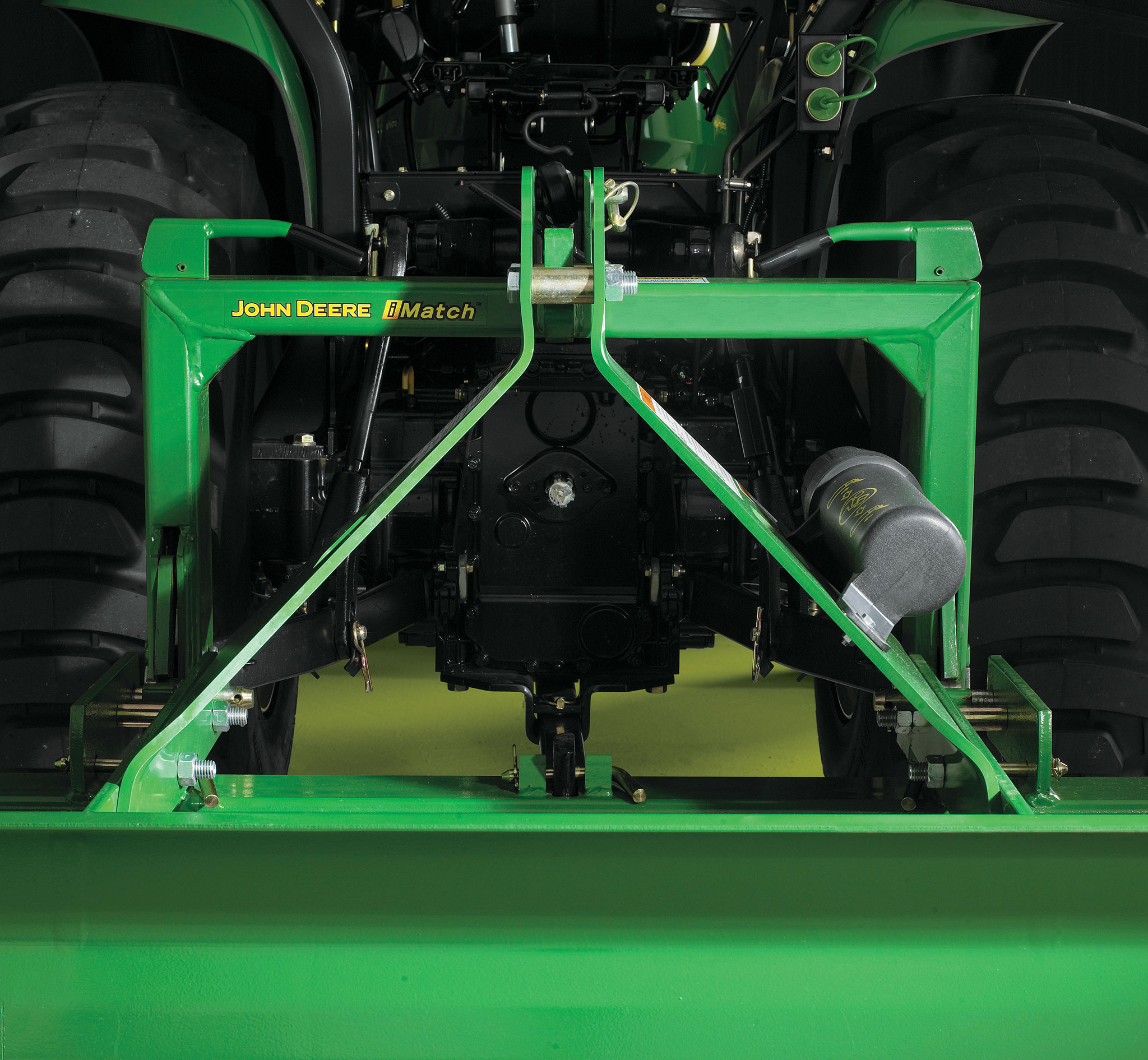

iMatch™ Quick-Hitch Compatible for Quick, Efficient Hookup
The iMatch™ Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.

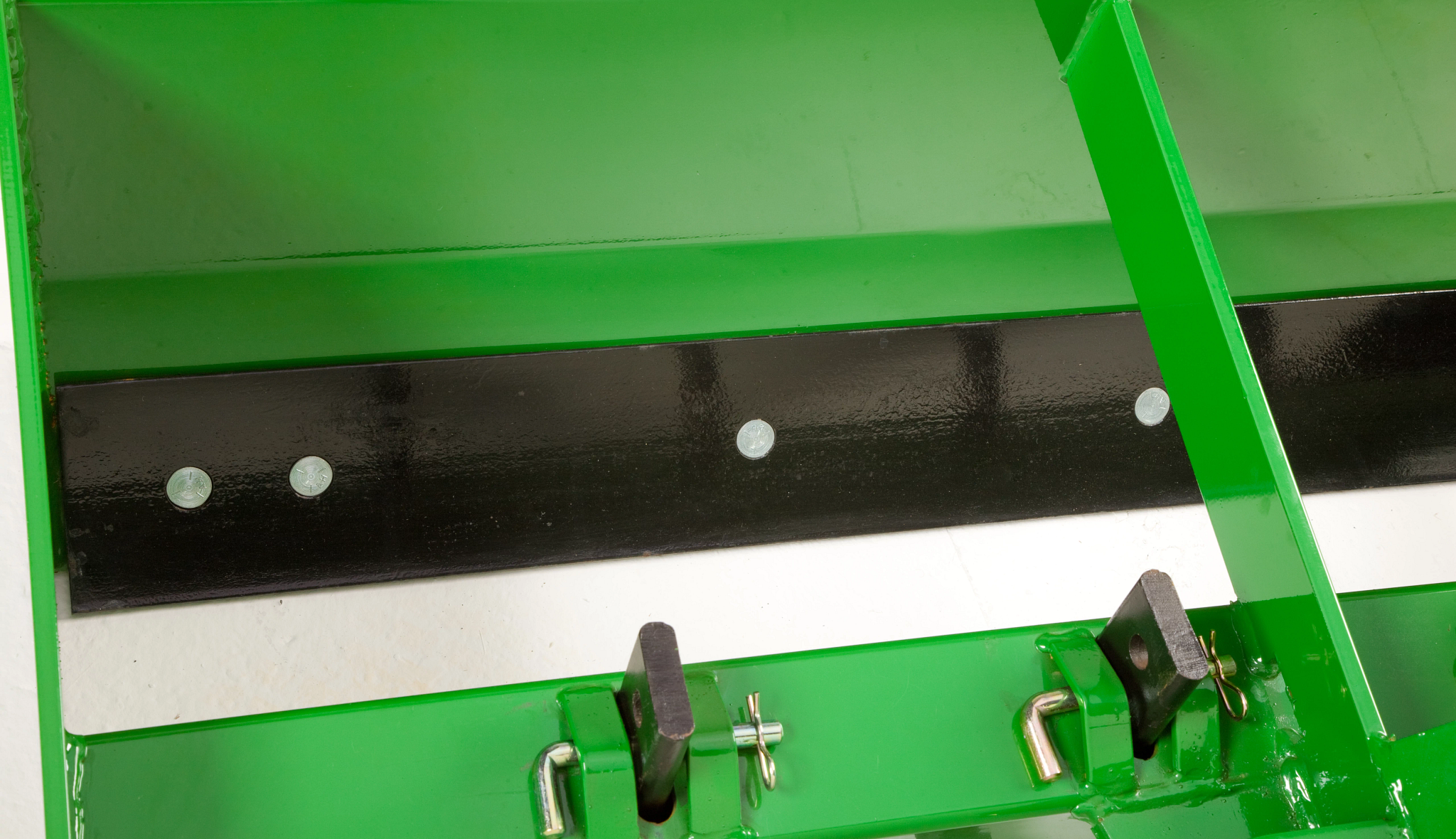

Cutting Edge Is Strategically Positioned for a Fine Finish
The BB50L Series Box Blade cutting edge ensures precise leveling and a fine finish. The reversible blade provides twice the wear life.
Specifications
Dimensions
| Endplate Thickness | 0.8 cm |
| Endplate Thickness | 0.313 in. |
| Unit Depth | 78.7 cm |
| Unit Height | 33 in. |
| Unit Depth | 31 in. |
| Unit Height | 83.8 cm |
| Working Width | 127 cm |
| Working Width | 50 in. |
| Moldboard Thickness | 0.188 in. |
| Moldboard Thickness | 0.48 cm |
Shipping
| Shipping Configuration | Two per crate |
Scarifier Shank and Beam
| Point Quantity | 4 |
| Tubular Scarifier Beam Size | 4x4x0.25 in. |
| Tubular Scarifier Beam Size | 10.16x10.16x0.64 cm |
| Shank Type | Four position with holes |
| Point Type | Hardened, crimped |
Weight
| Operating Weight | 163.3 kg |
| Operating Weight | 360 lb. |
| Shipping Weight | 797 lb. |
| Shipping Weight | 362 kg |
Cutting Edge
| Cutting Edge Quantity | 2 |
| Cutting Edge Size | 0.375x6 in. |
| Cutting Edge Size | 0.95x15.24 cm |
| Cutting Edge Reversible | Yes |
Paint
| Paint Color | John Deere green |
Setup Time
| Set-Up Time Labor Hours | 0.25 hr |
Tractor Compatibility
| PTO Power | 19 kW |
| PTO Power | 26 hp |
Tailgate
| Tailgate Type | Fixed |
Box
| Box Design | Box |
| Box Capacity | 10.65 cu ft |
| Box Capacity | 0.3 m³ |
Hitch
| Hitch Compatibility | Category 1 |
| iMatch™ Compatible (Category 1) | Yes |
Mast
| Mast Type | Bolt on |
Warranty
| Warranty Time Period | One year |
