John Deere BB2172

Double tap to zoom

BB2172

Tractor Attachments and Implements

Overview:

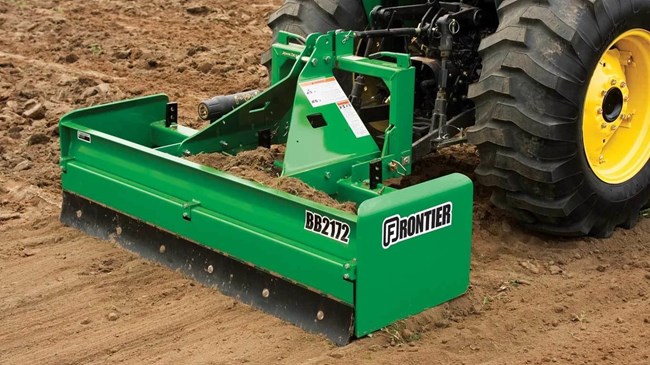

The BB2172 Medium Duty Box Blade is designed for versatility and durability, perfect for landscaping, soil preparation, and maintenance tasks, offering reliable performance and easy operation for a wide range of agricultural and construction applications.

Cutting Edge is Strategically Positioned
Floating Tailgate Helps in Rough Conditions
iMatch™ Compatible for Quick, Efficient Hookup
Scarifier has Three Depth Adjustments

Get a Quote

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features
Specifications

Features

Strategically Positioned Cutting Edge

Close-up of the lower edge of a box blade attachment, showing a black steel wear blade secured with bolts, resting on sandy ground

The BB Series Box Blade cutting edge ensures precise leveling and a fine finish. It is also reversible for twice the wear life.

iMatch™ Quick Hitch Compatible for Efficient Hookup

Green Frontier box blade attachment featuring multiple curved scarifier shanks, sitting behing a tractor hitch assembly ready to be hooked up

The iMatch™ Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.

Floating Tailgate Helps in Rough Conditions

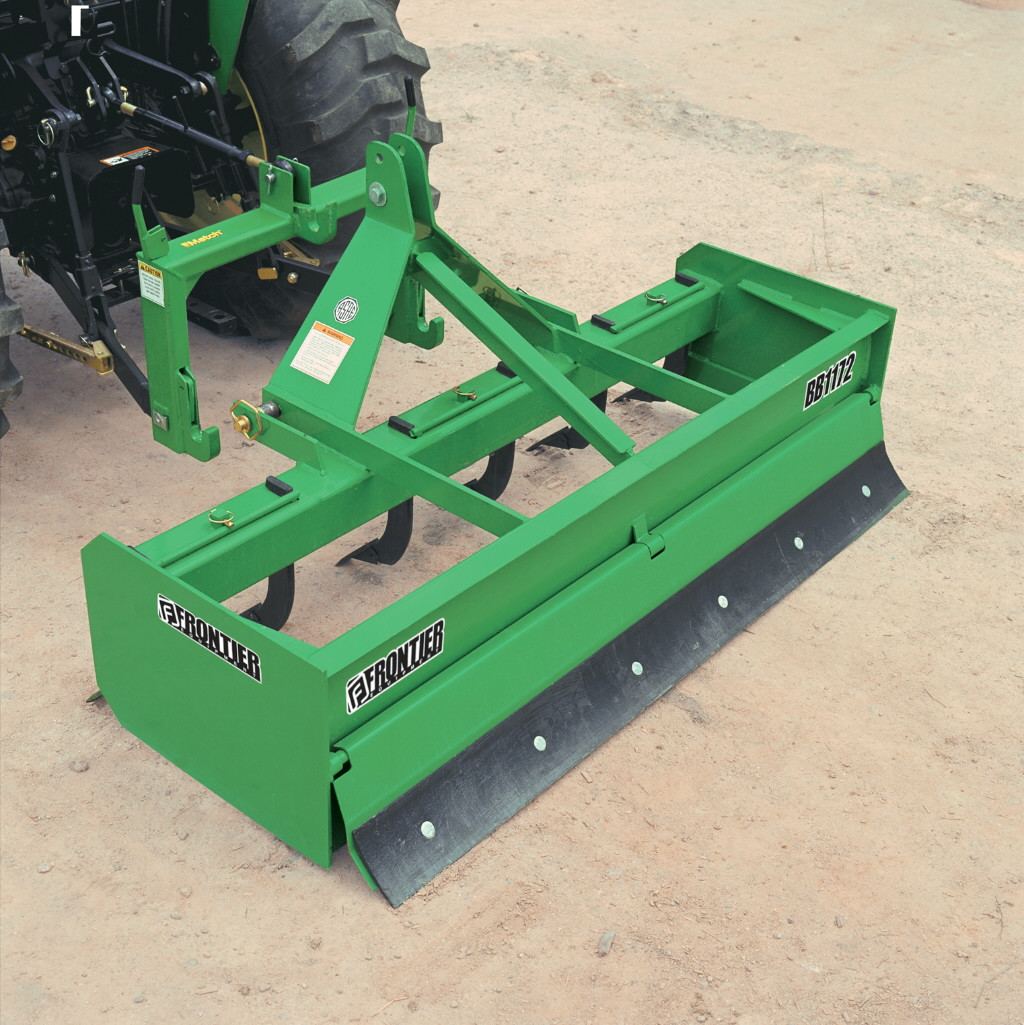

Rear view of Frontier BB1172 Box Blade attached to a tractor, showing the green frame, steel cutting edge, and floating tailgate resting on a dirt surface

The tailgate floats, allowing material to flow through the blade during heavy grading conditions.

Specifications

Dimensions

Endplate Thickness	1 cm
Endplate Thickness	0.375 in.
Unit Depth	78.7 cm
Unit Height	33.5 in.
Unit Depth	31 in.
Unit Height	85.1 cm
Working Width	182.9 cm
Working Width	72 in.
Moldboard Thickness	0.1875 in.
Moldboard Thickness	0.5 cm

Shipping

Shipping Configuration

One unit

Scarifier Shank and Beam

Point Quantity	6
Beam Reinforcement Bar Size	0.95x2.54 cm
Beam Reinforcement Bar Size	0.375x1 in.
Tubular Scarifier Beam Size	4x4x0.25 in.
Tubular Scarifier Beam Size	10.16x10.16x0.64 cm
Shank Type	Three position with holes
Point Type	Replaceable

Weight

Operating Weight	265.4 kg
Operating Weight	585 lb.
Shipping Weight	675 lb.
Shipping Weight	306.2 kg

Cutting Edge

Cutting Edge Quantity	2
Cutting Edge Size	0.5x6 in.
Cutting Edge Size	1.27x15.24 cm
Cutting Edge Reversible	Yes

Paint

Paint Color

JD Green

Setup Time

Set-Up Time Labor Hours

0.5 hr

Tractor Compatibility

PTO Power	52.5 kW
PTO Power	70 hp

Tailgate

Tailgate Type

Floating

Box

Box Design	Reinforced with formed edge end plates
Box Capacity	19 cu ft
Box Capacity	0.54 m³

Mast

Mast Type

Bolt on

Warranty

Warranty Time Period

1 year

Hitch

Hitch Compatibility

Category 1
