John Deere AY12G - 84 in.

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / AY12G - 84 in.

Double tap to zoom



Features

Strong Frame for Added Durability

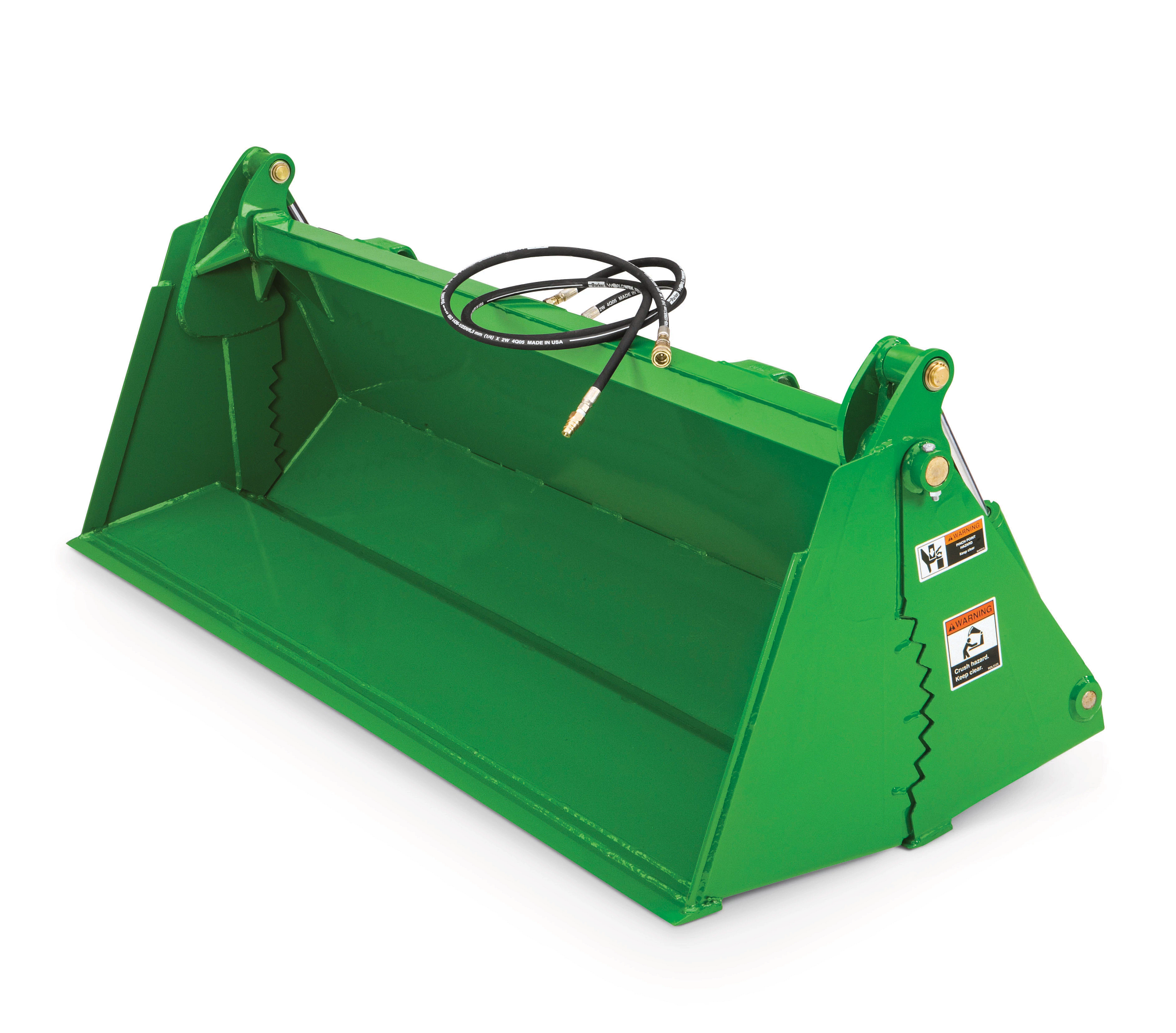

A green four-in-one bucket attachment with hydraulic connections and reinforced side panels is shown against a white background

The AY12 Series Four-in-One Bucket frame is built with welded components and high-tensile, heavy-gauge steel for maximum durability.

Serrated Edge for Secure Movement

Close-up of a green hydraulic 4-in-1 bucket attachment with serrated metal jaws, hydraulic hoses, and warning labels

The AY12 Series serrated edge firmly grasps material for secure movement.

Attachment is Quick and Easy

Attaching the four-in-one bucket to a John Deere loader is easy with its quick-change and global attaching systems. Just line up the loader's connecting points to the attachment frame and lock in place.

Specifications

Dimensions

Height50.8 in.
Height20 cm
Cutting Width84 in.
Cutting Width213.4 cm
Depth74.6 cm
Depth29.38 in.
Width213.4 cm
Width84 in.
Clam Opening88.3 cm
Clam Opening34.78 in.

Weight

Operational Weight460.4 kg
Operational Weight1015 lb.
Shipping Weight471.7 kg
Shipping Weight1040 lb.

Hydraulic Cylinders

Hydraulic Cylinders TypeTwo double-acting

Clamp force

Clamp Force Closed13567.1 N
Clamp Force Closed3050 lb-ft
Clamp Force Open21413.7 N
Clamp Force Open4814 lb-ft

Warranty

Warranty Time Period1 year

Attachment Carrier

Current Series StyleGlobal

Setup Time

Set-Up Time Labor Hours0.25 hr
