John Deere AV57G

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / AV57G

Double tap to zoom



Features

Quick and Easy Connection to Loader

Rear left studio view of a green AV56G Series Root Grapple

Attaching the AV50 Series Root Grapple to a John Deere loader is easy with quick-change attaching systems. Just line up the loader's connecting points to the attachment frame and lock it in place.

Heavy-Duty Design to Tackle Tough Jobs

Field view of AV50 Root Grapple on 5E Tractor with log in the air

The AV50 Series Hydraulic Root Grapple is a lightweight, full-width tool designed for versatile tasks like leveling, root removal, and tree handling, offering strong clamping and improved balance without sacrificing lift capacity.

Stability for Easy Compact Storage

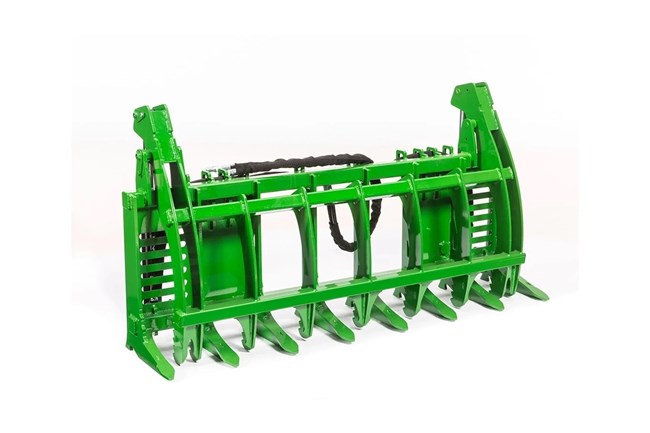

Studio view of a AV50 Series Grapple

The base frame and welded feet provide the AV50 Series with a stable surface so the grapple can be easily stored in the upright position while not being used. In addition to providing stability for improved storage, the heal of the boot will aid in ripping out roots.

Specifications

Dimensions

Overall Base Width84.4 in.
Overall Base Width214.4 cm
Top Clamp Width76 in.
Top Clamp Width193 cm
Depth (Closed)19.5 in.
Depth (Closed)49.5 cm
Height (Closed)37 in.
Height (Closed)94 cm
Height (Open)46.5 in.
Height (Open)118.1 cm
Grapple Opening44 in.
Grapple Opening111.8 cm
Weight670 lb.
Weight303.9 kg
Shipping Weight1408 lb.
Shipping Weight638.7 kg
Bottom Frame Steel Thickness0.5 in.
Bottom Frame Steel Thickness1.3 cm

Grapple Tines

Upper Tines - Quantity8
Lower Tines - Quantity9
Grapple Tine Spacing10.5 in.
Grapple Tine Spacing26.3 cm
Bottom Tine Working Length12 in.
Bottom Tine Working Length30.5 cm

Capacity

Grapple Clamping Force5645 lb-ft
Grapple Clamping Force25.1 N
Maximum Clamping Diameter43.4 in.
Maximum Clamping Diameter110.2 cm
Minimum Clamping Diameter1.5 in.
Minimum Clamping Diameter3.8 cm

Tractor Requirements

Tractor HP Min./Max.50-140 hp
Tractor HP Min./Max.37.3-104.4 kW

Hydraulic Cylinders

Type2″ bore x 12″ stroke x 1-1/4″ rod
Quantity2 cylinders
Max Hydraulic Pressure3000 psi
Max Hydraulic Pressure207 bar

Grapple Clamping Force

Maximum5645 lb-ft
Maximum25.1 N

Warranty

Time Period1 Year Warranty

Loader Interface

Compatibility500, 600 Series (Global Carrier)
