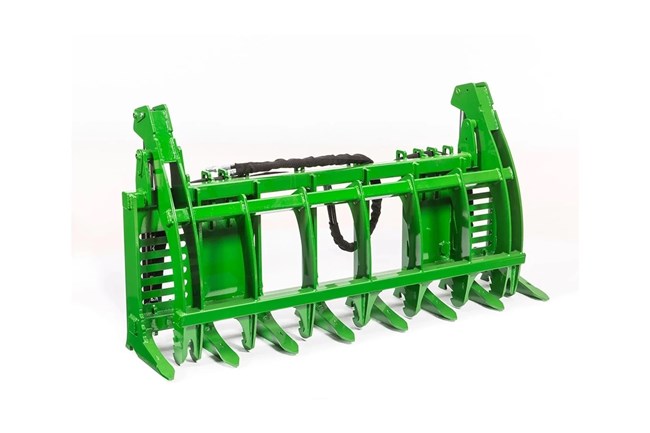

John Deere AV55H
Double tap to zoom
AV55H
Tractor Attachments and Implements
Overview:
The Frontier™ AV55H Root Grapple makes land clean up easy. Its durable construction easily handles brush, roots, logs, and other debris.
- 64-in. Width
- Quick and Easy Connection
- Heavy-Duty Design to Tackle Tough Jobs
- Hydraulics Mounted for Improved Protection
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

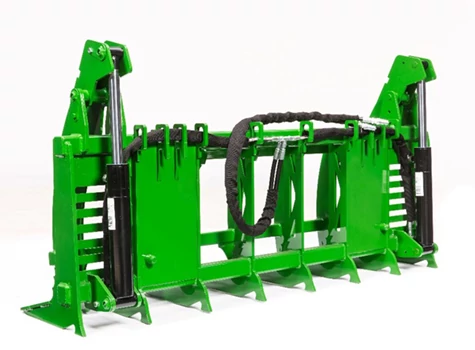

Quick and Easy Connection to Loader
Attaching the AV50 Series Root Grapple to a John Deere loader is easy with quick-change attaching systems. Just line up the loader's connecting points to the attachment frame and lock it in place.

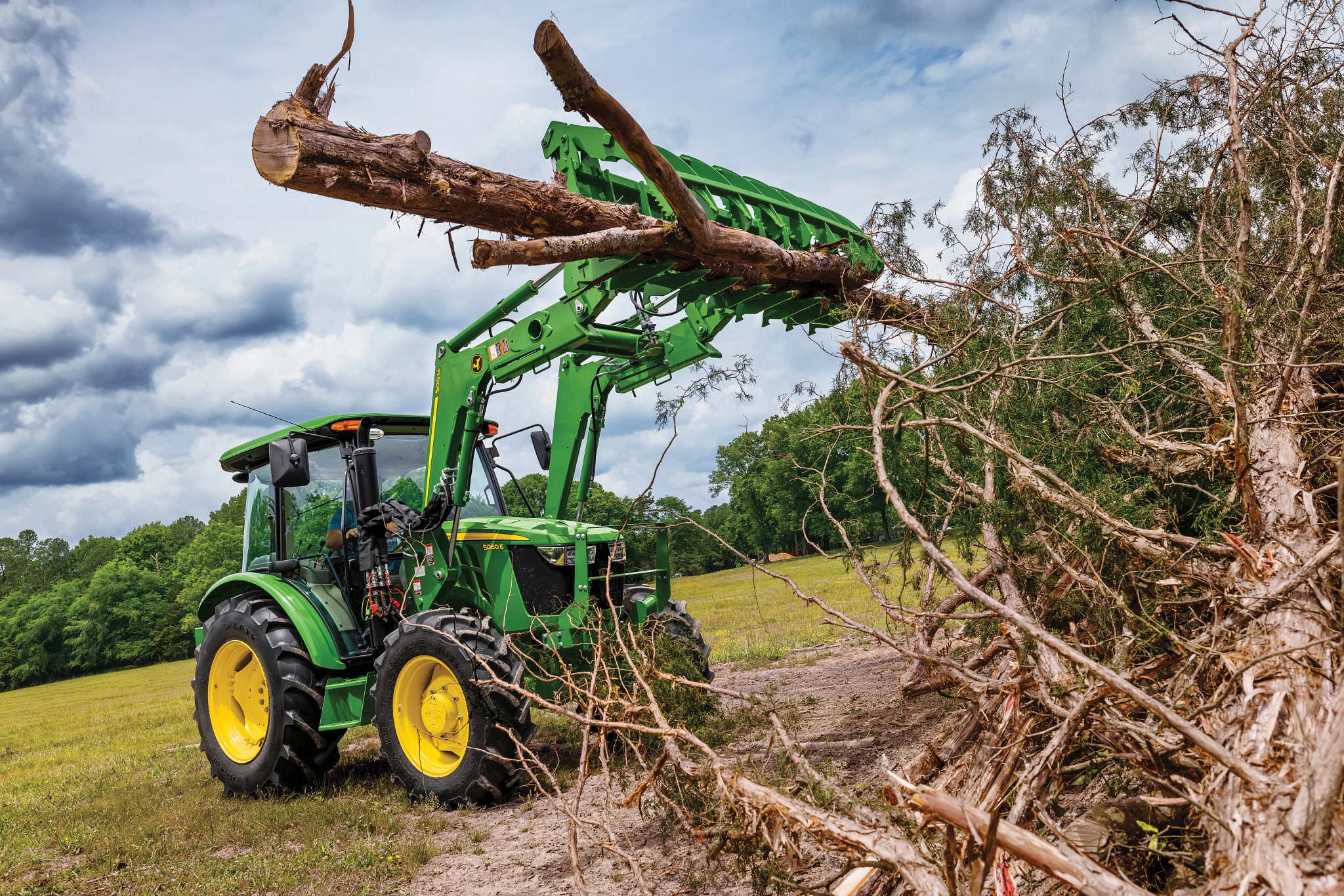

Heavy-Duty Design to Tackle Tough Jobs
The AV50 Series Hydraulic Root Grapple is a lightweight, full-width tool designed for versatile tasks like leveling, root removal, and tree handling, offering strong clamping and improved balance without sacrificing lift capacity.
Stability for Easy Compact Storage
The base frame and welded feet provide the AV50 Series with a stable surface so the grapple can be easily stored in the upright position while not being used. In addition to providing stability for improved storage, the heal of the boot will aid in ripping out roots.
Specifications
Dimensions
| Overall Base Width | 64.25 in. |
| Overall Base Width | 163.2 cm |
| Top Clamp Width | 58 in. |
| Top Clamp Width | 147.3 cm |
| Depth (Closed) | 19.5 in. |
| Depth (Closed) | 49.5 cm |
| Height (Closed) | 37 in. |
| Height (Closed) | 94 cm |
| Height (Open) | 46.5 in. |
| Height (Open) | 118.1 cm |
| Grapple Opening | 44 in. |
| Grapple Opening | 111.8 cm |
| Weight | 480 lb. |
| Weight | 217.7 kg |
| Shipping Weight | 1018 lb. |
| Shipping Weight | 461.8 kg |
| Bottom Frame Steel Thickness | 0.5 in. |
| Bottom Frame Steel Thickness | 1.3 cm |
Grapple Tines
| Upper Tines - Quantity | 6 |
| Lower Tines - Quantity | 7 |
| Grapple Tine Spacing | 10.5 in. |
| Grapple Tine Spacing | 26.3 cm |
| Bottom Tine Working Length | 12 in. |
| Bottom Tine Working Length | 30.5 cm |
Tractor Requirements
| Tractor HP Min./Max. | 24-65 hp |
| Tractor HP Min./Max. | 17.9-48.5 kW |
Hydraulic Cylinders
| Type | 2-in. bore x 12-in. stroke x 1-1/4-in. rod |
| Quantity | 2 cylinders |
| Max Hydraulic Pressure | 3000 psi |
| Max Hydraulic Pressure | 21.1 bar |
Capacity
| Grapple Clamping Force | 4751 lb-ft |
| Grapple Clamping Force | 21.1 N |
Warranty
| Time Period | 1-year warranty |
Loader Interface
| Compatibility | 300, 400 Series (JD carrier) |
