John Deere AV20F

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / AV20F

Double tap to zoom



Features

Greaseable Pivot Points

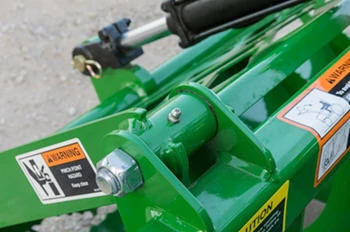

Close-up of AV20F Series Root Grapple Greaseable Pivot Points

All pivot points of the AV20F Series Root Grapple are greaseable, ensuring easy maintenance and long-lasting performance. This feature helps maintain the grapple in optimal working condition, enhancing productivity and durability.

Integrated Base Support

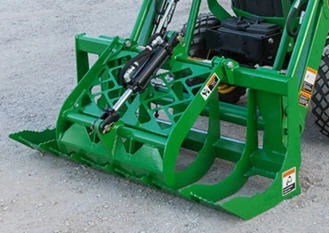

Front left view of a green root grapple with claws closed resting on gravel with the front of its attached tractor in the back corner

The integrated base support of the root grapple prevents it from rolling or tipping over when detached from the loader attachment. This stability feature ensures safety and ease of handling during storage or transportation.

Quick and Easy Loader Connection

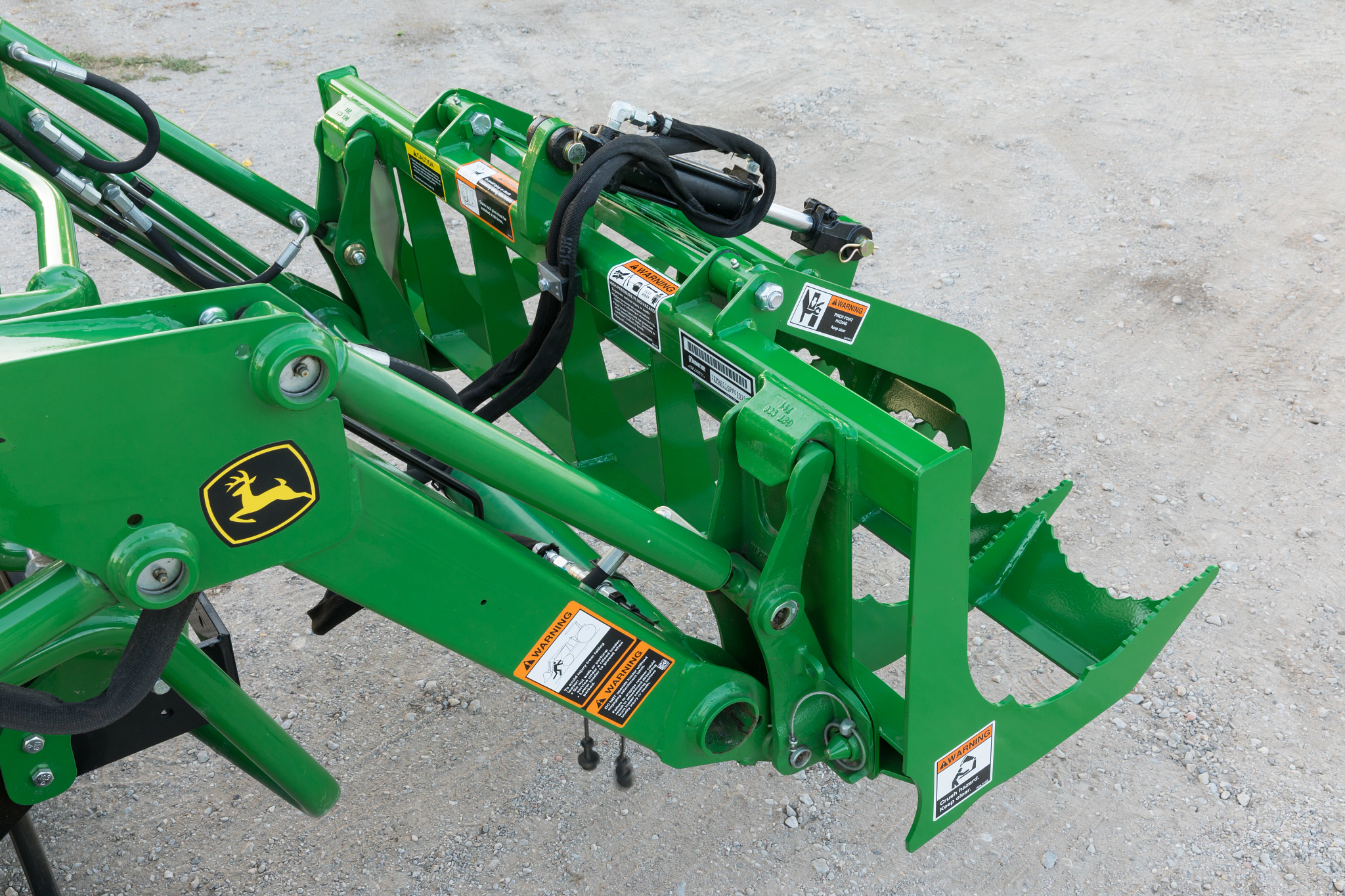

Top right view of a 2025R tractor with attached, closed AV2053F root grapple

Attaching the AV20F Series Root Grapple to a John Deere loader is straightforward with quick-change attaching systems. Simply align the loader's connecting points to the attachment frame and securely lock in place.

Specifications

Dimensions

Width53 in.
Width134.6 cm
Height25 in.
Height63.5 cm
Depth23.2 in.
Depth58.9 cm
Cutting Width53 in.
Cutting Width134.6 cm
Grapple Opening36 in.
Grapple Opening91.4 cm

Grapple Clamping Force

Maximum945 lb-ft
Maximum4203.5 N

Grapple Tines

Upper Tines - Quantity4
Lower Tines - Quantity7
Grapple Tine Spacing8.5 in.
Grapple Tine Spacing21.6 cm

Warranty

Time Period1 year

Weight

Operational203 lb.
Operational92 kg
Shipping223 lb.
Shipping101.1 kg

Hydraulic Cylinders

Quantity1

Setup Time

Labor Hours0.25 hr

Attachment Type

Current Series Style100, 200 and 300 (300 on 3E Tractor only)
