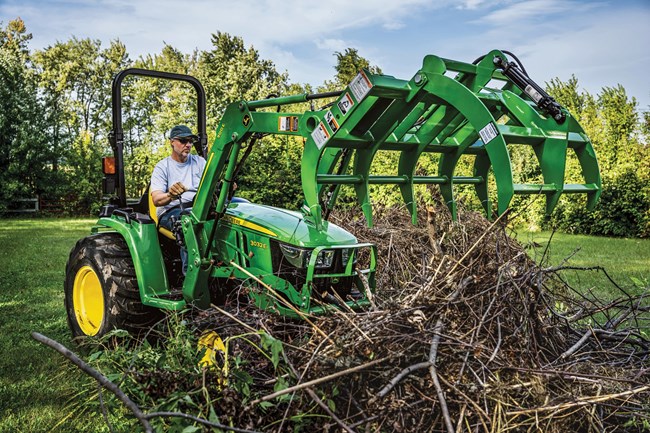

John Deere AV20E

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / AV20E

Double tap to zoom



Features

Extended Life and Easy Maintenance

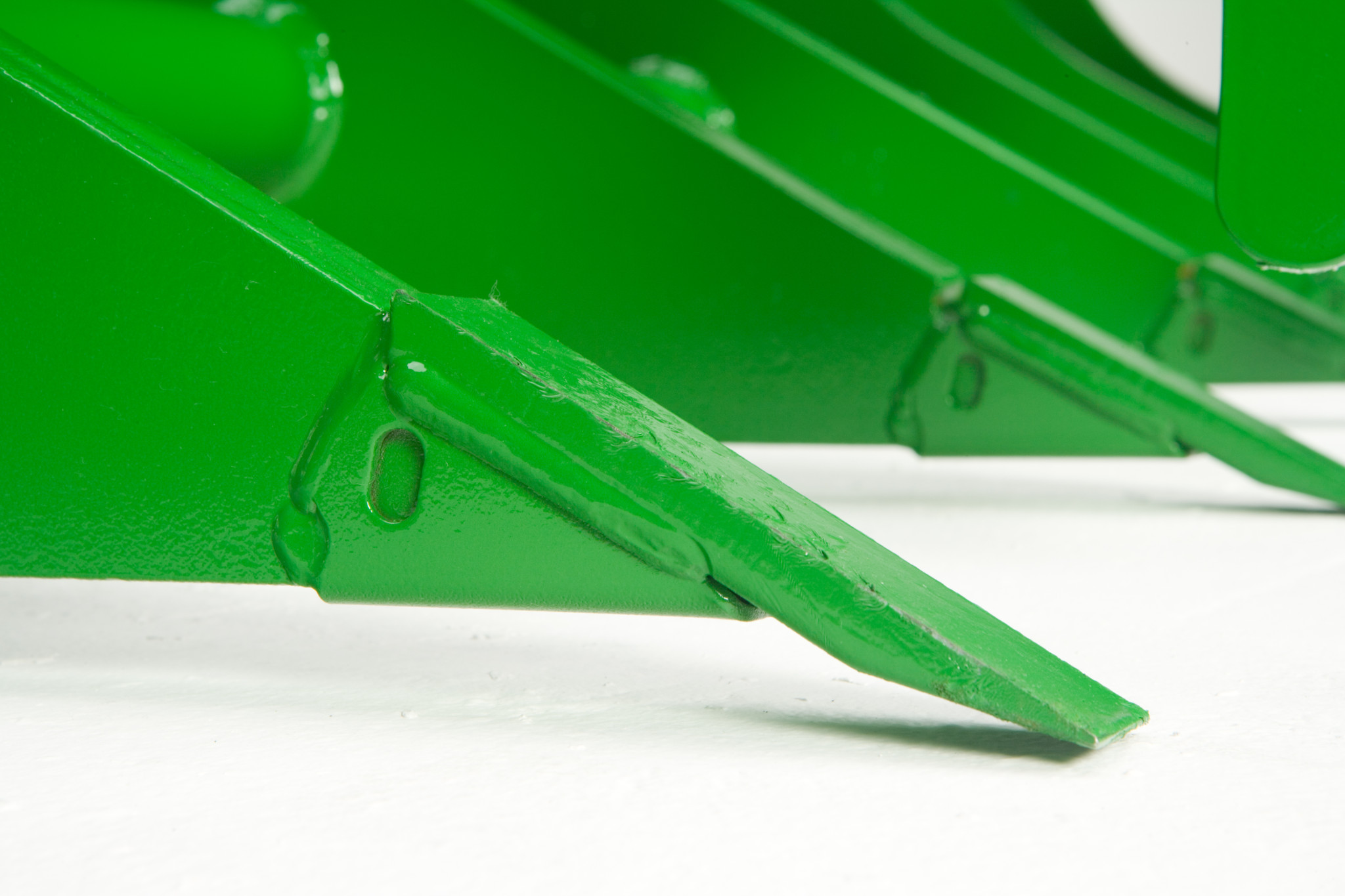

Close-up side view of wear tips on the AV20E Root Grapple

For extended implement life and easy maintenance, all wear tips on the root grapple are replaceable. This feature ensures the grapple remains in top working condition, saving time and cost on replacements.

Parking Stand Kit for Root Grapples

An optional parking stand kit is available, making storage and handling easy. When using the kit, completely close the grapple clamps and place the unit on a solid level surface to ensure stability.

Quick Attaching System

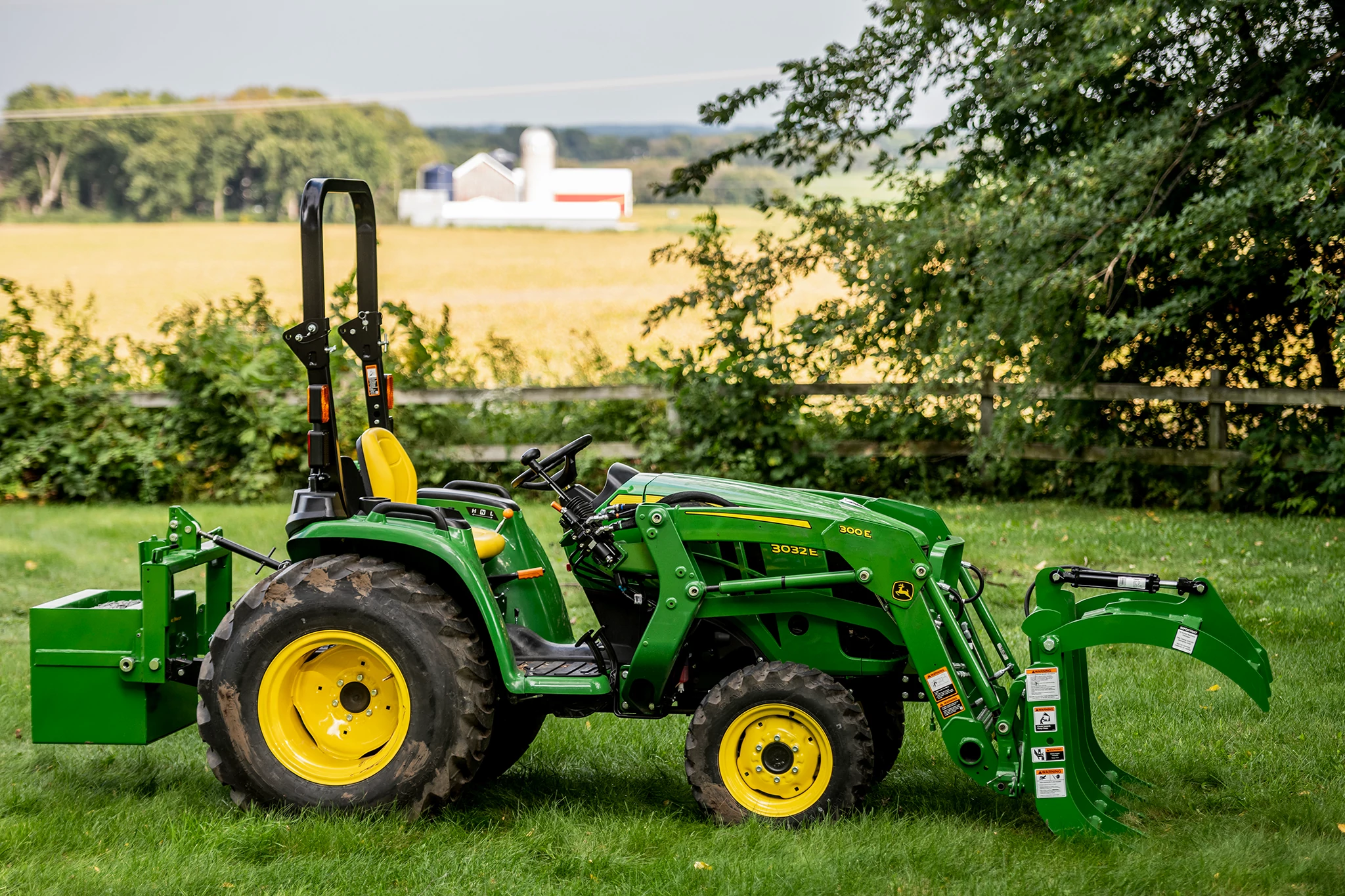

Utility Tractor with Root Grapple in grassy area

Attaching the root grapple to John Deere loaders is facilitated through quick change attaching systems. Simply align loader connecting points to the attachment frame and lock in place. This ease of connection saves time and enhances productivity across operations. Note: Image representative of AV20 series.

Specifications

Dimensions

Height25 in.
Height63.5 cm
Grapple Opening50 in.
Grapple Opening127 cm
Cutting Width62 in.
Cutting Width157.5 cm
Depth137.2 cm
Depth54 in.
Width157.5 cm
Width62 in.

Grapple Clamping Force

Maximum12010.2 N
Maximum2700 lb-ft

Grapple Tines

Grapple Tine Spacing15 in.
Grapple Tine Spacing38.1 cm
Upper Tines - Quantity5
Lower Tines - Quantity4

Warranty

Time Period1 year

Weight

Shipping830 lb.
Shipping376.5 kg
Operational790 lb.
Operational358.3 kg

Hydraulic Cylinders

Quantity2

Setup Time

Labor Hours0.5 hr

Attachment Type

Current Series Style400CX - 500
