John Deere AS11E-10

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / AS11E-10

Double tap to zoom



Features

Stay Safe With a Spring-Loaded Steel Trip Edge

Close-up of a snow push frame showing two vertical tension springs mounted on brackets above a metal bar, positioned over snow-covered ground

The AS11E Snow Push features a spring-loaded, steel trip edge that ensures safety by protecting the cutting edge from collisions with immovable objects.

Back Drag Attachment

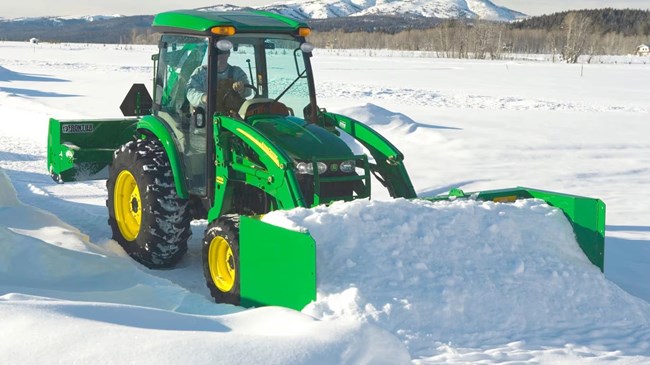

Tractor equipped with a front-mounted snow pusher clearing snow from a road.

This snow push includes a field-installed back drag kit, allowing operators to efficiently move snow from hard-to-reach areas that other blades can't access.

Field-Installed Rubber Edge Kit

Side studio view of field-installed rubber edge kit on the AS11E Snow Push

The replacement rubber edge kits come in different lengths, and are for the back drag attachment on AS11E Snow Pushes. The rubber edges are for fresh and dry snow pushing, removing the piles of snow a steel blade leaves behind. Because they are reversible, they have a longer wear life.

Specifications

Dimensions

Width119.875 in.
Width304.5 cm
Height39.8 in.
Height101.1 cm
Depth41.5 in.
Depth105.4 cm
Cutting Width119 in.
Cutting Width303.5 cm

Moldboard

Moldboard Thickness0.135 in.
Moldboard Thickness3.4 mm
Moldboard Thickness10 gauge
Height38.1 in.
Height96.8 cm

Skid Shoes

TypeWelded

Warranty

Time Period1 year

Setup Time

Labor Hours0.25 hr

Weight

Equipment980 lb.
Equipment444.5 kg
Shipping1030 lb.
Shipping467.2 kg

Cutting Edge

Steel, Spring ResetYes

Attachment Carrier

Current Series Attachment Carrier Style300, 400, 500
