John Deere AS10F - 60 in.

Double tap to zoom



Features

Increased Uptime with Quik-Tatch Capability

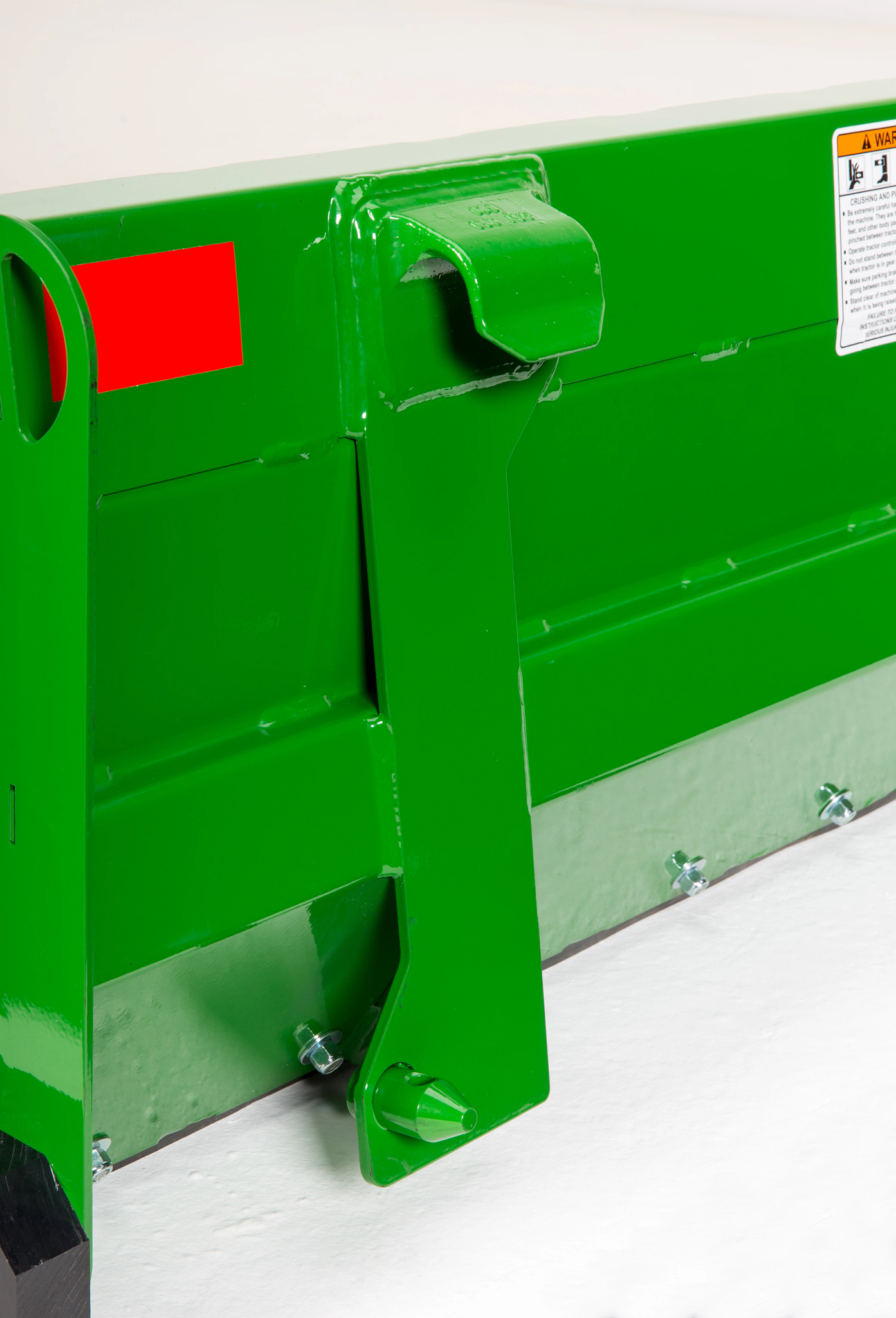

Close-up of steel blade showing a reinforced end plate with welded seams, a mounting hook, reflective red decal, and a bolted metal wear edge along the bottom.

Hook up the snow push by lining up the loader’s connecting point to the attachment frame, picking up the attachment, and locking it in place.

Reversible Cutting Edge Increases Life of Snow Push

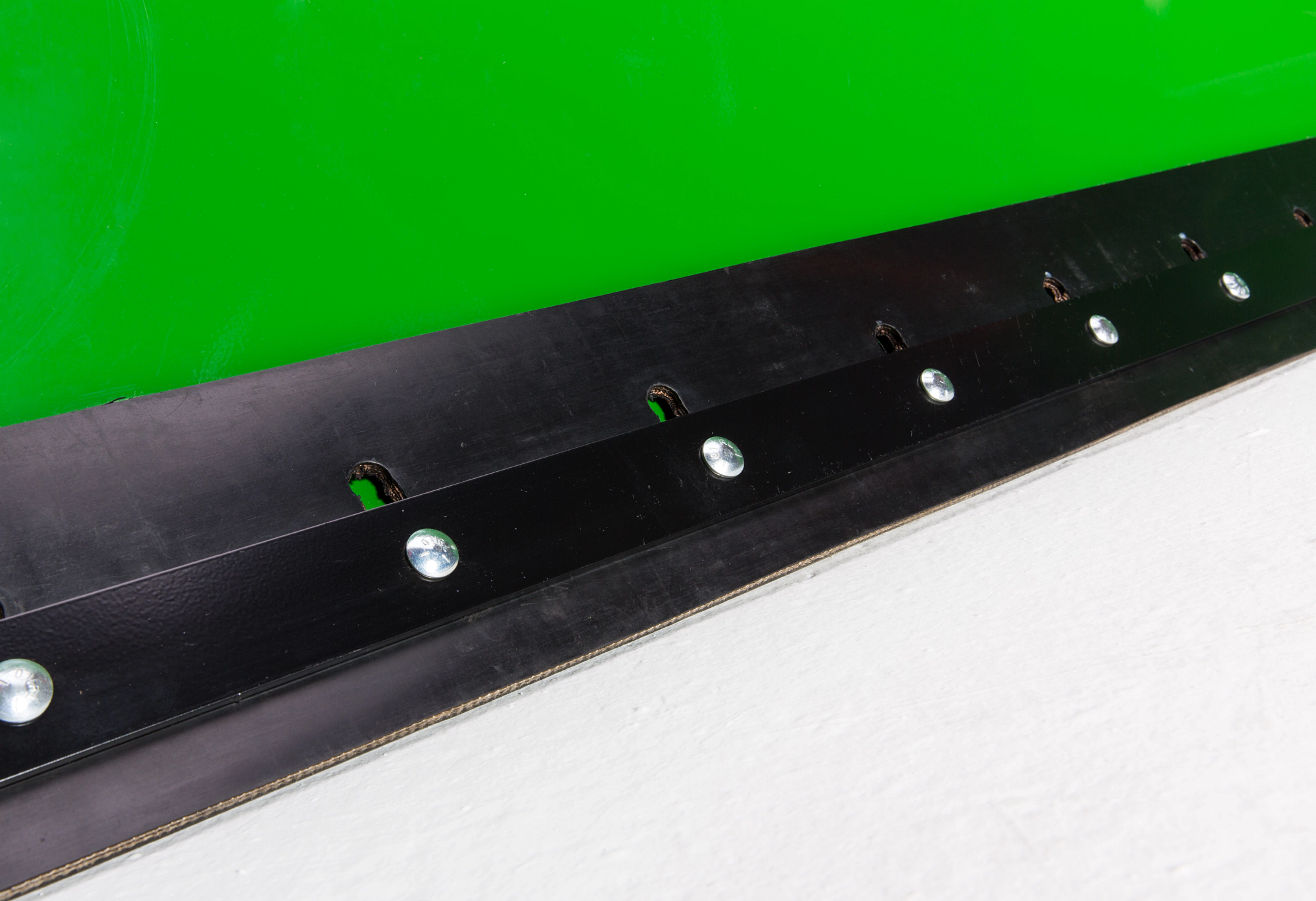

Close-up of a machine edge with a black reinforced cutting strip secured by evenly spaced silver bolts.

The cutting edge is reversible and adjustable to increase the wear life of the part. The steel blade comes standard, but an optional rubber blade is available.

Optional Pull-Back Kit

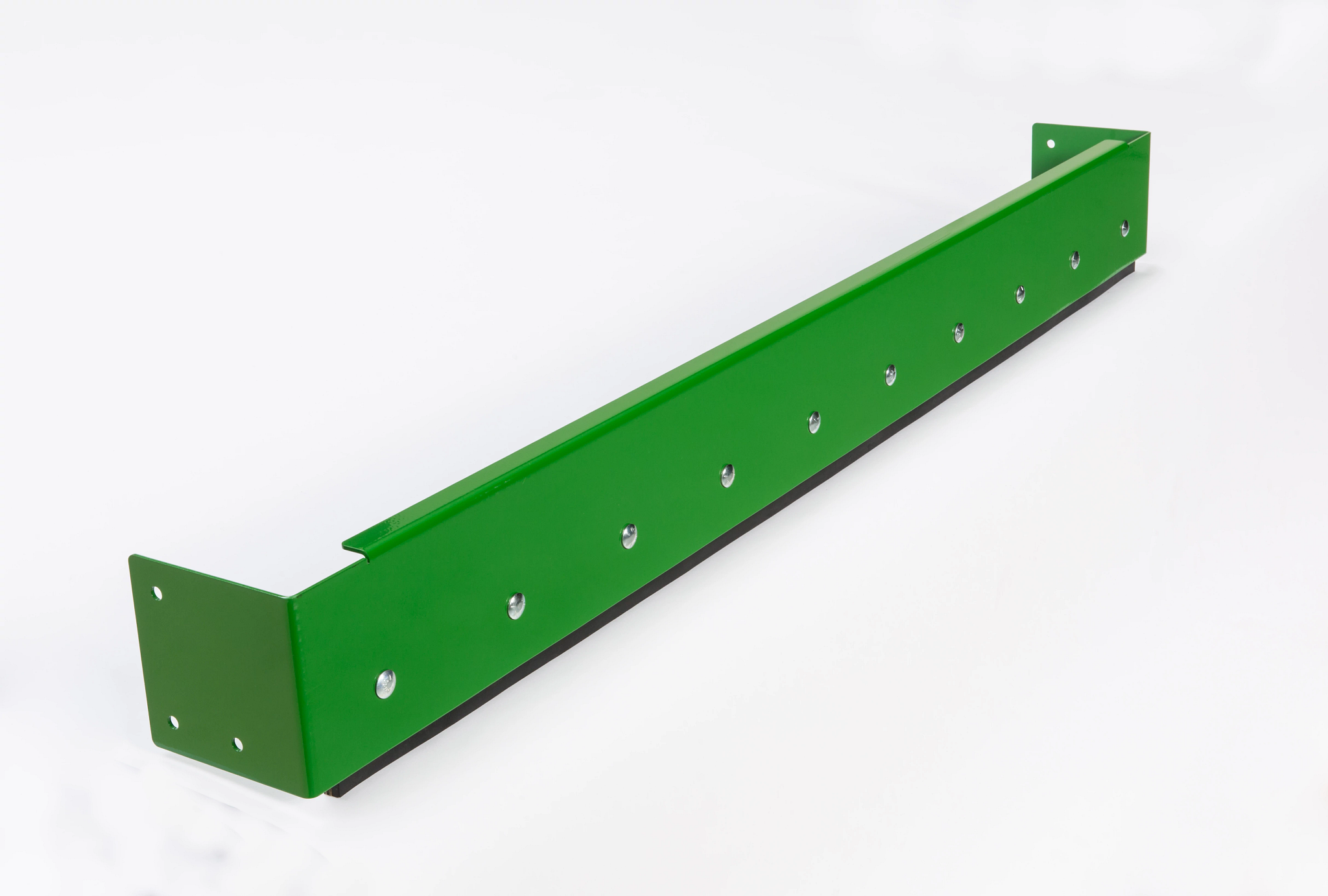

Long steel wear edge or cutting edge component with evenly spaced bolt holes and a black lower strip.

An optional pull-back kit is available to reach snow other blades cannot reach, such as away from a garage, retaining wall, and curbs. It is available in either a steel edge or a rubber edge.

Specifications

Dimensions

Width62.6 in.
Width159 cm
Height19.3 in.
Height49 cm
Depth21.6 in.
Depth54.9 cm
Cutting Width60 in.
Cutting Width152.4 cm

Moldboard

Moldboard Thickness0.1046 in.
Moldboard Thickness2.66 mm
Moldboard Thickness12 gauge
Height19 in.
Height48.3 cm

Skid Shoes

TypeWelded

Warranty

Time Period1 year

Setup Time

Labor Hours0.25 hr

Weight

Equipment160 lb.
Equipment72.6 kg

Cutting Edge

Steel, Spring ResetYes

Attachment Carrier

Current Series Attachment Carrier Style100, 200

Additional Information

Date Collected2017-08-28
