John Deere AR10G

Double tap to zoom

AR10G

Tractor Attachments and Implements

Overview:

The Frontier™ AR10G - 75 in. Rock Bucket for current loaders with Global Carrier provides unmatched durability and efficiency for heavy-duty rock handling, optimizing your loader's performance while ensuring maximum operational productivity.

Quick and Easy Connection
Clear Land of Rocks While Leaving Soil in Place
Sift Out Soil While Picking Up Heavy Rocks or Large Debris
Compatible with Global Attachment Carriers

Get a Quote

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features
Specifications

Features

Quick and Easy Attaching System

Close-up of a metal loader frame with a rectangular side plate, mounting brackets, and visible bolt points, shown against a plain white background

The AR10G Rock Bucket features a quick-change and global attaching system that fits current 300 to 700 Series Loader attachment carriers. This system makes it easy to attach by simply lining up the loader's connecting points and locking it in place.

Robust Design and Compatibility

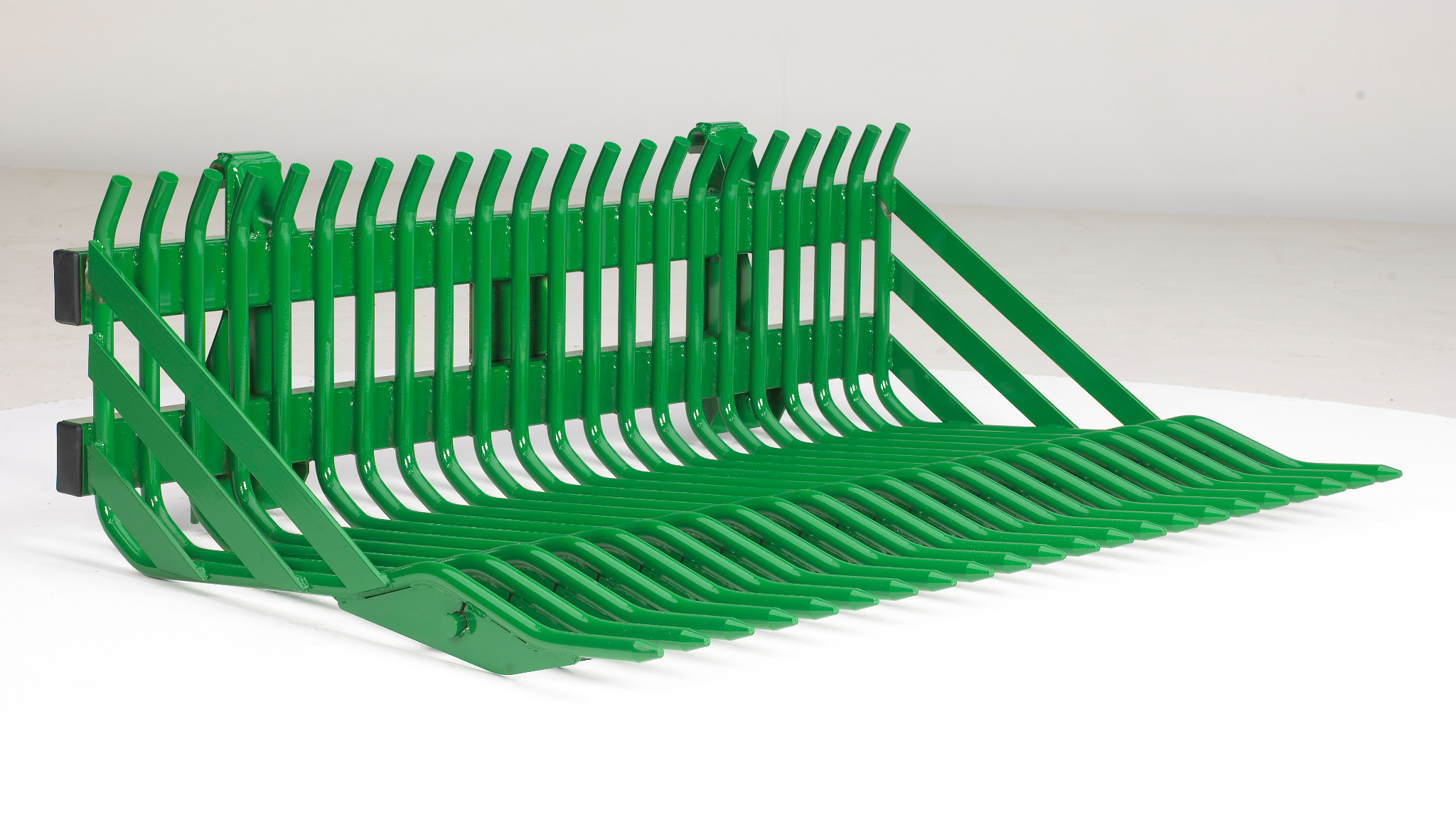

Front right studio view of a green rock bucket

Designed with sturdy tine tips interlaced for increased strength, this rock bucket is ideal for sorting materials and clearing debris. It is fully compatible with global-style loaders and comes with optional grapples to suit specific needs.

Hydraulic Grapple Conversion

Front‑mounted green grapple bucket attachment with curved upper tines and a slotted lower bucket, shown against a white background

The bucket supports a hydraulic grapple conversion kit that enhances its functionality. This optional kit allows the bucket to efficiently grasp materials and operate with reinforced ribs, providing excellent strength for handling various tasks.

Specifications

Weight

2-in. Tine Spacing Operating	739 lb.
2-in. Tine Spacing Operating	335.2 kg
2-in. Tine Spacing Shipping	814 lb.
2-in. Tine Spacing Shipping	369.2 kg
3-in. Tine Spacing Operating	619 lb.
3-in. Tine Spacing Operating	280.8 kg
3-in. Tine Spacing Shipping	694 lb.
3-in. Tine Spacing Shipping	314.8 kg

Optional Rock Bucket Grapple

Available	Yes
Grapple Opening	60 in.
Grapple Opening	152.4 cm
Clamp Force - Open	2400 lb-ft
Clamp Force - Open	10675.7 N
Clamp Force - Closed	2060 lb-ft
Clamp Force - Closed	9163.3 N

Tine

Spacing	2, 3 in.
Spacing	5.1, 7.6 cm
Diameter	1.125 in.
Diameter	2.9 cm
Length	39 in.
Length	99.1 cm

Dimensions

Width	74.4 in.
Width	189 cm
Height	21.7 in.
Height	55.1 cm
Depth	48 in.
Depth	121.9 cm
Cutting Width	75 in.
Cutting Width	190.5 cm

Warranty

Time Period

1 year

Setup Time

Labor Hours

0.25 hr

Attachment Carrier

Current Series Style

Global
