AR10E - 75 in.

Tractor Attachments and Implements

Overview:

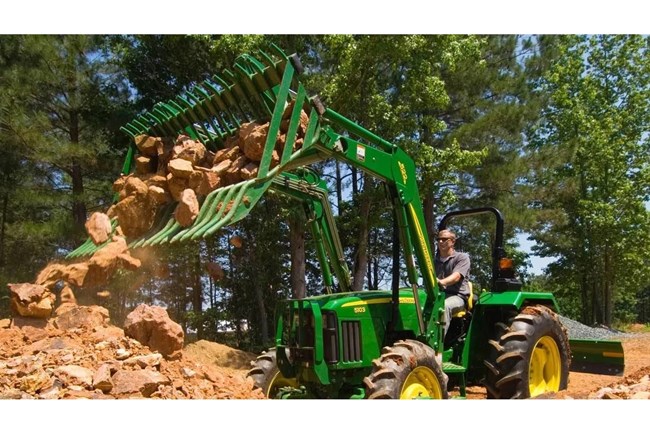

The Frontier™ AR10E - 75 in. Rock Bucket offers unparalleled durability and efficiency for the current 300/400/500 Series carrier, making it an essential tool for optimal rock and debris handling in demanding agricultural and construction environments.

Quick and Easy Connection
Clear Land of Rocks While Leaving Soil in Place
Sift Out Soil While Picking Up Heavy Rocks or Large Debris
Compatible with 300, 400, and 500 Series Style Attachment Carriers

Get a Quote

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features
Specifications

Features

Quick and Easy Connection

Close-up of a metal loader frame with a rectangular side plate, mounting brackets, and visible bolt points, shown against a plain white background

Attaching the AR10 Series Rock Buckets to a John Deere loader is easy with quick-change and global attaching systems. Just line up the loader's connecting points to the attachment frame and lock in place.

Bucket Grapple Field Conversion Kit for AR10 Rock Buckets

Studio view of the hydraulics on the bucket grapple field conversion kit for AR10 Rock Bucket

Hydraulic grapple conversion kits are for use with rock bucket loader attachments.

Grapple Conversion Kit for AR10 Rock Buckets

Front‑mounted green grapple bucket attachment with curved upper tines and a slotted lower bucket, shown against a white background

This grapple conversion kit provides a tight grasp and has reinforced ribs for added strength to rip up hard ground up to a depth of 11 in. (27.9 cm).

Specifications

Weight

2-in. Tine Spacing Operating	632 lb.
2-in. Tine Spacing Operating	286.7 kg
2-in. Tine Spacing Shipping	707 lb.
2-in. Tine Spacing Shipping	320.7 kg
3-in. Tine Spacing Operating	528 lb.
3-in. Tine Spacing Operating	239.5 kg
3-in. Tine Spacing Shipping	603 lb.
3-in. Tine Spacing Shipping	273.5 kg

Optional Rock Bucket Grapple

Available	Yes
Grapple Opening	60 in.
Grapple Opening	152.4 cm
Clamp Force - Open	2400 lb-ft
Clamp Force - Open	10675.7 N
Clamp Force - Closed	2060 lb-ft
Clamp Force - Closed	9163.3 N

Tine

Spacing	2, 3 in.
Spacing	5.1, 7.6 cm
Diameter	1.125 in.
Diameter	2.9 cm
Length	39 in.
Length	99.1 cm

Dimensions

Width	74.4 in.
Width	189 cm
Height	21.7 in.
Height	55.1 cm
Depth	45 in.
Depth	114.3 cm
Cutting Width	75 in.
Cutting Width	190.5 cm

Warranty

Time Period

1 year

Setup Time

Labor Hours

0.25 hr

Attachment Carrier

Current Series Style

300, 400, and 500
