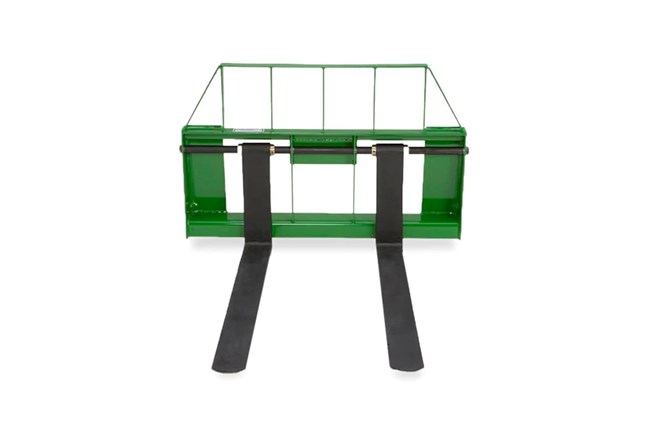

John Deere AP13F

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / AP13F

Double tap to zoom



Features

Steel Frame is Strong for Tough Jobs

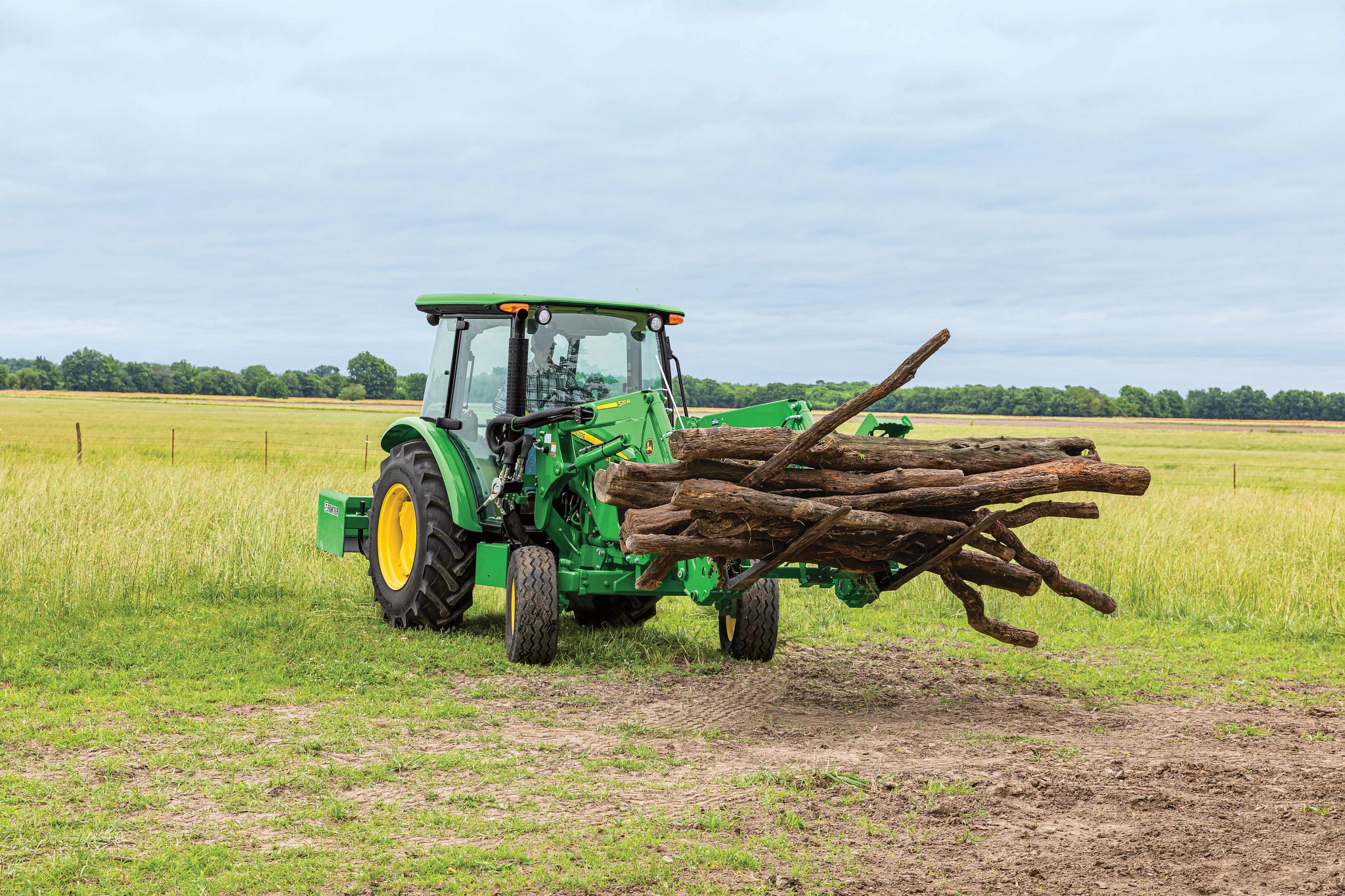

Front right view of a 5075E tractor transporting logs in a grassy field with attached 520M loader and AP12G pallet fork

The AP12 and AP13 Series Pallet Forks are built with welded components and high-tensile, heavy-gauge steel for years of dependable service.

Floating-Tine Pallet Forks

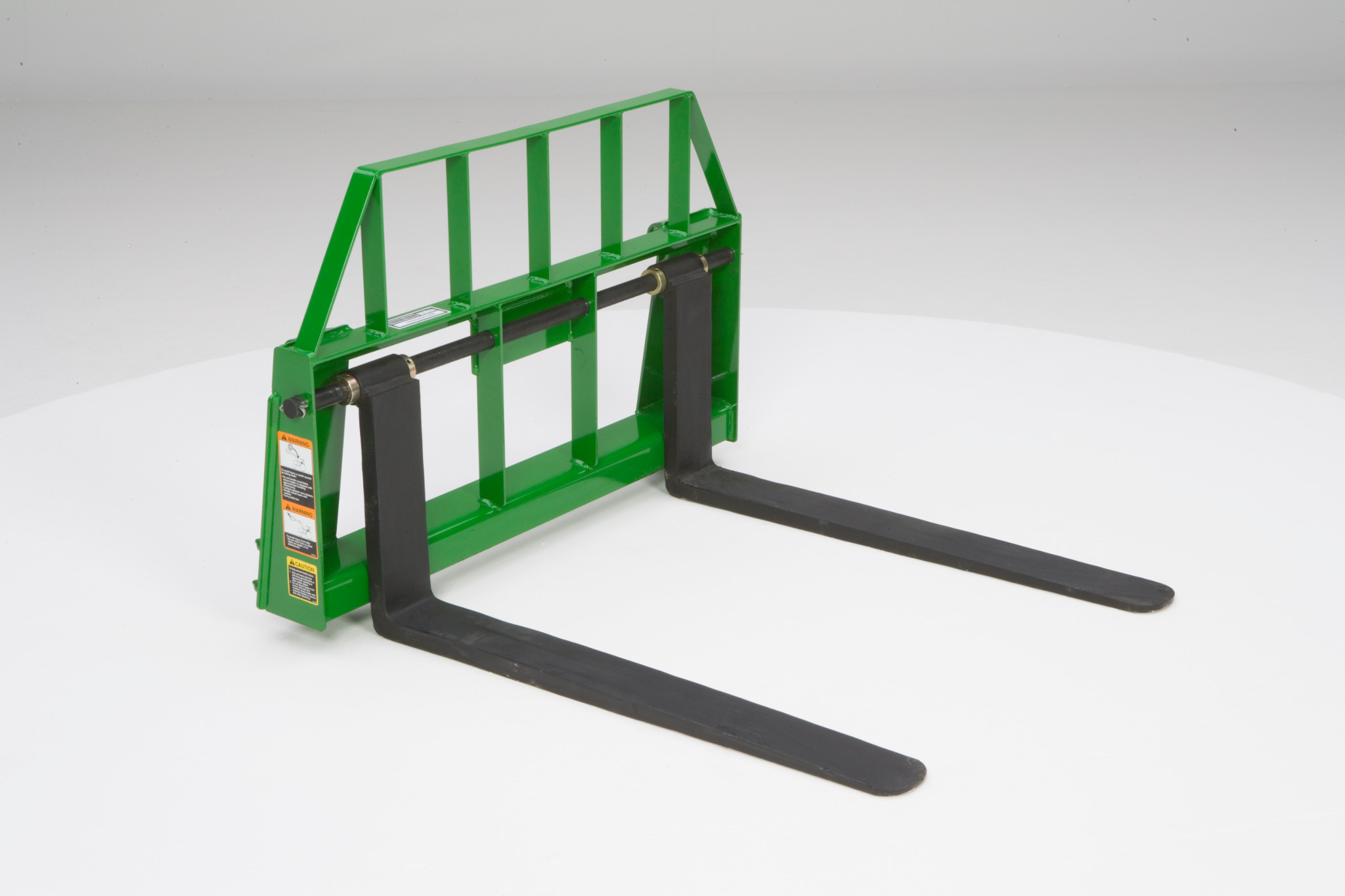

Front right studio view of floating tines on the AP13 Series Pallet Fork

Floating-tine pallet forks on the AP13 Series allow the tines to float while picking up and removing pallets on uneven terrain. Tines can be made rigid at any position along the shaft by tightening the set screws.

Note: Image represents one model in Frontier pallet fork line.

Versatile Carrying Capacity

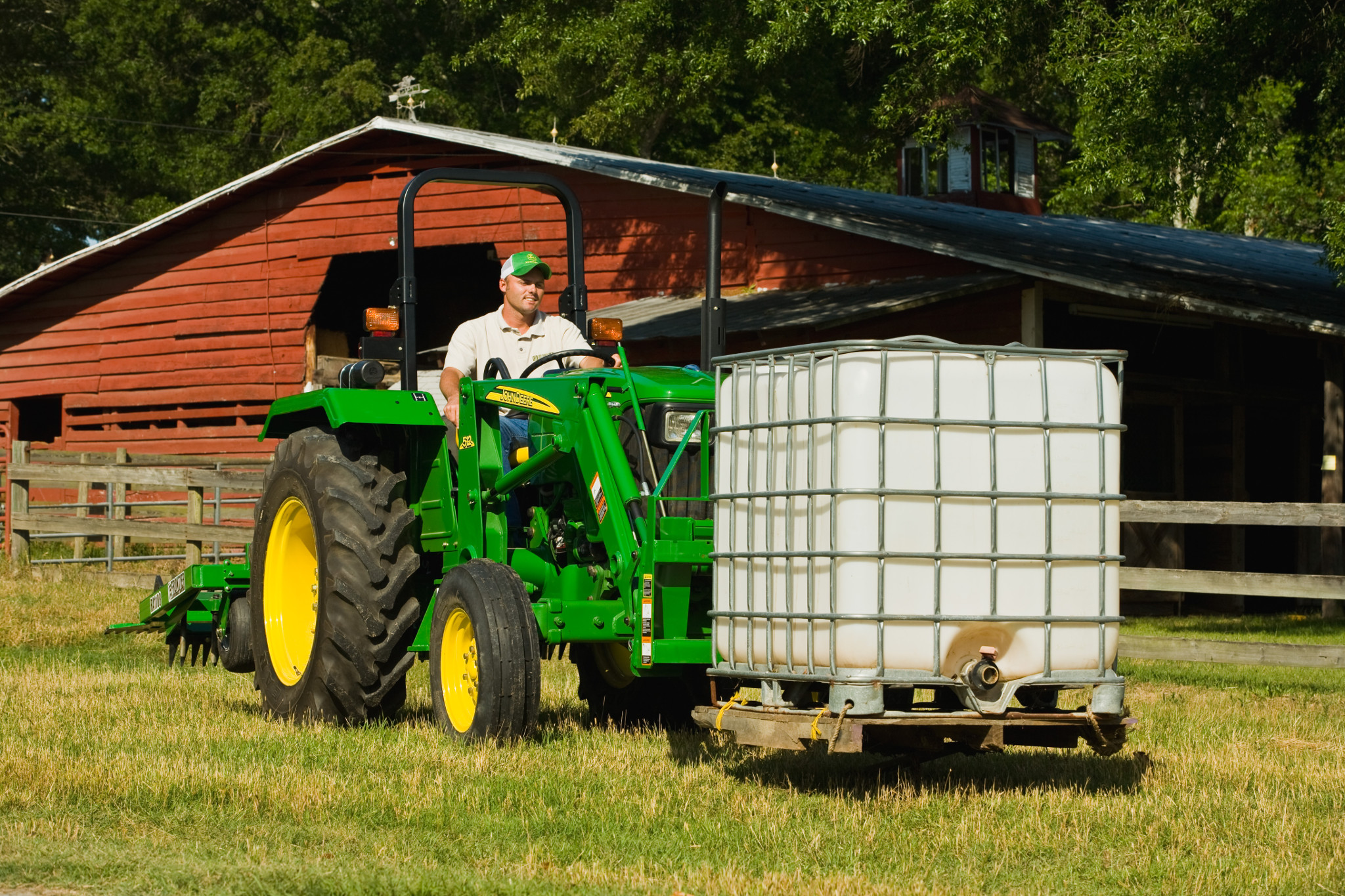

A man operating a tractor with a pallet fork transporting a large square water tank in front of a red barn

Designed to accommodate heavy loads, this fixed pallet fork supports up to 3750 lb (1701 kg). Its robust capacity ensures efficient material handling with compatibility across a range of loader models.

Specifications

Fork Tines

Fork Tines TypeFloating
Capacity5500 lb.
Capacity2494.8 kg
Section1.6x5.1 in.
Section40x130 mm
Fork Tine Length42 in.
Fork Tine Length106.7 cm

Dimensions

Overall Height32 in.
Overall Height81.3 cm
Overall Width49 in.
Overall Width124.5 cm
Overall Length52 in.
Overall Length132.1 cm

Warranty

Time Period1 year

Weight

Operational440 / 460 lb.
Operational199.6 / 208.7 kg
Shipping480 / 500 lb.
Shipping217.7 / 226.8 kg

Attachment Carrier

Current Series StyleFor current 200/300/400/500 Series Carrier

Setup Time

Labor Hours0.5
