John Deere AP13D

Double tap to zoom

AP13D

Tractor Attachments and Implements

Overview:

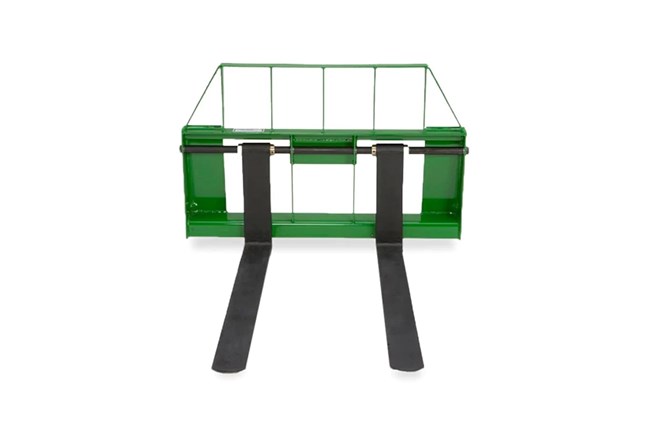

The Frontier™ AP13D pallet fork is strong, easy to adjust, and handles heavy loads, making lifting and moving pallets simple and reliable.

High Tensile, Heavy-Gauge Steel Frame
42-in. or 48-in. Tines Available
Tine Position is Adjustable - No Tools Required
Floating Tines

Get a Quote

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features
Specifications

Features

Handle Heavy Loads

A man operating a tractor with a pallet fork transporting a large square water tank in front of a red barn

Designed to accommodate heavy loads, this pallet fork supports up to 5,500 lb. (2495 kg). Its robust capacity ensures efficient material handling with compatibility across a range of loader models.

Steel Frame is Strong for Tough Jobs

Front right view of a 5075E tractor transporting logs in a grassy field with attached 520M loader and AP12G pallet fork

The AP12 and AP13 Series Pallet Forks are built with welded components and high-tensile, heavy-gauge steel for years of dependable service.

Floating-Tine Pallet Forks

Front right studio view of floating tines on the AP13 Series Pallet Fork

Floating-tine pallet forks on the AP13 Series allow the tines to float while picking up and removing pallets on uneven terrain. Tines can be made rigid at any position along the shaft by tightening the set screws.

Note: Image represents one model in Frontier pallet fork line.

Specifications

Fork Tines

Fork Tines Type	Floating
Capacity	5500 lb.
Capacity	2494.8 kg
Section	1.6x5.1 in.
Section	40x130 mm
Fork Tine Length	42 in.
Fork Tine Length	106.7 cm

Dimensions

Overall Height	34 in.
Overall Height	86.4 cm
Overall Width	50 in.
Overall Width	127 cm
Overall Length	54 in.
Overall Length	137.2 cm

Warranty

Time Period

1 year

Weight

Operational	425 / 445 lb.
Operational	192.8 / 201.8 kg
Shipping	465 / 485 lb.
Shipping	210.9 / 220 kg

Attachment Carrier

Current Series Style

600, 700

Setup Time

Labor Hours

0.5
