John Deere AP12K

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / AP12K

Double tap to zoom



Features

Steel Frame is Strong for Tough Jobs

Front right view of a 5075E tractor transporting logs in a grassy field with attached 520M loader and AP12G pallet fork

The AP12 and AP13 Series Pallet Forks are built with welded components and high-tensile, heavy-gauge steel for years of dependable service.

Handle Heavy Loads with Frontier™ Pallet Forks

A man operating a tractor with a pallet fork transporting a large square water tank in front of a red barn

Designed to accommodate heavy loads, this pallet fork supports up to 10,000 lb (4535.9 kg). Its robust capacity ensures efficient material handling with compatibility across a range of loader models.

Note: Image represents one model in Frontier pallet fork line.

Fixed-Tine Pallet Forks

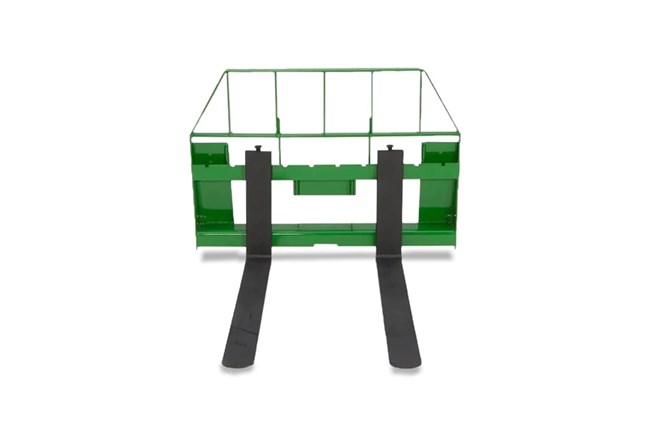

Green pallet fork attachment with two long black steel forks and a metal back frame on a white background

Fixed-tine pallet forks on the AP12 Series keep the tines in a set position for consistent handling of pallets. Tines can be moved to any position simply by releasing the locking pin, so no tools are required.

Specifications

Fork Tines

Fork Tines TypeFixed
Capacity10000 lb.
Capacity4536 kg
Section2x5 in.
Section51x127 mm
Fork Tine Length48 in.
Fork Tine Length121.9 cm

Dimensions

Overall Height41 in.
Overall Height104.1 cm
Overall Width59 in.
Overall Width149.9 cm
Overall Length60.2 in.
Overall Length152.9 cm

Warranty

Time Period1 year

Weight

Operational812 lb.
Operational368.3 kg
Shipping852 lb.
Shipping386.5 kg

Attachment Carrier

Current Series StyleGlobal Category 2

Setup Time

Labor Hours0.25
