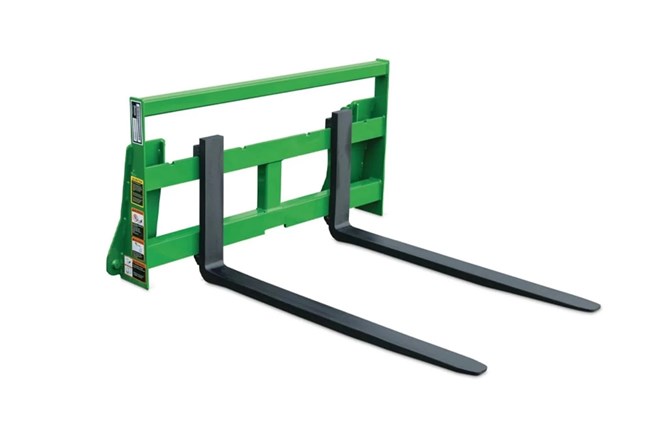

John Deere AP11F

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / AP11F

Double tap to zoom



Features

Fast and Easy Attachment

Pallet fork attachment in the field

The Quick-Change capability of the pallet fork allows for fast and easy attachment. It enables the operator to line up the loader’s connecting point to the attachment frame, pick it up, and lock it into place, ensuring an efficient workflow.

Adjustable Tine Positioning

Adjustable Tine Positioning Provides Increased Uptime

The forks can easily be adjusted to three different positions to accommodate different pallet sizes. This adaptability helps in efficiently managing various types of loads, increasing the operational efficiency and uptime of the equipment.

Attachment Carrier Style

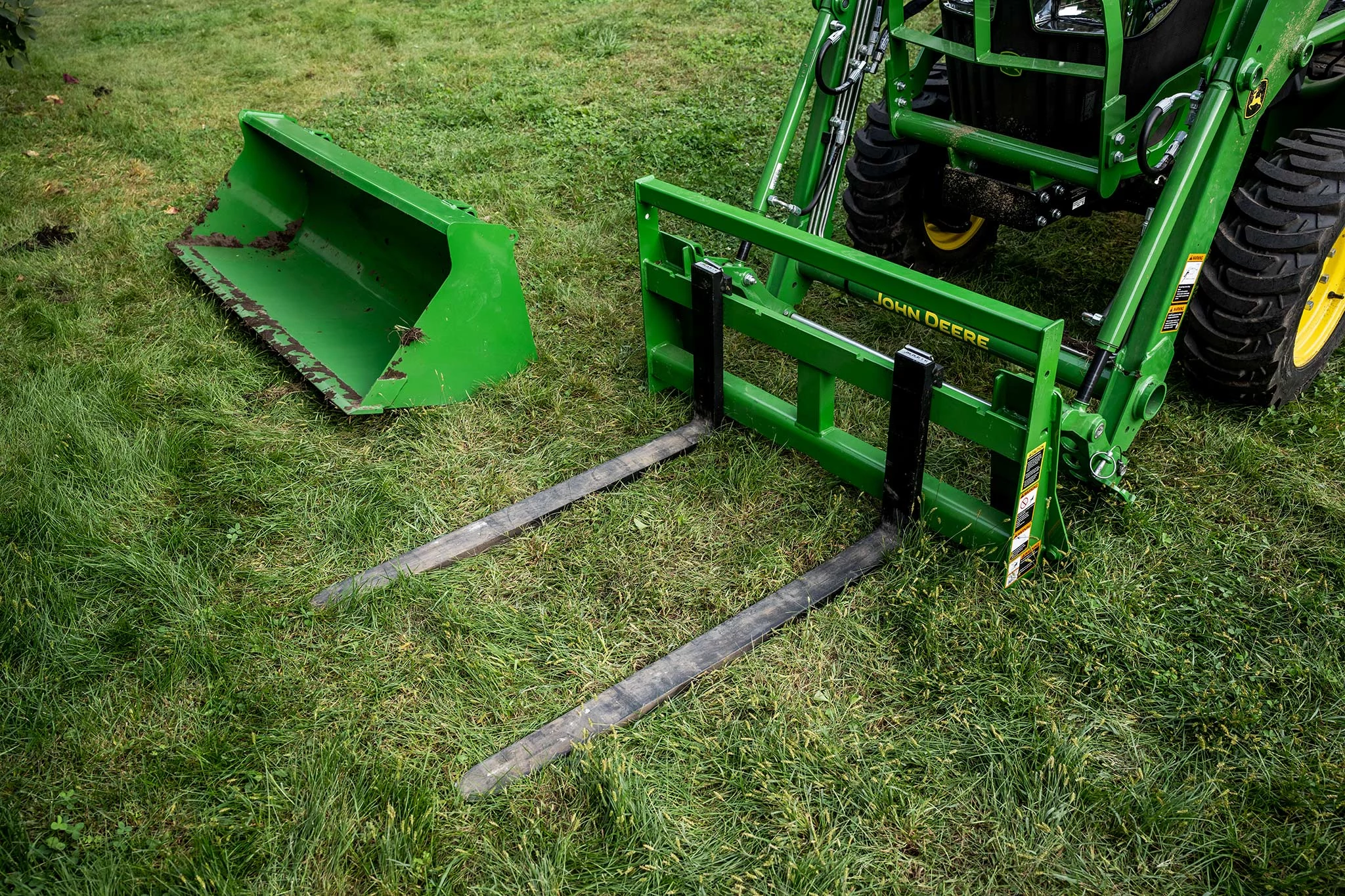

Top left view of an AP11F pallet fork attached to a John Deere compact tractor with a green bucket laying in the grass beside it.

The AP11F Series is compatible with 100, 200, and 300 carriers.

Specifications

Fork Tines

Fork Tines TypeFixed
Capacity2000 lb.
Capacity907 kg
Section1.18x3.13 in.
Section30x80 mm
Fork Tine Length42 in.
Fork Tine Length106.7 cm

Dimensions

Overall Height24.5 in.
Overall Height62.2 cm
Overall Width49.38 in.
Overall Width125.4 cm
Overall Length50 in.
Overall Length127 cm

Warranty

Time Period1 year

Weight

Operational247 lb.
Operational112 kg
Shipping291 lb.
Shipping132 kg

Attachment Carrier

Current Series Style100, 200, 300

Additional Information

Date Collected2017-08-01

Setup Time

Labor Hours0.25
