John Deere AP10F

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / AP10F

Double tap to zoom



Features

Multiple Tine Lengths

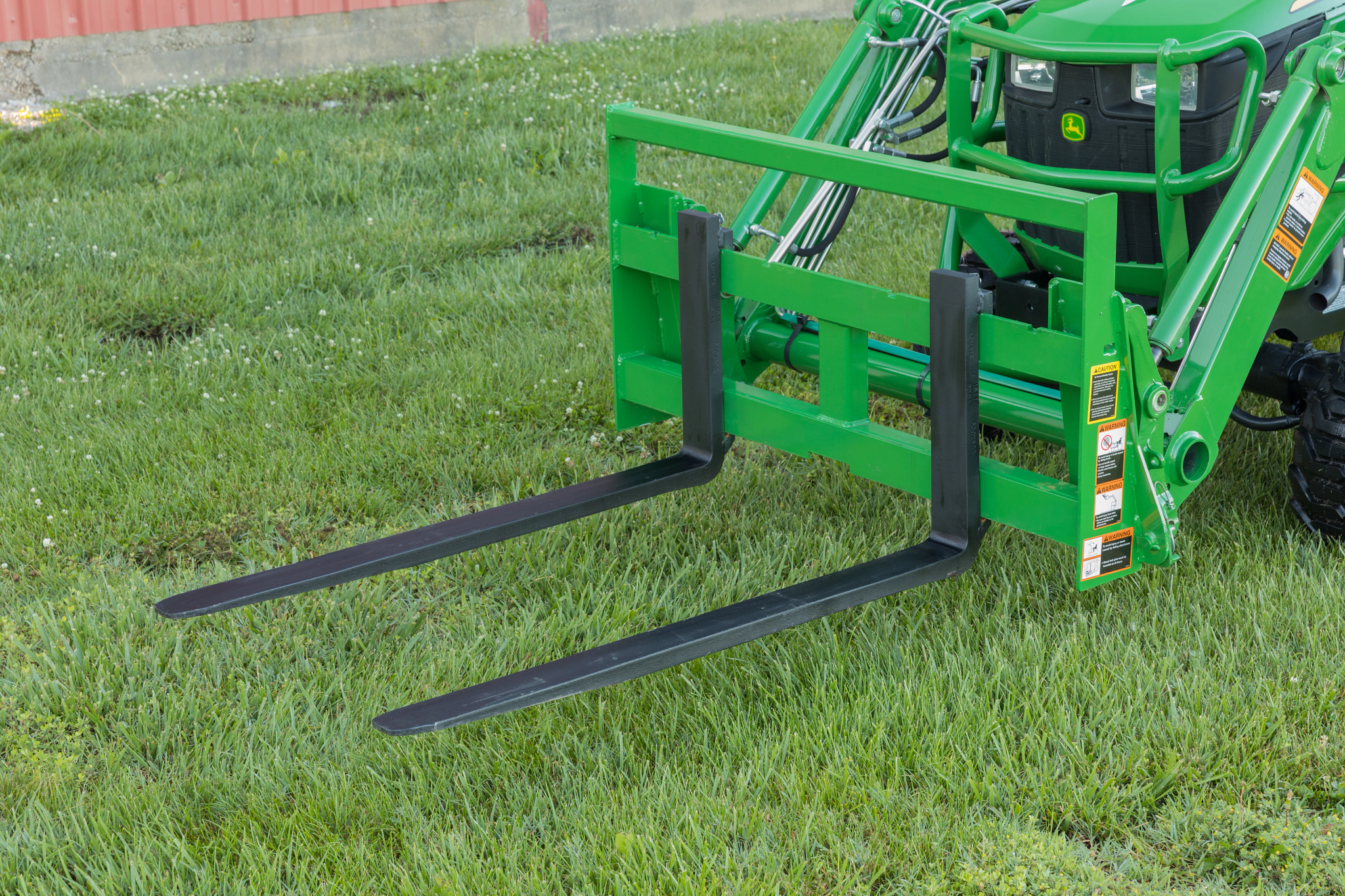

Front left view of a 1025R Sub-Compact Tractor on grass with attached AP11F Pallet Fork

The AP10F offers versatility with two tine length options, 36 and 42 in. (91.4 and 106.7 cm), allowing producers to select the most suitable length for their specific tasks. This flexibility accommodates various operational needs.

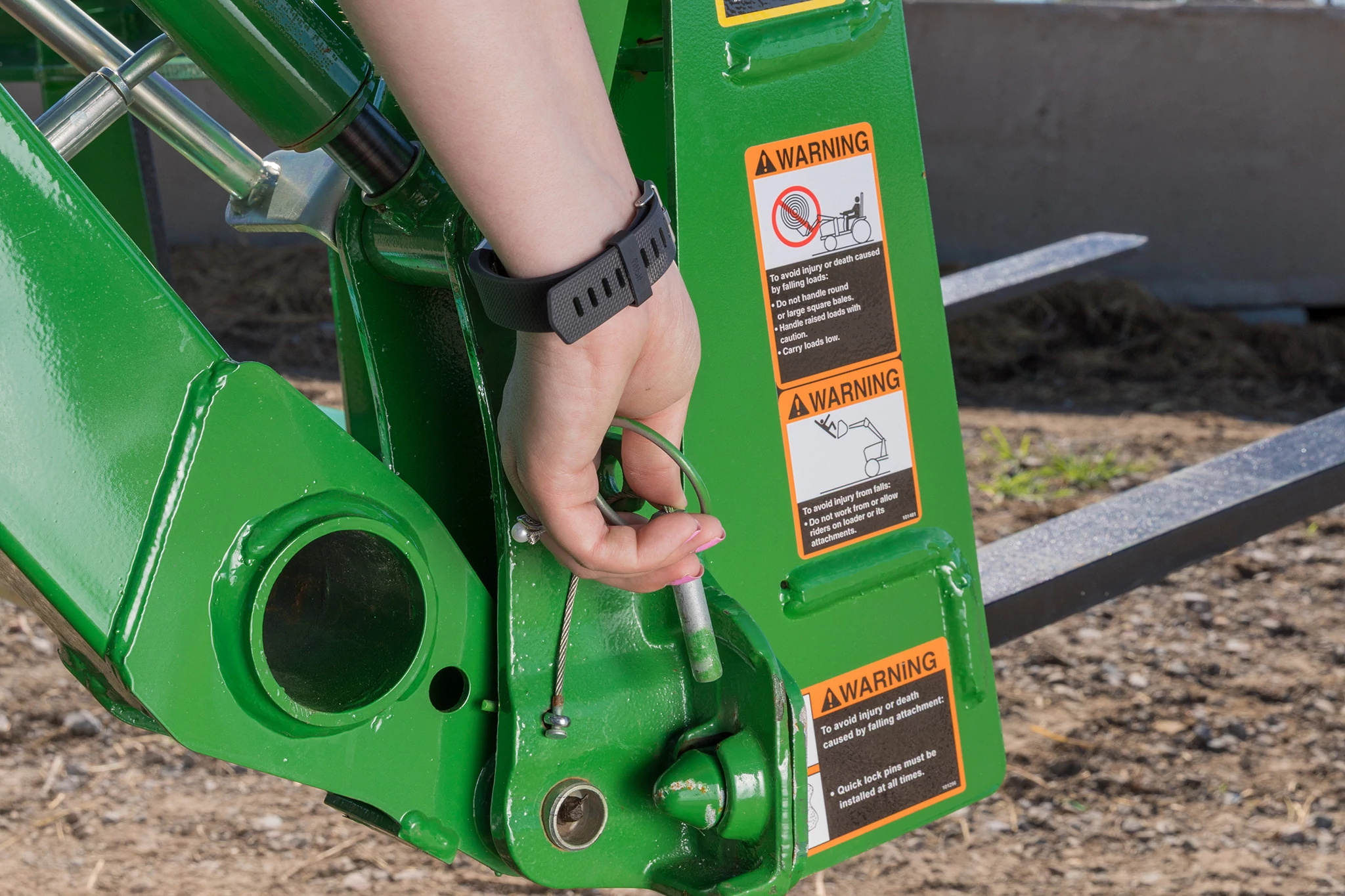

Fast and Easy Attachment

Pallet fork attachment in the field

The Quick-Change capability of the pallet fork allows for fast and easy attachment. It enables the operator to line up the loader’s connecting point to the attachment frame, pick it up, and lock it into place, ensuring an efficient workflow.

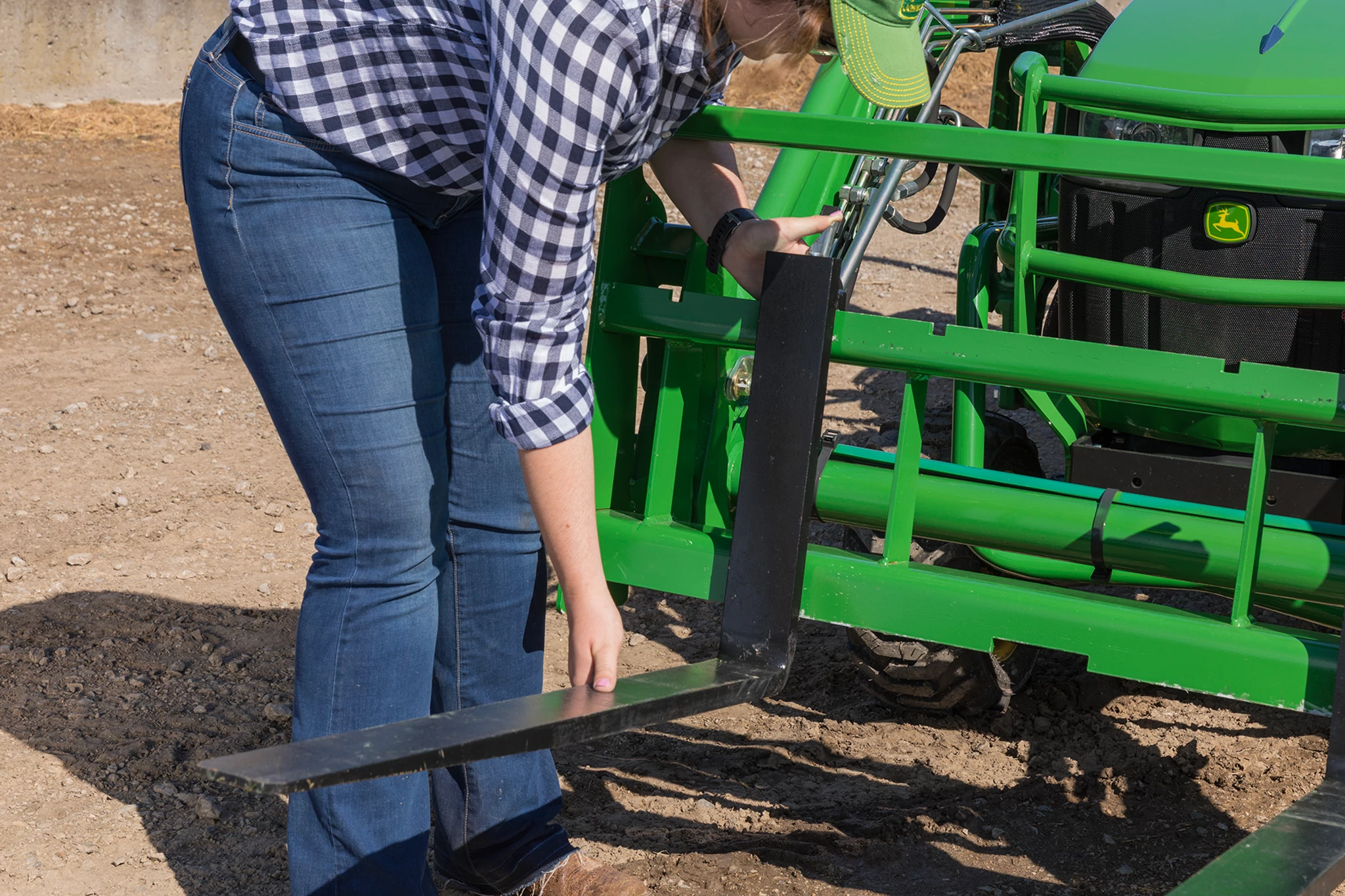

Adjustable Tine Positioning

Adjustable Tine Positioning Provides Increased Uptime

The forks can easily be adjusted to three different positions to accommodate different pallet sizes. This adaptability helps in efficiently managing various types of loads, increasing the operational efficiency and uptime of the equipment.

Specifications

Fork Tines

Section25.4x76.6 mm
Section1.0x3.0 in.
Capacity1250 lb.
Capacity567 kg
Fork Tines TypeFixed
Fork Tine Length91.4 cm
Fork Tine Length36 in.

Dimensions

Overall Height62.2 cm
Overall Height24.5 in.
Overall Length45 in.
Overall Length114.3 cm
Overall Width125.1 cm
Overall Width49.24 in.

Warranty

Time Period1 year

Weight

Shipping214 / 242 lb.
Shipping97.1 / 109.8 kg
Operational170 / 198 lb.
Operational77.1 / 89.8 kg

Attachment Carrier

Current Series Style100

Additional Information

Date Collected2017-08-01

Setup Time

Labor Hours0.25
