John Deere AF13E

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / AF13E

Double tap to zoom



Features

Improve Productivity with the Expandable Snow Blade

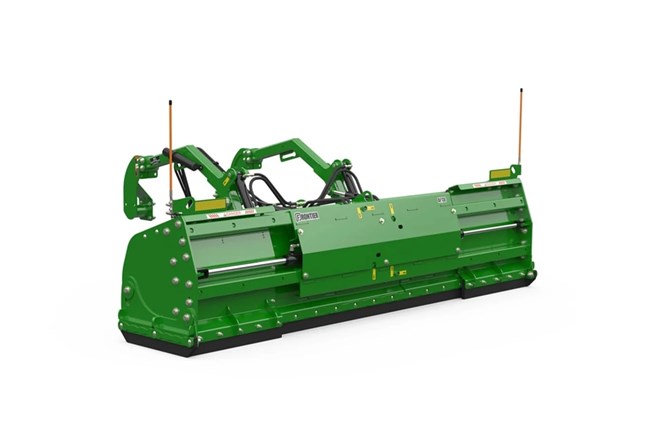

Computer-generated front-left graphic of a green Expandable Snow Blade

By reducing the number of passes and pulling snow from enclosed spaces, the AF13E Series Front Snow Blade makes quick work of snow-removal jobs. Using hydraulics to expand the blade horizontally, the blade has 6 to 10 ft (1.8 to 3.05 m) of working width, creating professional-grade results in less time.

Front-Mount Improves Capacity and Visibility

Computer-generated graphic of a green AF13E series front-mount snow blade pointed to the left

The AF13E Series Front Snow Blade articulates up to 10 degrees, mounts directly to the loader-mount and tractor frame, and uses dual mid-SVC hydraulics to cut costs and improve visibility.

Hydraulics Designed for Cold Temperatures

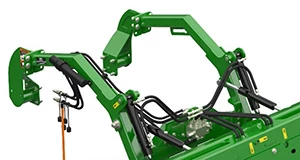

Close-up on a graphic of the arms and hydraulic hoses of an AF13E front snow blade

Designed for ultra-low temperatures, the AF13E hydraulic hoses use ultra-low temperature resistant synthetic rubber.

Specifications

Dimensions

Height, Blade736.6 mm
Weight, Blade1147 lb.
Weight, Hitch188.24 kg
Weight, Shipping2000 lb.
Depth, Blade685.8 mm
Height, Overall56 in.
Distance, Under The Ground6 in.
Width, Working Max125 in.
Distance, Bumper To Cutting Edge24.5 in.
Weight, Blade520.36 kg
Weight, Hitch415 lb.
Weight, Shipping907.18 kg
Height, Overall142.2 cm
Distance, Bumper To Cutting Edge622.3 mm
Width, Overall Max325.4 cm
Distance, To Ground Lifted533.4 mm
Width, Working Min77 in.
Weight, Operating1680 lb.
Distance, To Ground Lifted21 in.
Width, Overall Max128.13 in.
Height, Blade29 in.
Depth, Blade27 in.
Width, Working Min195.5 cm
Distance, Under The Ground152.4 mm
Width, Working Max317.5 cm
Weight, Operating761.79 kg

Frame

Thickness, Frame0.25 in.
Thickness, Frame6.35 mm
Harness Tube3 x 3 in.

Skid Shoes

Height, Skid Shoe Cutting Edge5 in.
Type, Skid ShoeUHMW
Height, Skid Shoe Cutting Edge127 mm
Skid Shoe Adjustment-2 @ 8
Skid Shoe Adjustment76.2x76.2
Thickness, Skid Shoe Cutting Edge25.4 mm
Thickness, Skid Shoe Cutting Edge1 in.

Hydraulic Cylinders

Double Extension Hydraulic Cylinders3 x 24
Extension Hydraulic Flow Divider BlockYes
Lift Hydraulic Ground Clearance508 mm
Double Lift Hydraulic Cylinders2 x 10
Lift Hydraulic Ground Clearance20 in.

Cutting Edge

Cutting Edge TypeUHMW
Height, Cutting Edge5 in.
Height, Cutting Edge127 mm
Thickness, Cutting Edge1 in.
Thickness, Cutting Edge25.4 mm

Weight

Operational Weight1680 lb.
Operational Weight761.79 kg
Shipping Weight2000 lb.
Shipping Weight907.18 kg

General

Tractor Power Requirements (Min.-Max.)33.56-55.93 kW
Tractor Power Requirements (Min.-Max.)45-75 hp
Working Depth ControlHydraulic
TypeInverted
