John Deere AF11E-72
Double tap to zoom
AF11E-72
Tractor Attachments and Implements
Overview:
The Frontier™ AF11E - 6-ft Loader-Mounted Front Blade With Manual Angle offers unmatched durability and efficiency for John Deere loader operators, featuring a heavy-duty steel frame and reversible cutting edge for extended wear and dual usability on 300, 400, and 500 series carrier systems, ensuring a reliable and quick attachment with its Quik-Tatch™ system for seamless operations.
- Reversible Cutting Edges
- Quick and Easy Attachment
- Heavy-Duty Frame
- Optional Hydraulic Angle Adjustment
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Heavy-Duty Frame for Long, Dependable Implement Life
The loader-mounted front blade is made of heavy-duty steel to resist bending and provide longer wear capability on the Frontier™ AF11 and AF12 Series Front Blades.

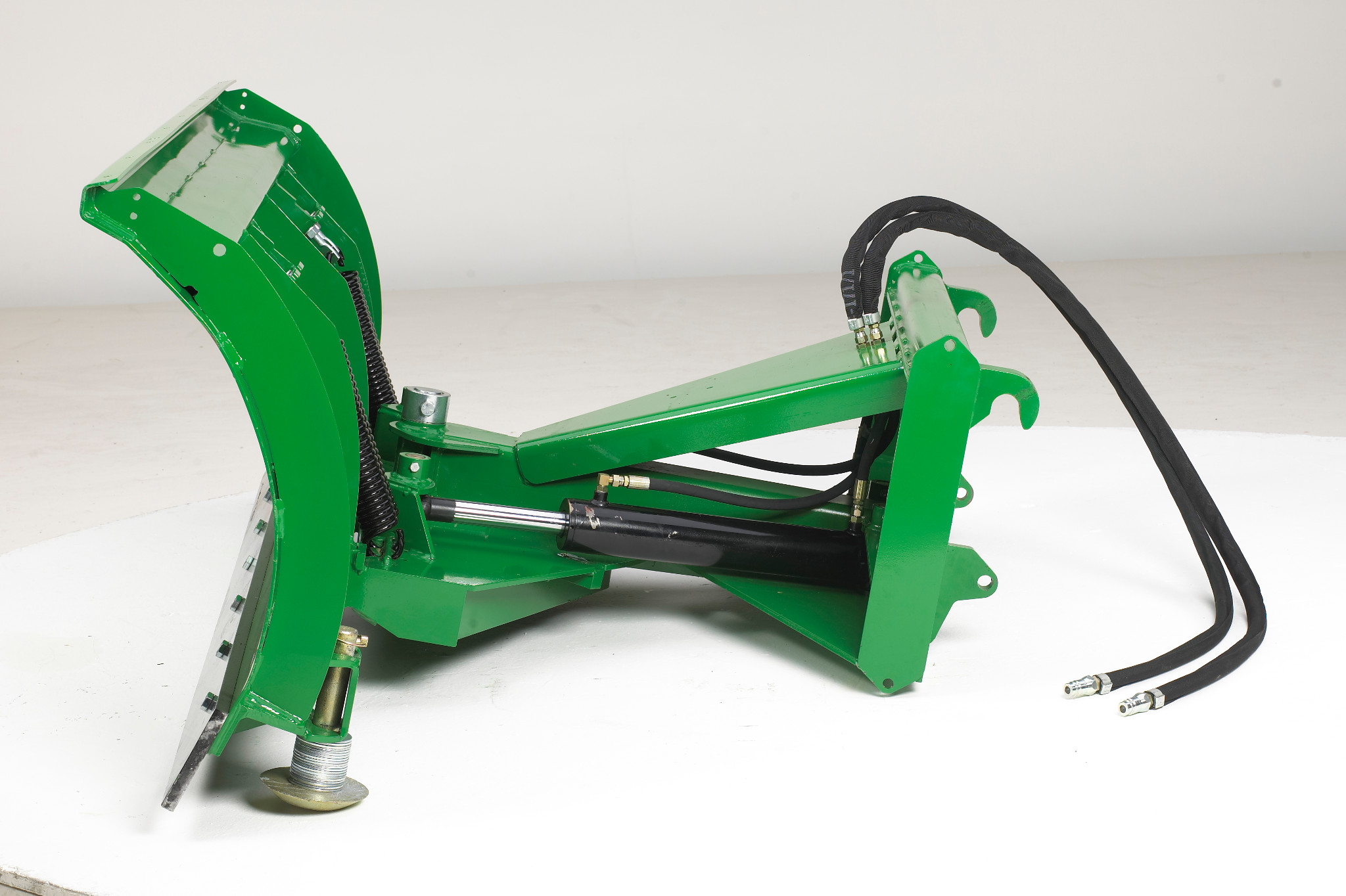

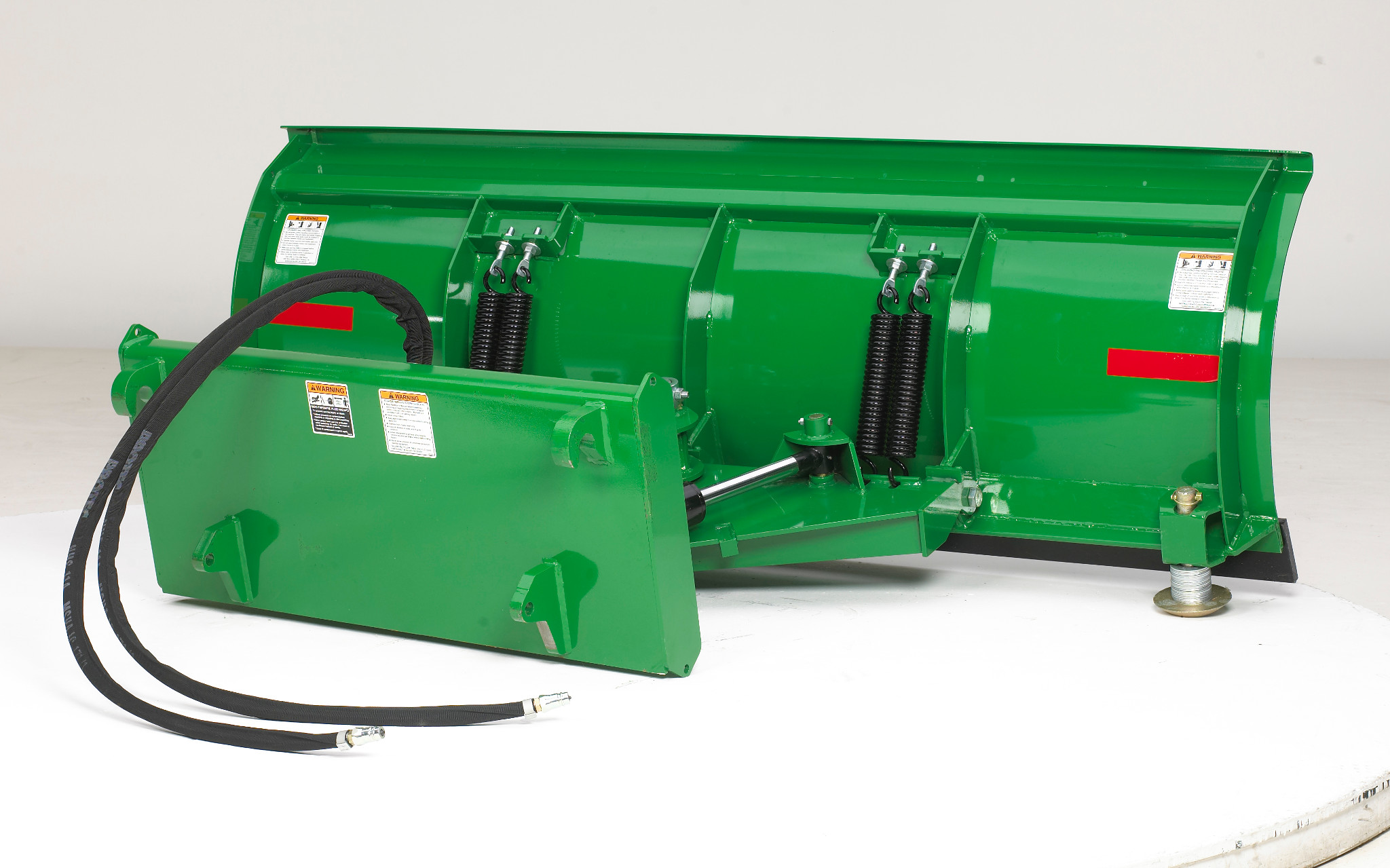

Hydraulic Angle Adjustment for Hard-to-Reach Places
The hydraulically controlled angle can be adjusted 30 degrees to each side to overcome the toughest spots. This feature saves time and creates professional-grade results. A loader third-function hydraulic line is required.
Twice the Durability and Work Life With Reversible Cutting Edges
The heat-treated steel cutting edge on the Frontier™ AF11 and AF12 Series Front Blades are reversible for twice the durability and work life.
Specifications
Dimensions
| Width | 72 in. |
| Width | 182.9 cm |
| Height | 23 in. |
| Height | 58.4 cm |
| Depth | 34 in. |
| Depth | 86.4 cm |
| Cutting Width | 72 in. |
| Cutting Width | 182.9 cm |
| Weight, Shipping | 430 lb. |
| Weight, Shipping | 195 kg |
| Weight, Operating | 400 lb. |
| Weight, Operating | 181.4 kg |
Skid Shoes
| Skid Shoes Standard | Yes |
Weight
| Operational Weight | 400 lb. |
| Operational Weight | 181.4 kg |
| Shipping Weight | 430 lb. |
| Shipping Weight | 195 kg |
Moldboard
| Moldboard Thickness | 0.13 in. |
| Moldboard Thickness | 3.4 mm |
| Moldboard Thickness | 10 gauge |
| Moldboard Height | 23.2 in. |
| Moldboard Height | 589 mm |
Setup Time
| Setup Time Labor Hours | 0.5 hr |
Warranty
| Warranty Time Period | One year |
Attachment Carrier
| Current Series Style | 300, 400, 500 |
Angle/Pivot
| Angle/Pivot Standard Adjustment | Manual |
| Angle/Pivot Degrees (Each Side) | 30 |
