John Deere AF10F
Double tap to zoom
AF10F
Tractor Attachments and Implements
Overview:

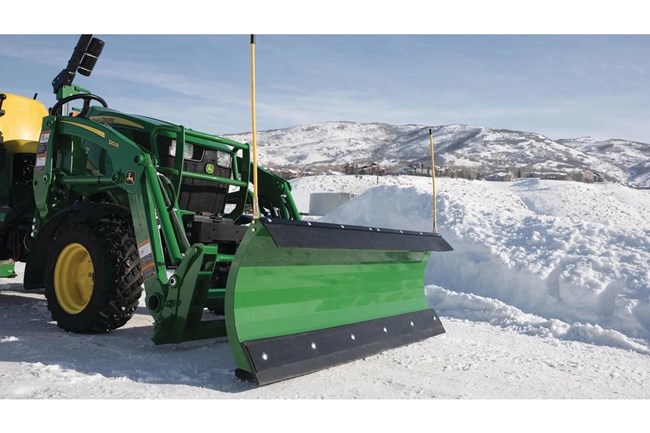

The Frontier™ AF10F boasts a reversible cutting edge for double durability, trip-edge protection, easy 30-degree angle adjustments, and quick-change compatibility for tool-free attachment. Skid shoes prevent ground damage, enhancing efficiency and versatility across diverse applications
- Reversible Cutting Edges
- Trip-Edge Protection
- Optional Skid Shoes
- Optional Hydraulic Angle Adjustment Unit Available
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

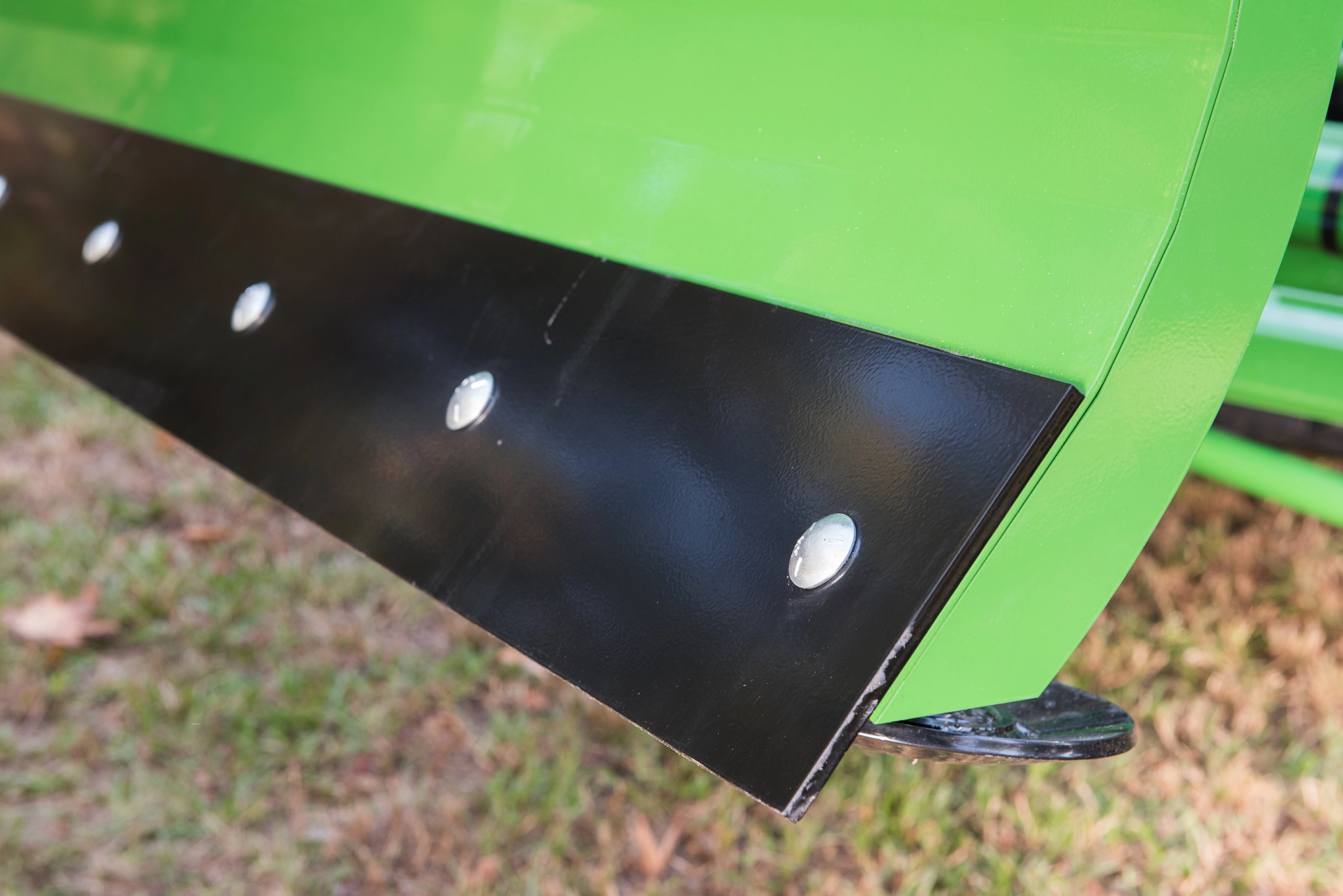

Twice the Durability and Life with Reversible Cutting Edge
The reversible cutting edge enhances performance and extends working life. For improved performance on textured surfaces, the urethane cutting edge is available.

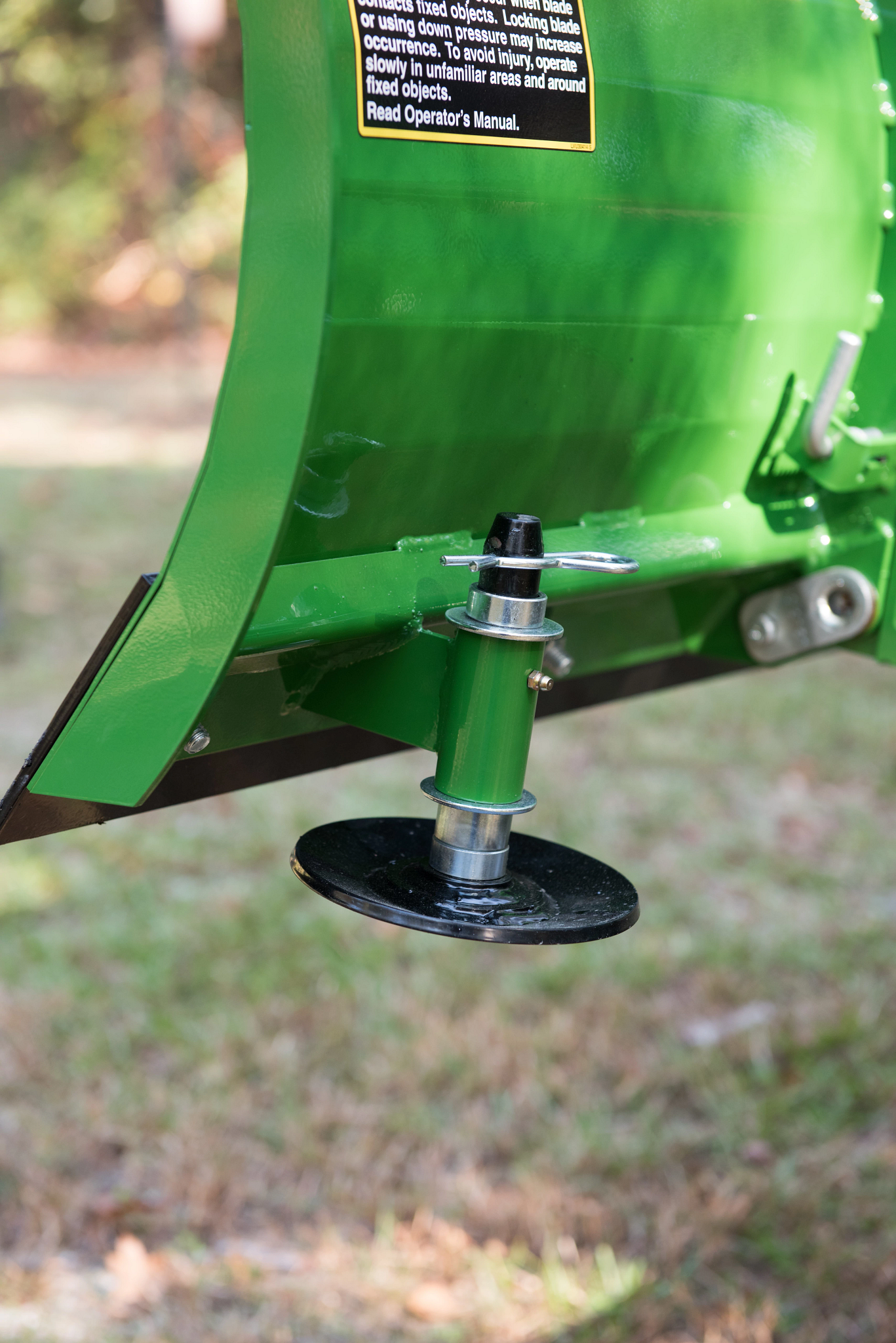

Skid Shoes Prevent Ground Gouging
The steel skid shoe extends the life of the cutting edge while avoiding damage to the working surface. To prevent damage to textured surfaces while prolonging the life of the cutting edge, urethane skid shoes are available.

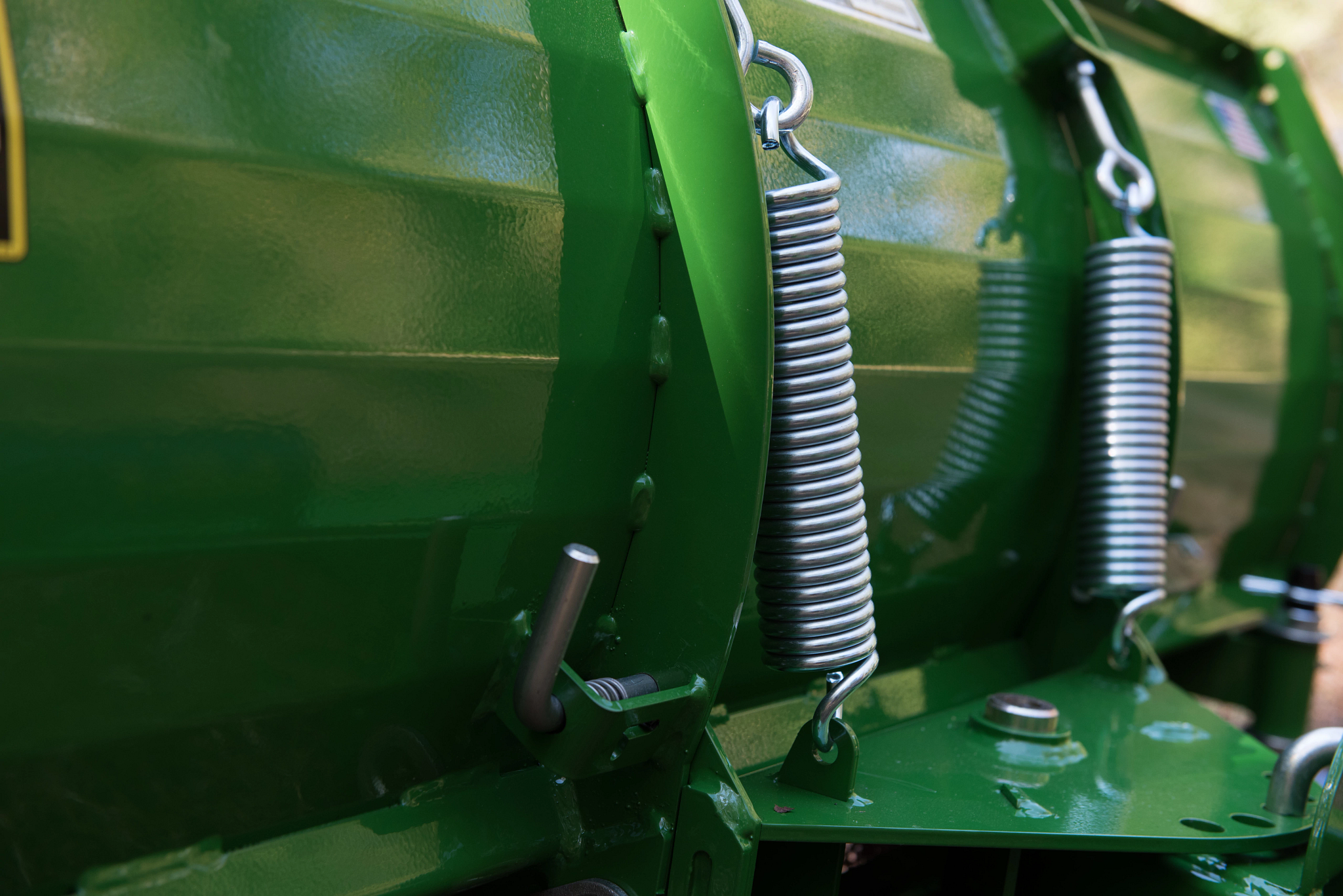

Trip-Edge Protection Prolongs Working Life
The trip edge protects the blade, loader, and tractor if the edge of the blade contacts an obstacle.
Specifications
Dimensions
| Height | 21 in. |
| Height | 53.3 cm |
| Cutting Width | 151.3 cm |
| Cutting Width | 59.6 in. |
| Depth | 67.3 cm |
| Depth | 26.5 in. |
| Width | 151.3 cm |
| Width | 59.6 in. |
| Weight, Shipping | 98.4 kg |
| Weight, Shipping | 217 lb. |
| Weight, Operating | 77.6 kg |
| Weight, Operating | 171 lb. |
Skid Shoes
| Skid Shoes Standard | Yes |
Weight
| Operational Weight | 171 lb. |
| Operational Weight | 77.6 kg |
| Shipping Weight | 217 lb. |
| Shipping Weight | 98.4 kg |
Hydraulic Cylinders
| Hydraulic Cylinder Type | None |
Moldboard
| Moldboard Height | 53.3 mm |
| Moldboard Height | 21 in. |
| Moldboard Thickness | 12 gauge |
| Moldboard Thickness | 2.8 mm |
| Moldboard Thickness | 0.109 in. |
Setup Time
| Setup Time Labor Hours | 0.5 hr |
Warranty
| Warranty Time Period | 2 year |
Attachment Carrier
| Current Series Style | H120 and H130 |
Angle/Pivot
| Angle/Pivot Degrees (Each Side) | 31 and 60 degree (angle) |
| Angle/Pivot Standard Adjustment | Manual |
Additional Information
| Date Collected | 2016-12-05 |
