Features

Effective Two-Stage Design

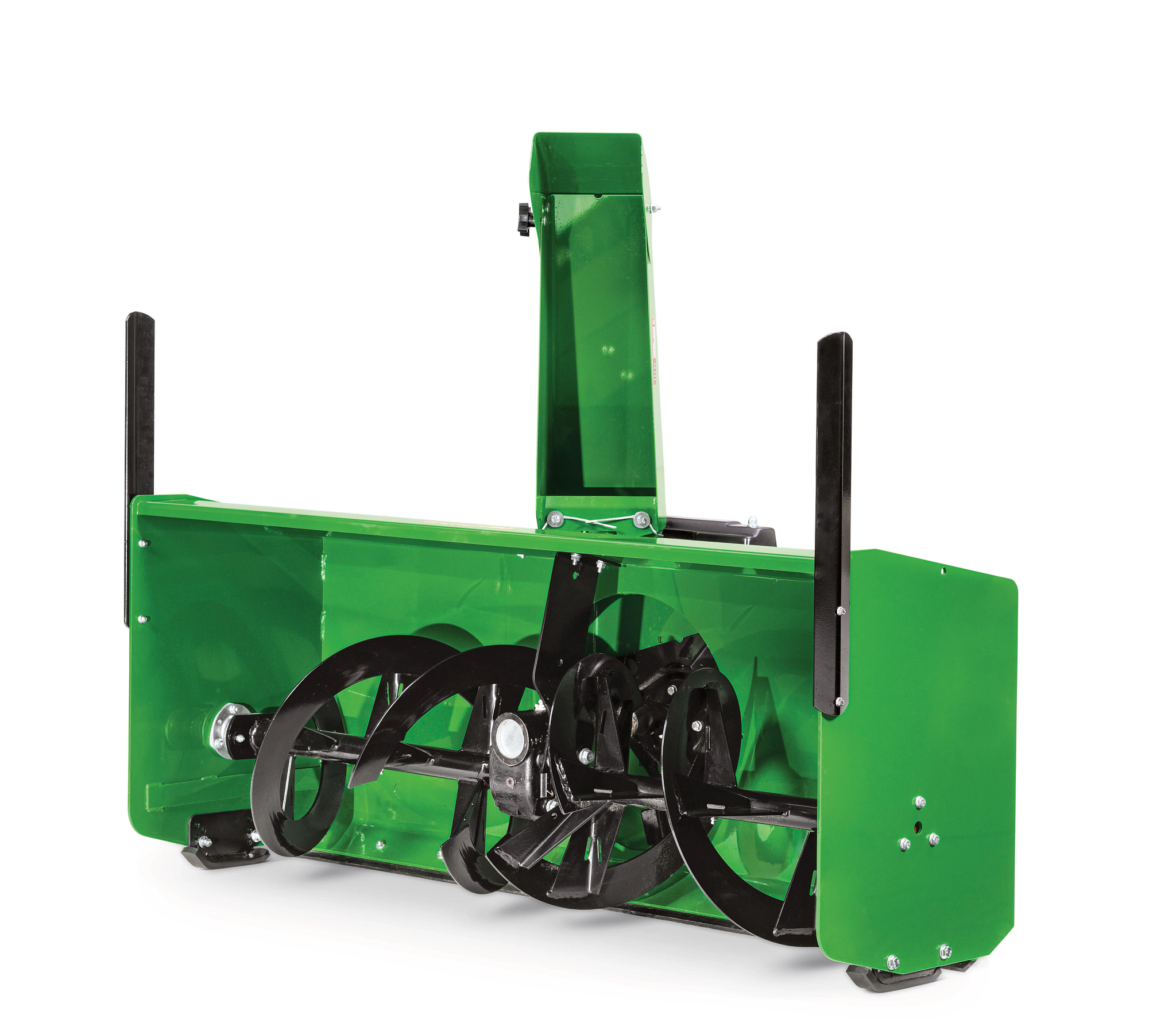

A green snow blower attachment with a wide front intake housing, dual rotating metal augers, a tall discharge chute, and a smooth exterior housing

The two-stage design effectively handles deep snowfall by using a low-speed auger to gather snow and move it to a high-speed impeller, which then blows it out of the chute. This design enhances snow processing, offering a 23-in. (58.4-cm) housing height and a 16-in. (40.6-cm) diameter auger.

Robust Front 3-Point Hitch

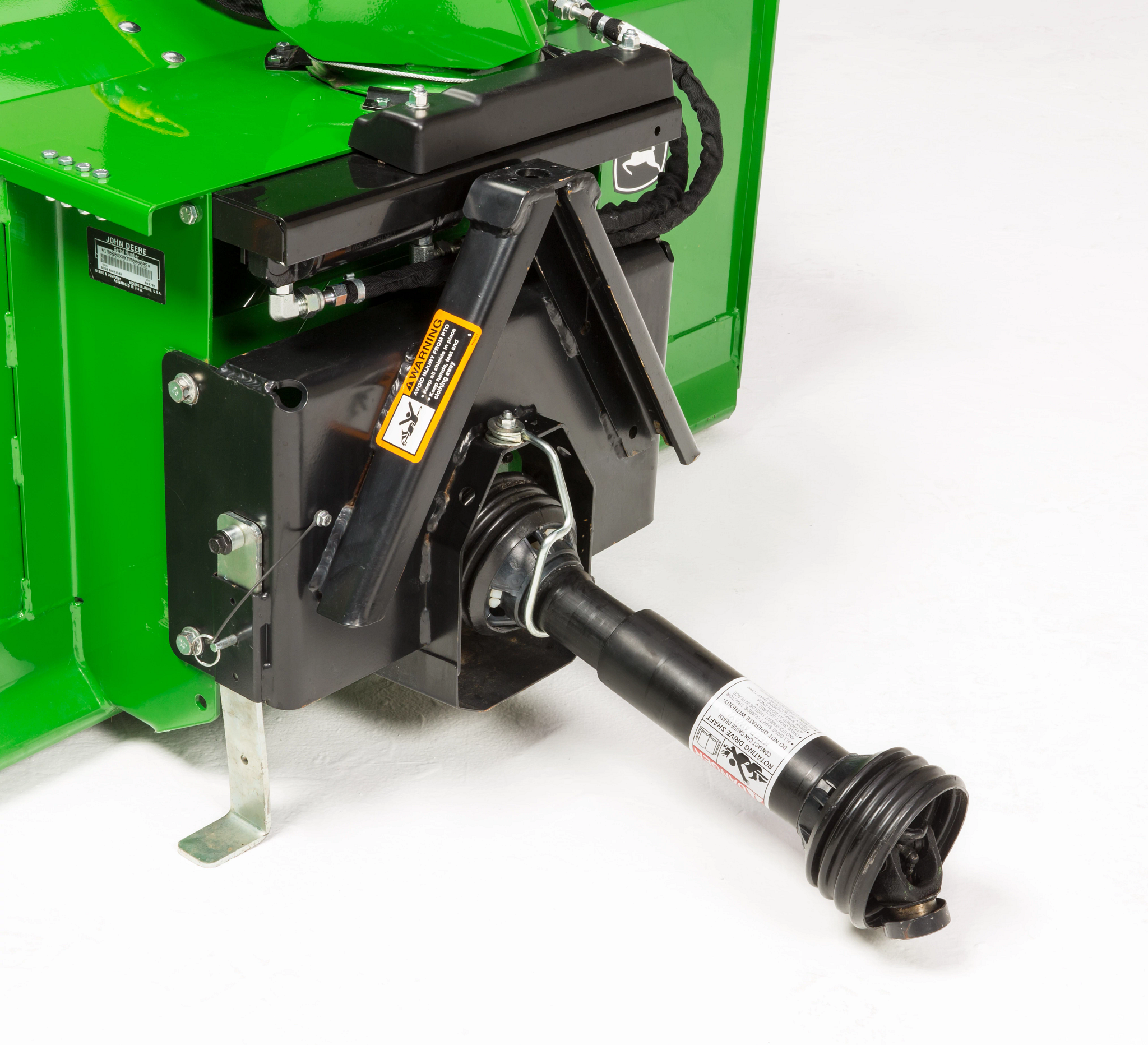

Snow blower portion of A-frame quick attach system installed on 60-inch Heavy-Duty Snow Blower

The robust front 3-point hitch allows quick attachment of implements, boasting added strength and longer life. Its consistent levelness throughout lift travel improves maneuverability and snow placement, while allowing rapid equipment changes with minimal effort.

Heavy-Duty Drive is Easy to Attach

Close-up of a 60-inch Heavy-Duty Snow Blower's heavy-duty helical gearbox

Featuring a telescoping universal joint drive shaft, the heavy-duty drive is easy to attach. The durable cast-iron helical gearcase maximizes engine horsepower, ensuring remarkable snow throwing capacity and distance, enhancing performance even in tough conditions.

Specifications

Scraper Blade

TypeReversible and replaceable

Spout

Diameter7.25 in.
Diameter184 mm
Rotation200 degree (angle)
Rotation ControlHydraulic remote control

Dimensions

Overall Width61.5 in.
Overall Width1562 mm
Clearing Width59 in.
Clearing Width1500 mm
Height Of Opening23 in.
Height Of Opening584 mm
Housing Thickness0.075 in.
Housing Thickness1.9 mm
Side Panel Thickness0.25 in.
Side Panel Thickness6.35 mm
Height To Top Of Chute Deflector51.8 in.
Height To Top Of Chute Deflector1315 mm
Housing Depth17 in.
Housing Depth432 mm

Auger

Auger Diameter16 in.
Auger Diameter406 mm
Auger Speed189-199 rpm
Auger Drive GearboxCast-iron worm gearcase with 1.25-in. (32-mm) output shafts
Auger ProtectionShear bolt for each auger half, four shell-mounted extra shear bolts

Weight

Approximate Weight443 lb.
Approximate Weight201 kg

Setup Time

Attaching Time4 min.
Removal Time3 min.

Lift System

TypeHydraulic cylinder on front 3-point hitch

Blower

Speed898-943 rpm
Blower Fan MaterialWelded steel
Blower Fan Size3.94 x 16 in.
Blower Fan Size100 x 406 mm
BearingSealed ball bearings

Additional Information

Date Collected2021-11-03
