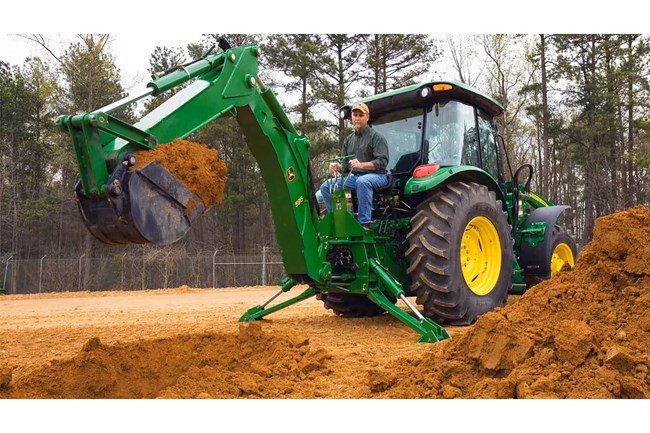

John Deere 595

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / 595

Double tap to zoom



Features

Full 180-Degree Swing

Rear right view of a 595 backhoe on grass in front of a wall with boom and bucket curled up in transport mode

This backhoe features a full 180-degree swing, enhancing trenching productivity by allowing operations perpendicular to the tractor's centerline. Its double-acting swing cylinders ensure compact, stable design, providing extra torque for backfilling tasks.

Four-Bar Linkage System

Side right view of a 959 backhoe's back end, boom, and bucket in front of a dirt and grass hill

The backhoe's four-bar linkage system enables a full 180-degree bucket rotation. This design allows for efficient digging of straight walls and prevents material spills at loading heights, maximizing productivity during various excavation tasks.

Quik-Tatch™ Subframe Mounting

Studio close-up of a backhoe's Quik-Tatch subframe for 5 series tractors

The Quik-Tatch™ subframe allows the backhoe to securely mount onto 5 Series Tractors, delivering essential stability by reducing unwanted vertical or side-to-side movement. This mounting also protects the tractor chassis by effectively coupling the tractor with the backhoe for optimal weight distribution.

Specifications

Dimensions

Transport Height8.67 ft
Undercut22 in.
Transport Overhang5.08 ft
Reach From Center Line of Swing Pivot3.63 m
Stabilizer TypeHydraulic
Loading Height (Bucket at 60 Degrees)2.5 m
Digging Depth2.84 m
Loading Reach (Bucket at 60 Degrees)5.08 ft
Stabilizer Spread Width - Up5.33 ft
Stabilizer Spread Width - Down2.95 m
Transport Height2.64 m
Undercut33.5 cm
Transport Overhang1.55 m
Reach From Center Line of Swing Pivot11.92 ft
Digging Depth9.33 ft
Loading Reach (Bucket at 60 Degrees)1.55 m
Loading Height (Bucket at 60 Degrees)8.17 ft
Stabilizer Spread Width - Up1.63 m
Stabilizer Spread Width - Down9.67 ft

Backhoe

Hydraulic Relief Setting2400 psi
Hydraulic Relief Setting16547 kPa
Boom Lift Capacity410.5 kg
Boom Lift Capacity905 lb.
Swing Arc180 degree (angle)
Bucket Rotation180 degree (angle)
SAE Bucket Digging Force5532 lbf
SAE Bucket Digging Force24608 N
SAE Dipperstick Digging Force3065 lbf
SAE Dipperstick Digging Force13634 N

Bucket

Bucket Widths14, 18, 24, 36, 40 in.
Bucket Widths35.6, 45.7, 61, 91.4, 101.6 cm
