Features

Heavy-Duty Drive System

Side right studio close-up of the connection of a 60-in. heavy duty snow blower onto a 1585 TerrainCut mower

Utilizing a telescoping drive shaft, the heavy-duty cast-iron helical gearcase maximizes engine horsepower, enabling excellent throwing capacity. This drive system ensures sustained performance during snow removal operations, enhancing overall efficiency and reliability.

Strong Front 3-Point Hitch

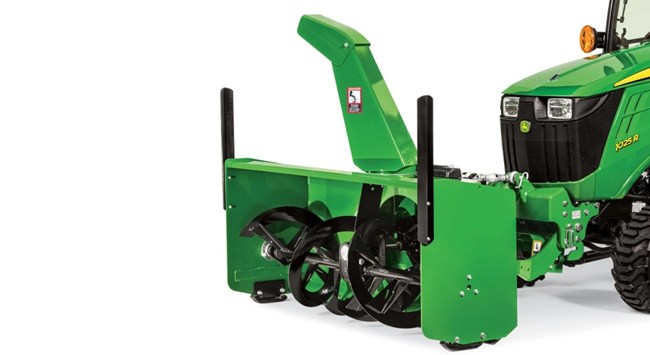

Side angled studio view of a 54 Inch Heavy Duty Snow Blower attaching to a 1025R tractor via front 3-Point Hitch

Featuring a front 3-point hitch, the blower allows for quick and secure attachment. Designed with robustness for strength and durability, this hitch enhances maneuverability and tool-free implement changes, ensuring consistent operation over varied terrain.

Two-Stage Design for Deep Snow

Front studio view of a green 60-in. Heavy-Duty Snow Blower and its two-stage design: auger and impeller

The 54-in. (137.2 cm) Heavy-Duty Snow Blower's two-stage design effectively manages deep snow, using a low-speed auger to gather snow and deliver it to the high-speed impeller for discharge. This configuration increases snow processing, making it highly efficient in challenging winter conditions.

Specifications

Scraper Blade

TypeReversible and replaceable

Spout

Diameter7.25 in.
Diameter184 mm
Rotation200 degree (angle)
Rotation ControlHydraulic remote control

Dimensions

Overall Width56.4 in.
Overall Width1433 mm
Clearing Width54 in.
Clearing Width1372 mm
Height Of Opening23 in.
Height Of Opening584 mm
Housing Thickness0.075 in.
Housing Thickness1.9 mm
Side Panel Thickness0.25 in.
Side Panel Thickness6.35 mm
Height To Top Of Chute Deflector51.8 in.
Height To Top Of Chute Deflector1315 mm
Housing Depth17 in.
Housing Depth432 mm

Auger

Auger Diameter16 in.
Auger Diameter406 mm
Auger Speed189-199 rpm
Auger DriveSplined-coupler PTO shaft to helical gearcase
Auger Drive GearboxCast-iron worm gearcase with 1.25-in. (32-mm) output shafts
Auger ProtectionShear bolt for each auger half, four shell-mounted extra shear bolts

Weight

Approximate Weight421 lb.
Approximate Weight191 kg

Setup Time

Attaching Time4 min.
Removal Time3 min.

Lift System

TypeHydraulic cylinder on front 3-point hitch

Blower

Speed898-943 rpm
Blower Fan MaterialWelded steel
Blower Fan Size3.94 x 16 in.
Blower Fan Size100 x 406 mm
BearingSealed ball bearings

Additional Information

Date Collected2021-11-03
