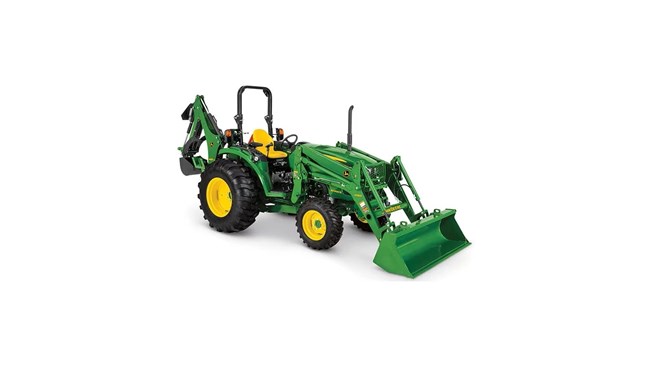

John Deere 485A

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / 485A

Double tap to zoom



Features

Operator Comfort Features

Close-up of a backhoe's external operator station levers and protective bar

The backhoe places emphasis on operator comfort, with controls arranged for ease of use during long workdays. The curved power boom improves visibility of the digging area, and the transport lock system allows secure locking of the swing and boom without leaving the seat.

Seamless Tractor Backhoe Hookup

Side view of an operator standing beside a tractor's rear wheel with a 485A backhoe hookup on the back, extended and resting on grass

The backhoe features a unique 4-point quick-attach system, making attachment and detachment with the tractor seamless. This system, with rockshaft assist, positions the backhoe closer to the tractor, facilitating a simple and tool-free hookup process from the operator’s seat.

Powerful Swing

Close-up of a 485 backhoe's twin double-acting hydraulic cylinders and connection point to swing frame

This backhoe is equipped with a twin double-acting cylinder swing system for precise control. Directly coupled swing cylinders provide substantial torque for backfilling, while the compact swing system design ensures close coupling to the tractor for enhanced stability.

Specifications

Dimensions

Digging Depth2.59 m
Digging Depth8.5 ft
Loading Height (Bucket at 60 Degrees)2 m
Loading Height (Bucket at 60 Degrees)6.58 ft
Reach From Center Line of Swing Pivot3.55 m
Reach From Center Line of Swing Pivot11.65 ft
Transport Height2.33 m
Transport Height7.64 ft
Loading Reach (Bucket at 60 Degrees)1.29 m
Loading Reach (Bucket at 60 Degrees)4.23 ft
Transport Overhang1.34 m
Transport Overhang4.4 ft
Undercut48 cm
Undercut19 in.
Stabilizer Spread Width - Up1.32 m
Stabilizer Spread Width - Up4.33 ft
Stabilizer Spread Width - Down2.41 m
Stabilizer Spread Width - Down7.91 ft

Backhoe

Swing Arc170 degree (angle)
Bucket Rotation180 degree (angle)
Boom Lift Capacity372 kg
Boom Lift Capacity820 lb.
SAE Dipperstick Digging Force10893 N
SAE Dipperstick Digging Force2449 lbf
SAE Bucket Digging Force16689 N
SAE Bucket Digging Force3752 lbf
Bucket Control Main Relief Valve Pressure17580 kPa
Bucket Control Main Relief Valve Pressure2250 psi

Bucket

Bucket Widths22.8, 30.5, 40.6, 45.7, 50.8, 61 cm
Bucket Widths9, 12, 16, 18, 20, 24 in.
Shipping Weight22.2 cm (9 in.): 32 kg (70 lb); 30.5 cm (12 in.): 37 kg (82 lb); 40.6 cm (16 in.): 42 kg (92 lb); 45.7 cm (18 in.) heavy duty: 48 kg (106 lb); 50.8 cm (20 in.): 48 kg (106 lb); 61 cm (24 in.): 54 kg (120 lb)

Weight

Weight With Frame Adapter and 24-in. Bucket651 kg
Weight With Frame Adapter and 24-in. Bucket1435 lb.
