John Deere 485

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / 485

Double tap to zoom



Features

Seamless Tractor Backhoe Hookup

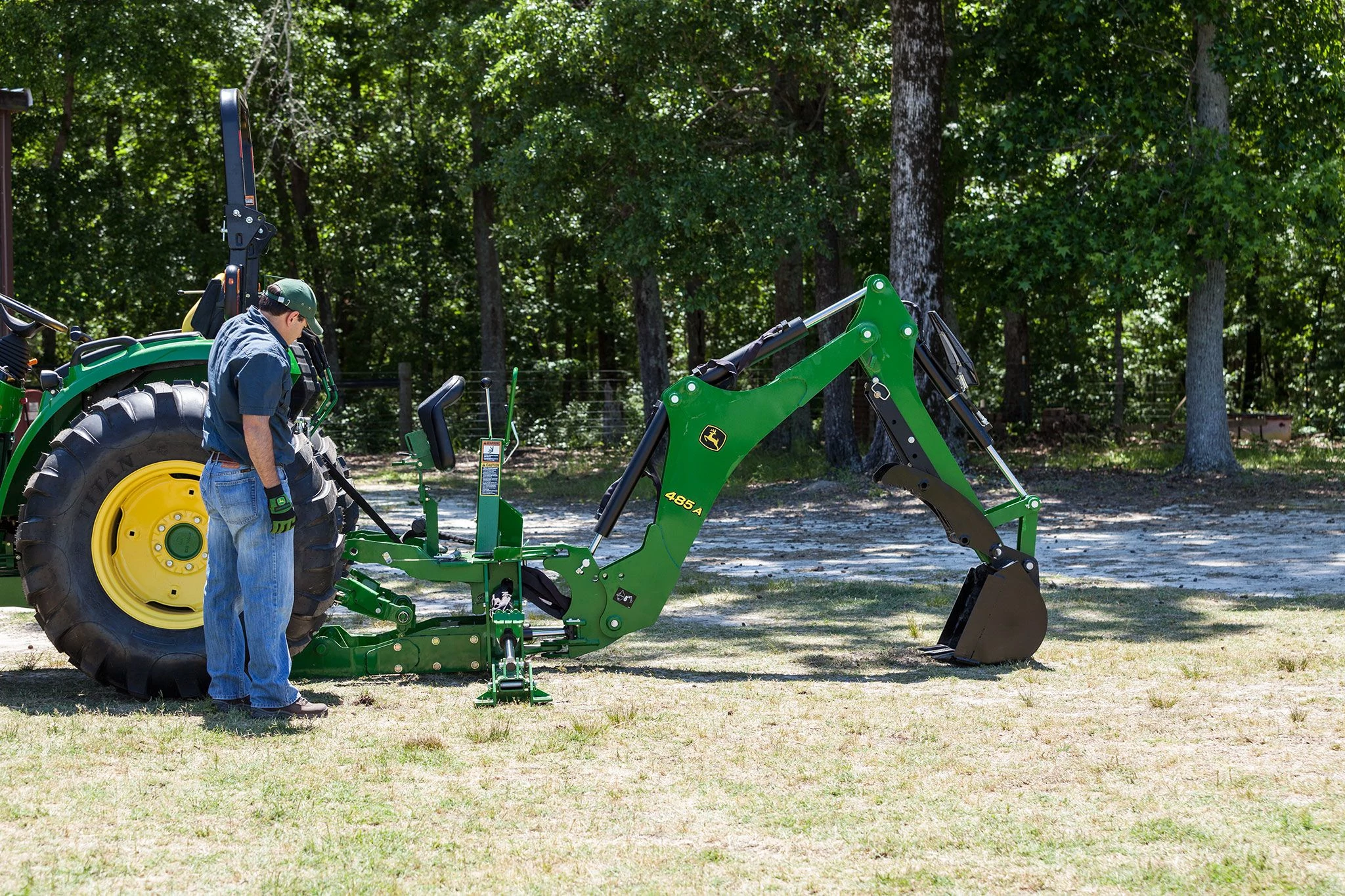

Side view of an operator standing beside a tractor's rear wheel with a 485A backhoe hookup on the back, extended and resting on grass

The backhoe features a unique 4-point quick-attach system, making attachment and detachment with the tractor seamless. This system, with rockshaft assist, positions the backhoe closer to the tractor, facilitating a simple and tool-free hookup process from the operator’s seat.

Powerful Swing

Close-up of a 485 backhoe's twin double-acting hydraulic cylinders and connection point to swing frame

This backhoe is equipped with a twin double-acting cylinder swing system for precise control. Directly coupled swing cylinders provide substantial torque for backfilling, while the compact swing system design ensures close coupling to the tractor for enhanced stability.

Operator Comfort Features

Close-up of a backhoe's external operator station levers and protective bar

The backhoe places emphasis on operator comfort, with controls arranged for ease of use during long workdays. The curved power boom improves visibility of the digging area, and the transport lock system allows secure locking of the swing and boom without leaving the seat.

Specifications

Dimensions

Digging Depth2.67 m
Digging Depth8.75 ft
Loading Height (Bucket at 60 Degrees)2.24 m
Loading Height (Bucket at 60 Degrees)7.33 ft
Reach From Center Line of Swing Pivot3.61 m
Reach From Center Line of Swing Pivot11.83 ft
Transport Height2.29 m
Transport Height7.5 ft
Loading Reach (Bucket at 60 Degrees)1.17 m
Loading Reach (Bucket at 60 Degrees)3.83 ft
Transport Overhang1.32 m
Transport Overhang4.33 ft
Undercut56 cm
Undercut22 in.
Stabilizer Spread Width - Up1.37 m
Stabilizer Spread Width - Up4.5 ft
Stabilizer Spread Width - Down2.51 m
Stabilizer Spread Width - Down8.25 ft

Backhoe

Swing Arc180 degree (angle)
Bucket Rotation180 degree (angle)
Boom Lift Capacity372 kg
Boom Lift Capacity820 lb.
SAE Dipperstick Digging Force10830 N
SAE Dipperstick Digging Force2435 lbf
SAE Bucket Digging Force16590 N
SAE Bucket Digging Force3730 lbf
Bucket Control Main Relief Valve Pressure17580 kPa
Bucket Control Main Relief Valve Pressure2250 psi

Bucket

Bucket Widths30.5, 45.7, 61, 91.4 cm
Bucket Widths12, 18, 24, 36 in.
Shipping Weight30.5 cm (12 in.): 37 kg (82 lb); 45.7 cm (18 in.); 50 kg (111 lb); 61 cm (24 in.); 53 kg (117 lb); 91.4 cm (36 in.): 70 kg (154 lb)

Weight

Weight With Medium Frame Adapter and 24-in. Bucket644 kg
Weight With Medium Frame Adapter and 24-in. Bucket1420 lb.
Weight With Large Frame Adapter and 24-in. Bucket662 kg
Weight With Large Frame Adapter and 24-in. Bucket1460 lb.
