Features

Efficient Two-Stage Design

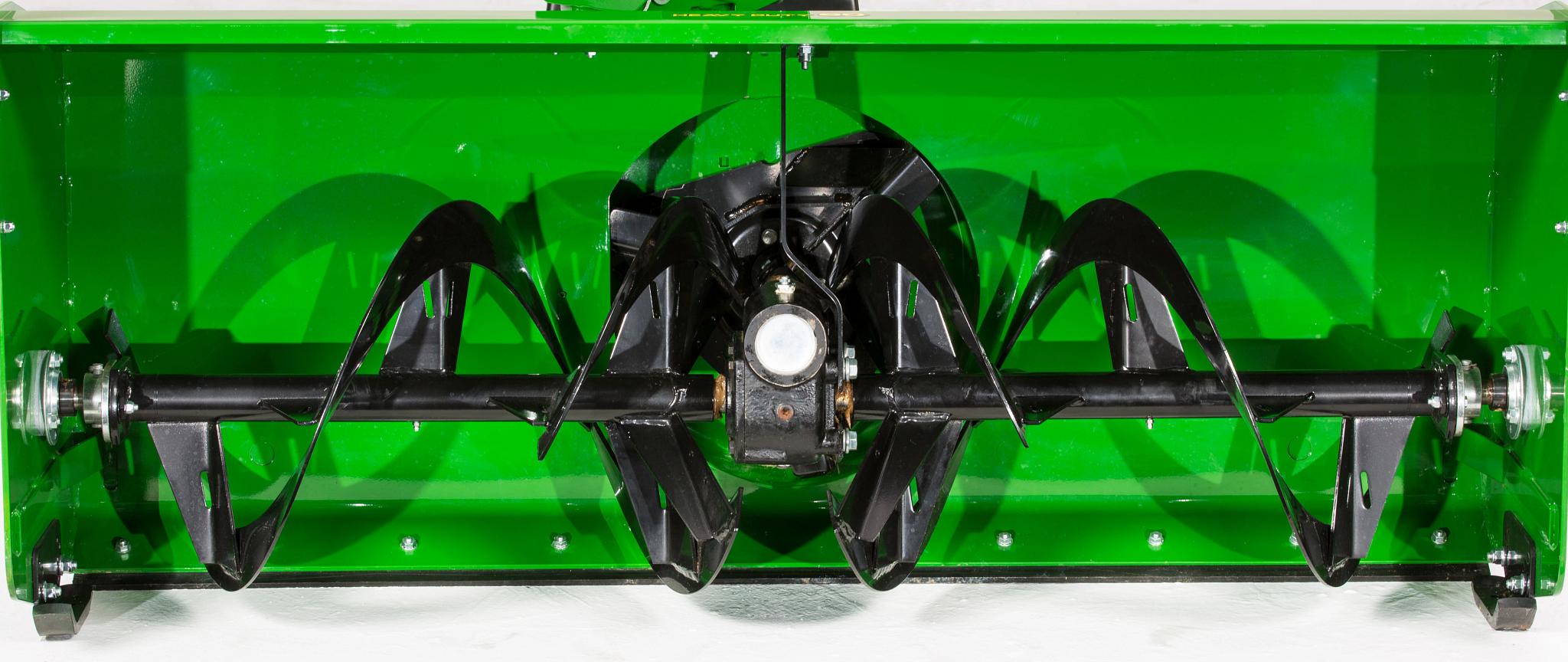

Front studio view of a green 60-in. Heavy-Duty Snow Blower and its two-stage design: auger and impeller

The two-stage design efficiently handles wet, heavy snow. A low-speed auger collects the snow, moving it to the center, where a high-speed impeller blows it out of the discharge chute. This allows snow removal over greater distances and handles volumes of up to 100 lb (45.4 kg) per minute.

Heavy-Duty Cast-Iron Drive

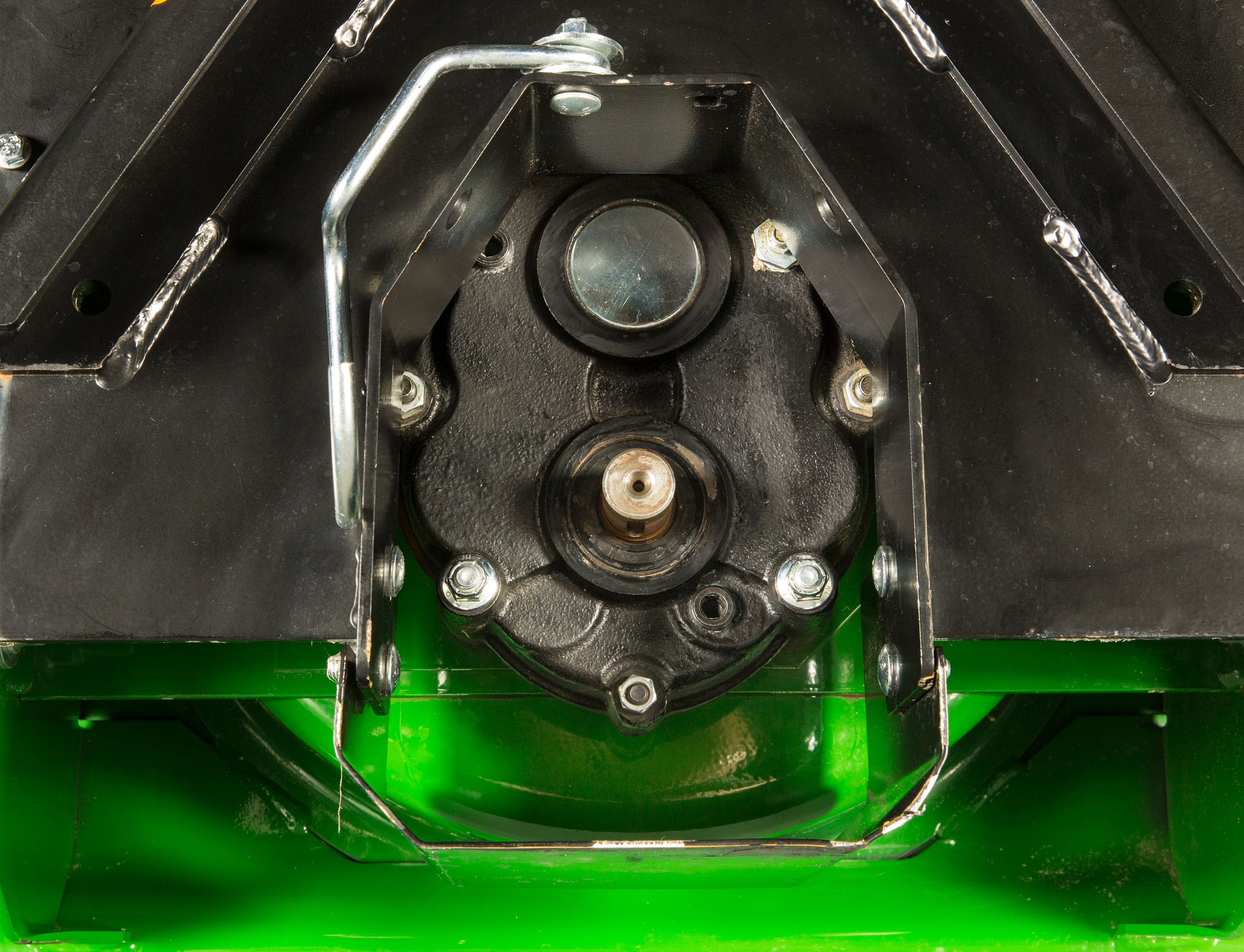

Close-up of a 60-inch Heavy-Duty Snow Blower's heavy-duty helical gearbox

A heavy-duty cast-iron helical gearcase drives the blower impeller, maximizing engine horsepower for excellent snow throwing capacity and distance. The telescoping drive shaft ensures easy attachment, making it efficient and reliable in various snow conditions.

Heavy-Duty Front 3-Point Hitch

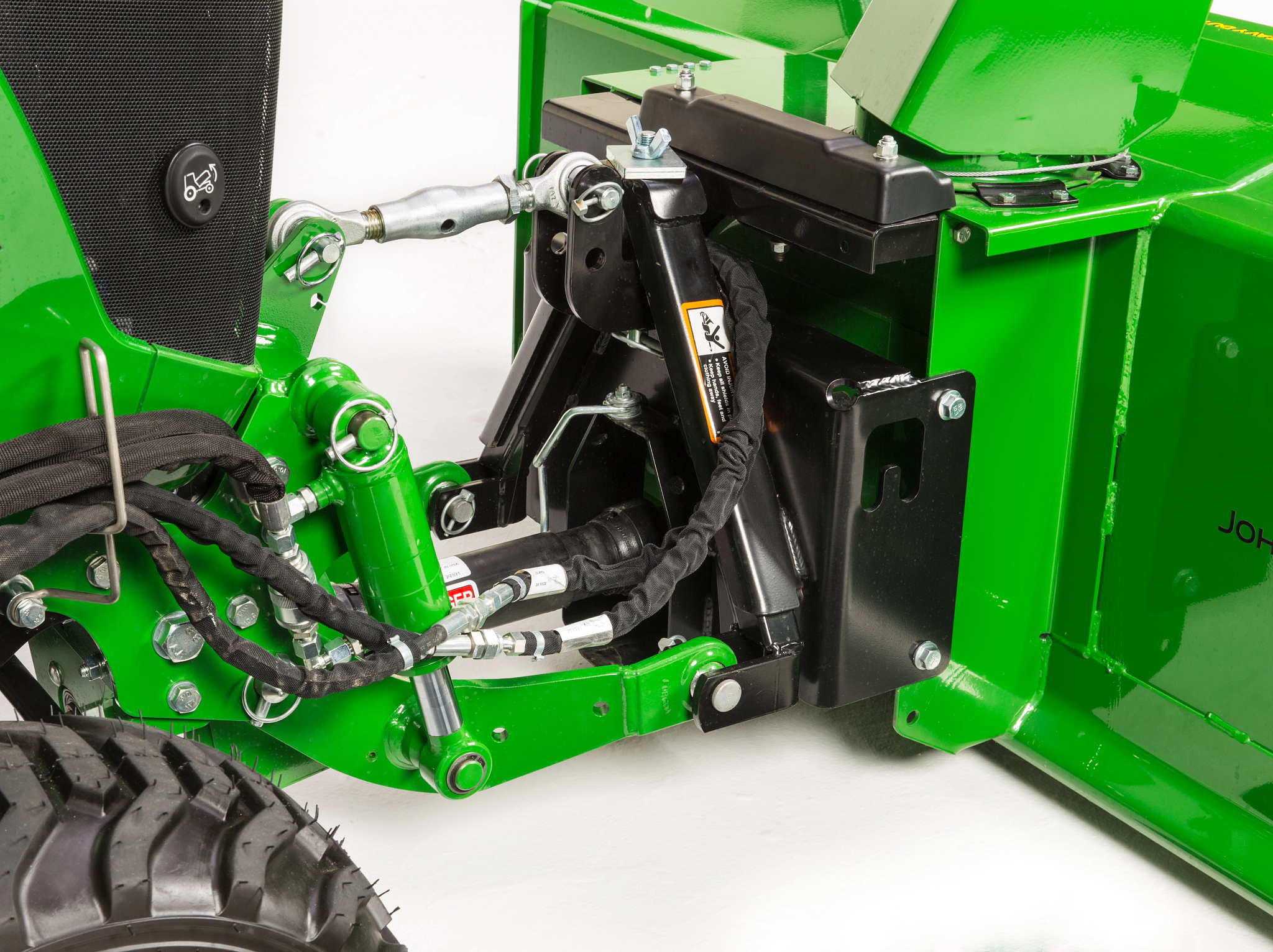

Side angled studio view of a 54 Inch Heavy Duty Snow Blower attaching to a 1025R tractor via front 3-Point Hitch

The heavy-duty snow blower mounts using a robust front 3-point hitch, allowing quick attachment of implements. This design offers added strength and longer life, consistent levelness, improved maneuverability, and faster implement changes with a shared A-frame quick attach system.

Specifications

Scraper Blade

TypeReversible and replaceable

Spout

Diameter7.25 in.
Diameter184 mm
Rotation200 degree (angle)
Rotation ControlHydraulic remote control

Dimensions

Overall Width49.6 in.
Overall Width1260 mm
Clearing Width47 in.
Clearing Width1194 mm
Height Of Opening23 in.
Height Of Opening584 mm
Housing Thickness0.075 in.
Housing Thickness1.9 mm
Side Panel Thickness0.25 in.
Side Panel Thickness6.35 mm
Height To Top Of Chute Deflector51.8 in.
Height To Top Of Chute Deflector1315 mm
Housing Depth17 in.
Housing Depth432 mm

Auger

Auger Diameter16 in.
Auger Diameter406 mm
Auger Speed189-199 rpm
Auger DriveSplined-coupler power take-off (PTO) shaft to helical gearcase
Auger Drive GearboxCast-iron worm gearcase with 1.25-in. (32-mm) output shafts
Auger ProtectionShear bolt for each auger half, four shell-mounted extra shear bolts

Weight

Approximate Weight390 lb.
Approximate Weight177 kg

Setup Time

Attaching Time4 min.
Removal Time3 min.

Lift System

TypeHydraulic cylinder on front 3-point hitch

Blower

Speed898-943 rpm
Blower Fan MaterialWelded steel
Blower Fan Size3.94 x 16 in.
Blower Fan Size100 x 406 mm
BearingSealed ball bearings

Additional Information

Date Collected2021-11-03
