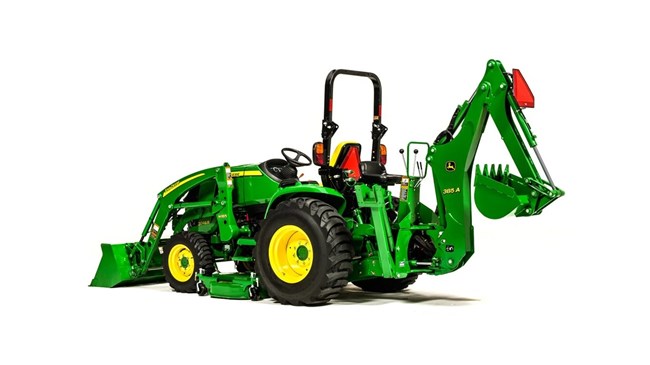

John Deere 385A

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / 385A

Double tap to zoom



Features

Tractor Backhoe Hookup

Left side view of a 3046R OOS tractor in grassy yard with operator managing H165 loader and 375A backhoe attachments

The backhoe's mainframe locks into rear tractor brackets, eliminating vertical and lateral movement for enhanced stability. This design ensures full weight transfer between stabilizers and the loader bucket, protects the tractor chassis by integrating both machines, and allows for quick attachment and detachment once the frame is installed.

Optimal Operator Comfort Features

Designed for optimal comfort, the backhoe offers user-friendly controls and a curved power boom for better visibility during digging. The control console and valve arrangement minimize heat and noise, enhance legroom, and ensure maximum comfort with user-friendly two-lever controls.

Serviceability and Angle of Departure

The platform allows quick service access by enabling easy removal and use of the grab handle to lift the entire valve assembly without adjusting control linkages. It also features efficient hose routing, a single-bolt seat post removal, and an externally mounted boom cylinder, all designed to improve serviceability and trailer loading with generous departure angles.

Specifications

Dimensions

Transport Height7.58 ft
Undercut19 in.
Transport Overhang4.23 ft
Reach From Center Line of Swing Pivot3.55 m
Loading Height (Bucket at 60 Degrees)1.98 m
Digging Depth2.61 m
Loading Reach (Bucket at 60 Degrees)3.64 ft
Stabilizer Spread Width - Up5.15 ft
Stabilizer Spread Width - Down2.41 m
Transport Height2.31 m
Undercut48 cm
Transport Overhang1.29 m
Reach From Center Line of Swing Pivot11.65 ft
Digging Depth8.53 ft
Loading Reach (Bucket at 60 Degrees)1.11 m
Loading Height (Bucket at 60 Degrees)6.5 ft
Stabilizer Spread Width - Up1.57 m
Stabilizer Spread Width - Down7.91 ft

Backhoe

Boom Lift Capacity372 kg
Boom Lift Capacity820 lb.
Swing Arc170 degree (angle)
Bucket Rotation180 degree (angle)
SAE Bucket Digging Force3752 lbf
SAE Bucket Digging Force16689 N
SAE Dipperstick Digging Force2449 lbf
Bucket Control Main Relief Valve Pressure17580 kPa
SAE Dipperstick Digging Force10893 N
Bucket Control Main Relief Valve Pressure2250 psi

Bucket

Bucket Widths9, 12, 16, 18, 20, 24 in.
Bucket Widths22.8, 30.5, 40.6, 45.7, 50.8, 61 cm
Shipping Weight22.2 cm (9 in.): 32 kg (70 lb); 30.5 cm (12 in.): 37 kg (82 lb); 40.6 cm (16 in.): 42 kg (92 lb); 45.7 cm (18 in.) heavy duty: 48 kg (106 lb); 50.8 cm (20 in.): 48 kg (106 lb); 61 cm (24 in.): 54 kg (120 lb)

Weight

Weight With Frame Adapter and 24-in. Bucket630 kg
Weight With Frame Adapter and 24-in. Bucket1390 lb.
