John Deere 375A

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / 375A

Double tap to zoom



Features

Tractor Backhoe Hookup

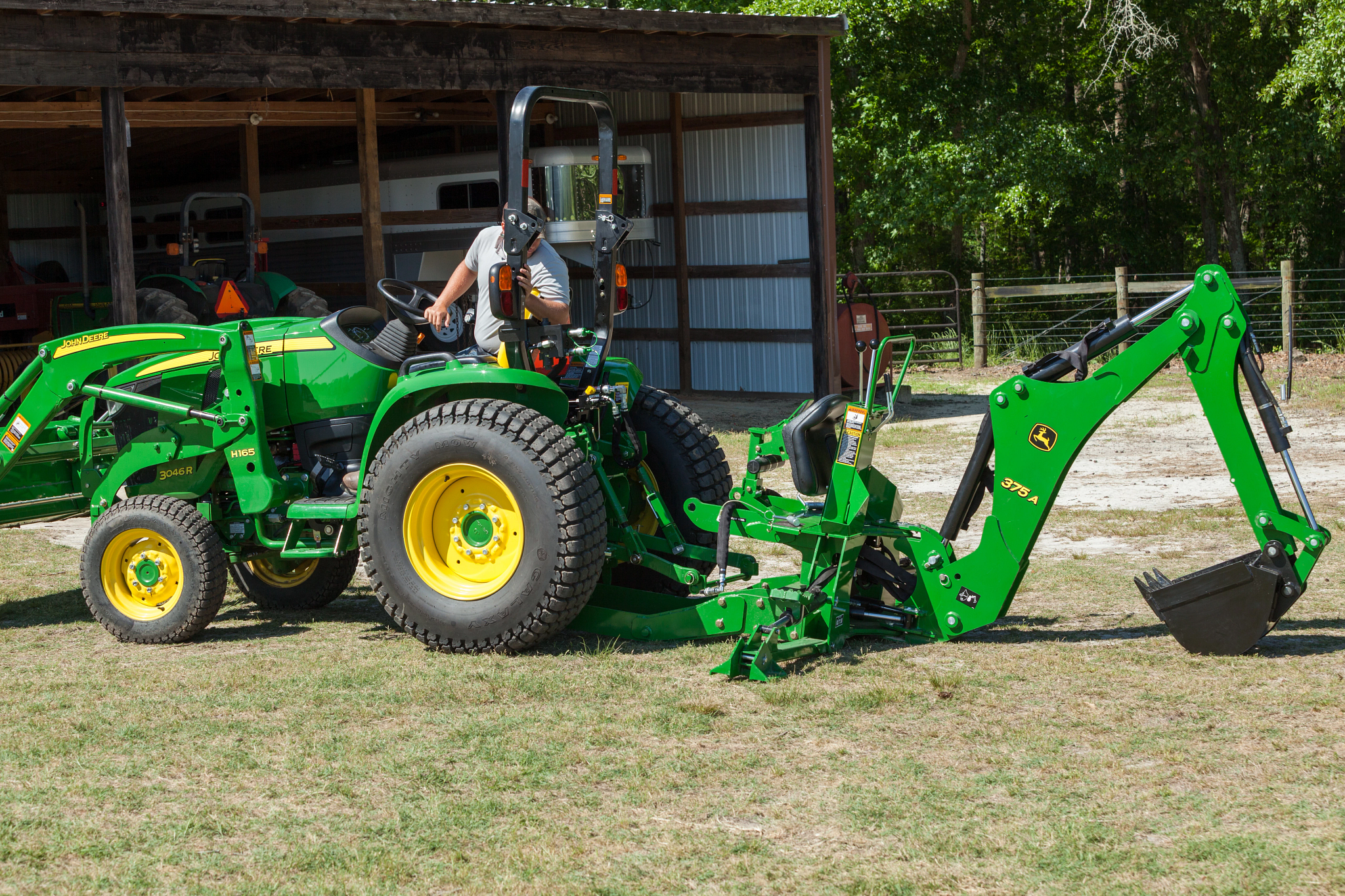

Left side view of a 3046R OOS tractor in grassy yard with operator managing H165 loader and 375A backhoe attachments

The backhoe's mainframe locks into rear tractor brackets, eliminating vertical and lateral movement for enhanced stability. This design ensures full weight transfer between stabilizers and the loader bucket, protects the tractor chassis by integrating both machines, and allows for quick attachment and detachment once the frame is installed.

Optimal Operator Comfort Features

Designed for optimal comfort, the backhoe offers user-friendly controls and a curved power boom for better visibility during digging. The control console and valve arrangement minimize heat and noise, enhance legroom, and ensure maximum comfort with user-friendly two-lever controls.

Serviceability and Angle of Departure

The platform allows quick service access by enabling easy removal and use of the grab handle to lift the entire valve assembly without adjusting control linkages. It also features efficient hose routing, a single-bolt seat post removal, and an externally mounted boom cylinder, all designed to improve serviceability and trailer loading with generous departure angles.

Specifications

Dimensions

Digging Depth2.38 m
Digging Depth7.81 ft
Loading Height (Bucket at 60 Degrees)1.72 m
Loading Height (Bucket at 60 Degrees)5.64 ft
Reach From Center Line of Swing Pivot3.27 m
Reach From Center Line of Swing Pivot10.73 ft
Transport Height2.16 m
Transport Height7.08 ft
Loading Reach (Bucket at 60 Degrees)1.11 m
Loading Reach (Bucket at 60 Degrees)3.64 ft
Transport Overhang1.22 m
Transport Overhang4 ft
Undercut44 cm
Undercut17.5 in.
Stabilizer Spread Width - Up1.67 m
Stabilizer Spread Width - Up5.48 ft
Stabilizer Spread Width - Down2.26 m
Stabilizer Spread Width - Down7.41 ft

Backhoe

Swing Arc170 degree (angle)
Bucket Rotation180 degree (angle)
Boom Lift Capacity270 kg
Boom Lift Capacity595 lb.
SAE Dipperstick Digging Force9078 N
SAE Dipperstick Digging Force2041 lbf
SAE Bucket Digging Force13624 N
SAE Bucket Digging Force3063 lbf
Bucket Control Main Relief Valve Pressure17580 kPa
Bucket Control Main Relief Valve Pressure2250 psi

Bucket

Bucket Widths22.8, 30.5, 40.6, 45.7, 50.8, 61 cm
Bucket Widths9, 12, 16, 18, 20, 24 in.
Shipping Weight22.2 cm (9 in.): 32 kg (70 lb); 30.5 cm (12 in.): 37 kg (82 lb); 40.6 cm (16 in.): 42 kg (92 lb); 45.7 cm (18 in.) heavy duty: 48 kg (106 lb); 50.8 cm (20 in.): 48 kg (106 lb); 61 cm (24 in.): 54 kg (120 lb)

Weight

Weight With Large Frame Adapter and 24-in. Bucket567 kg
Weight With Large Frame Adapter and 24-in. Bucket1250 lb.
