John Deere 366

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / 366

Double tap to zoom



Features

Front 3-Point Hitch With A-Frame Adapter

Studio view of a tractor with attached front blade and a yellow broom and snow blower waiting at the ready on either side

The front 3-point hitch is robust and compatible with a variety of implements, including the 366 Front Blade. It allows for quick attach and detach features, making it efficient for various tasks. It's a European standard design ensuring versatility with other products in the market.

Hydraulic Blade Angling

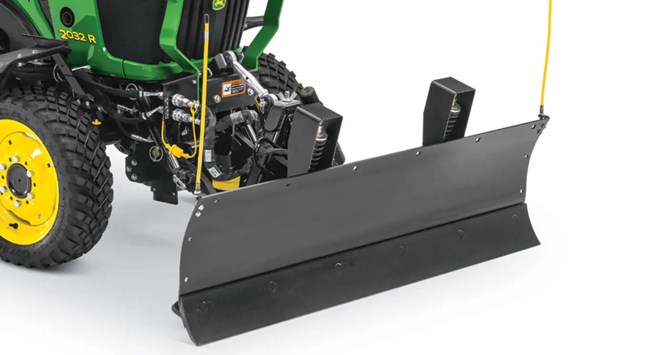

Studio close-up of the cylinders, valves, and components that make up a 366 front blade's hydraulics

The front blade uses a dual selective control valve for easy hydraulic angling up to 30 degrees. The blade's heavy-duty cylinders include a crossover relief valve to prevent damage upon striking objects, making it suitable for a range of tasks from moving gravel to snow plowing.

Compatibility and Versatility

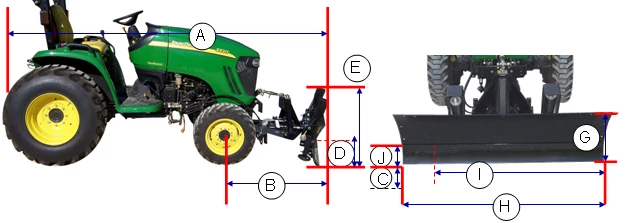

Computer graphic showing letter-labeled measurements of a 366 front blade and tractor combo

Compatible with multiple tractors including model year 2017 and newer 2032R, 2038R, and 3R Series. It offers flexibility in installation, allowing for mid-mount mower usage without removing the entire hitch, enhancing operational efficiency.

Specifications

Dimensions

Cutting Width66 in.
Cutting Width1676 cm
Height, Blade25.25 in.
Height, Blade642 mm
Weight, Blade282 lb.
Weight, Blade128 kg
Depth, Blade4 in.
Depth, Blade102 mm
Distance, To Ground Lifted14 in.
Distance, To Ground Lifted355 mm

Moldboard

Moldboard Thickness0.25 in.
Moldboard Thickness6 mm
Moldboard Height17.25 in.
Moldboard Height438 mm

Cutting Edge

Height, Cutting Edge6 in.
Height, Cutting Edge152 mm
