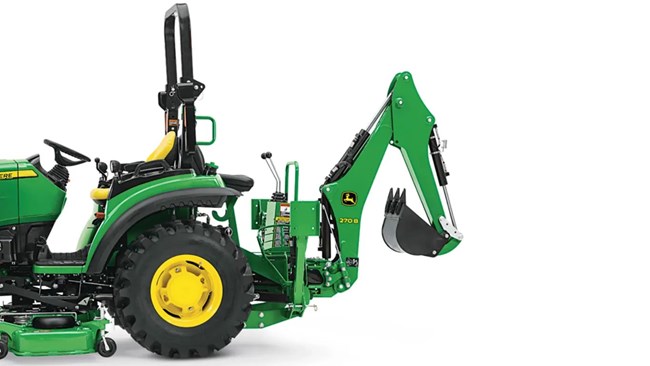

John Deere 270B

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / 270B

Double tap to zoom



Features

Designed for Improved Operator Comfort

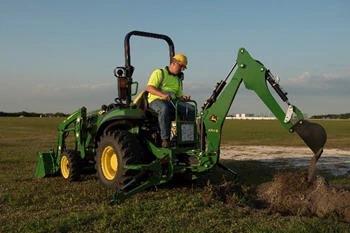

Front angled view of an operator on an open station tractor using an attached 270B backhoe in a field

This backhoe’s operator station enhances comfort with a high-back seat, non-slip grips, and accessible controls. The design includes a strong stance for safe mounting and convenient boom and swing locks accessible from the operator's seat.

Convenient and Easy Operation

Front view of an operator in open station tractor using a 270B backhoe to dig a trench in a flat field at dusk

Designed with practicality in mind, this backhoe offers a pivoting seat for debris prevention, a low-profile console for unobstructed views, and streamlined two-lever control for easier handling, along with a cushioned boom cylinder for smoother operation.

Backhoe Performance

Side left view of an open operator's station 270B Backhoe on a lawn

Engineered for high-quality digging performance by matching the tractor's hydraulic flow and system pressure with the backhoe. Features include valve spools for smooth operation, a durable sub-frame, and optimized bucket design for increased productivity.

Specifications

Dimensions

Digging Depth2.13 m
Digging Depth7 ft
Loading Height (Bucket at 60 Degrees)1.74 m
Loading Height (Bucket at 60 Degrees)6.08 ft
Reach From Center Line of Swing Pivot3 m
Reach From Center Line of Swing Pivot9.75 ft
Transport Height1.92 m
Transport Height6.25 ft
Loading Reach (Bucket at 60 Degrees)1.13 m
Loading Reach (Bucket at 60 Degrees)3.58 ft
Transport Overhang1.1 m
Transport Overhang3.5 ft
Undercut43 cm
Undercut17 in.
Stabilizer Spread Width - Up1.47 m
Stabilizer Spread Width - Up4.83 ft
Stabilizer Spread Width - Down1.92 m
Stabilizer Spread Width - Down6.58 ft

Backhoe

Swing Arc150 degree (angle)
Bucket Rotation180 degree (angle)
Boom Lift Capacity116 kg
Boom Lift Capacity256 lb.
SAE Dipperstick Digging Force6681 N
SAE Dipperstick Digging Force1502 lbf
SAE Bucket Digging Force11005 N
SAE Bucket Digging Force2474 lbf
Bucket Control Main Relief Valve Pressure16350.6 kPa
Bucket Control Main Relief Valve Pressure2370 psi

Bucket

Bucket Widths20.3, 30.5, 40.6 cm
Bucket Widths8, 12, 16 in.
SAE Struck Capacity20.3 cm (8 in.): 0.011 m³ (0.42 cu ft); 30.5 cm (12 in.): 0.019 m³ (0.66 cu ft); 40.6 cm (16 in.): 0.025 m³ (0.9 cu ft)
Heaped Capacity20.3 cm (8 in.): 0.013 m³ (0.46 cu ft); 30.5 cm (12 in.): 0.022 m³ (0.76 cu ft); 40.6 cm (16 in.): 0.03 m³ (1.06 cu ft)
Shipping Weight20.3 cm (8 in.): 40 lb (18.1 kg); 30.5 cm (12 in.): 50 lb (22.7 kg); 40.6 cm (16 in.): 60 lb (27.2 kg)

Weight

Weight With 0.4-m (16-in.) Bucket350 kg
Weight With 0.4-m (16-in.) Bucket773 lb.
