John Deere 6MH 155

New Products / John Deere / John Deere Products / Tractors / High-Value Crop Tractors / 6MH 155

Double tap to zoom



Features

Efficient, More Comfortable 6M Cab

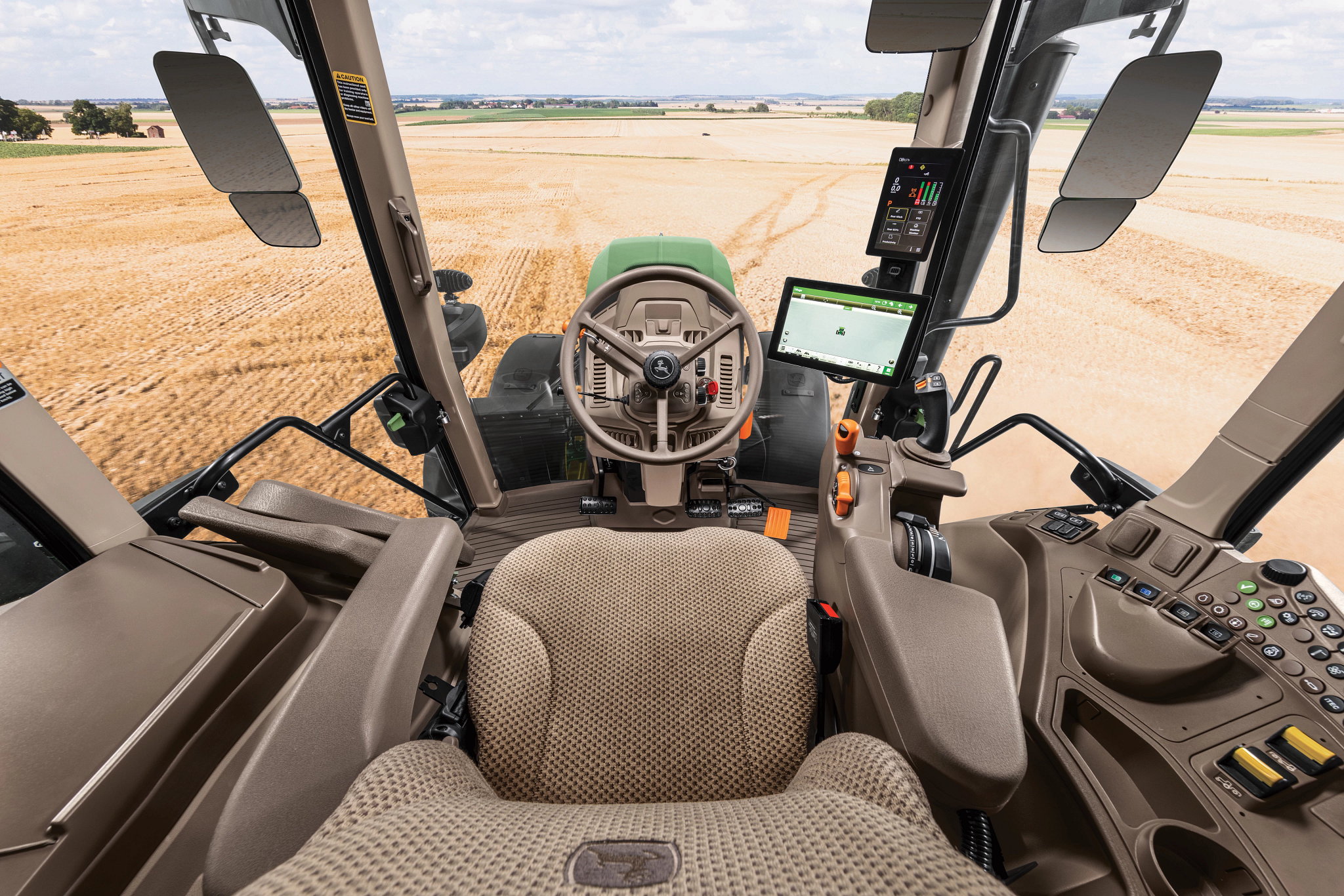

Operator’s view inside John Deere tractor cab showing fabric operator seat, steering wheel, armrest controls, touchscreen displays, and wide windshield overlooking a harvested field.

Your time in the cab can be comfortable and efficient with the 6M interior environment. Built with the operator in mind, we offer three cab customizations, allowing you to select the package that best meets your needs.

Precision Technology to Help Improve Efficiency

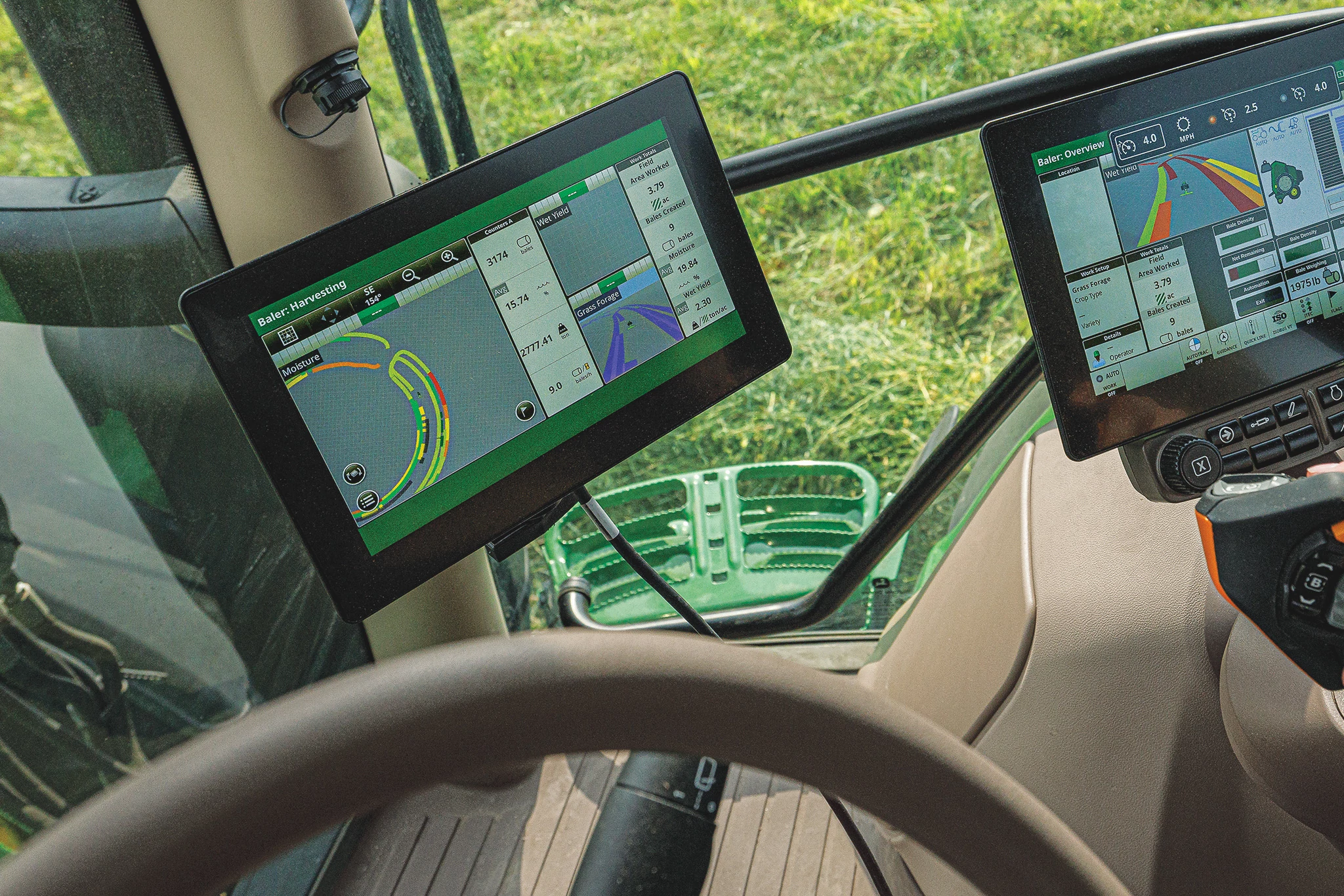

Interior of a John Deere tractor cab showing steering wheel, CommandPRO joystick, and multiple touchscreen displays with guidance and machine data, while operating over a grassy field.

Precision ag technology availability includes AutoTrac™ guidance readiness, JDLink™ connectivity, and an intuitive corner post display to help operators improve accuracy, efficiency, and uptime.

Activation required. JDLink hardware comes standard with the machine. You can turn on JDLink Connected service in your John Deere Operations Center™ account for free. JDLink requires a cellular connection to transfer information from machine to a JDLink website. Consult your John Deere dealer for coverage availability.

Built for High-Clearance

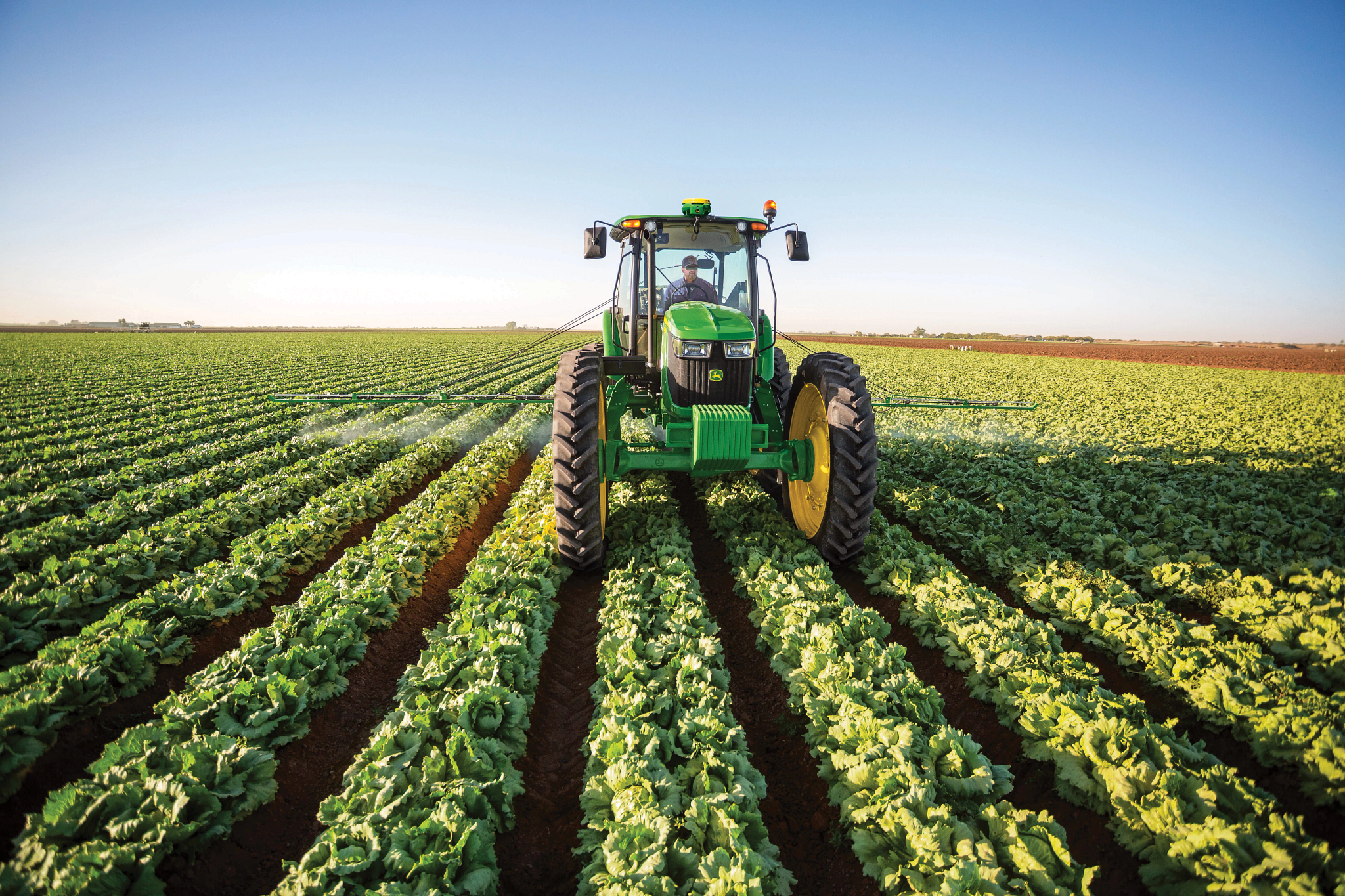

Front view of John Deere row‑crop tractor driving between rows of leafy green crops, with large front tires, enclosed cab, and clear blue sky over a cultivated field.

Ground clearance is critically important for bedded crops. The 6MH 155 offers up to 27 inches (68.6 cm) of clearance from the drawbar to ground.

Specifications

Hydraulics

Hydraulic System TypePressure-and-flow compensated (PFC) system with Load Sensing function
Pump Rated OutputStandard: 45 cc pump: 114 L/min (30 gpm); Optional: 60 cc pump: 155 L/min (41 gpm)
Number of Rear Selective Control Valves (SCVs)Standard: Two ISO couplers; Optional: Two to four ISO couplers
Number of Mid Selective Control Valves (SCVs)3
SCV ControlMechanical/electrical

Engine

Engine MakeJohn Deere PowerTech™ PVS
Engine Model6068HL555
Engine FamilyPVS
Emissions CertificationsStage V
Displacement415 cu in.
Displacement6.8 L
AspirationSingle variable geometry turbocharger
Aftertreatment TypeDiesel particle filter (DPF) with diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) using diesel exhaust fluid (DEF)
Intelligent Power Management (IPM)Additional engine power (hp ISO) at 2100 rpm: 14.9 kW (20 hp)
Rated Engine Speed2100 rpm
Rated Engine Power155 hp
Rated Engine Power116 kW
Rated Engine Power157 PS
Maximum Engine Power168 hp
Maximum Engine Power125 kW
Maximum Engine Power171 PS
Maximum Engine Torque726 Nm
Power Bulge10 %
Torque Rise40 %

Operator Station

ROPS TypeRollover protective structure, OOS
Gearshift LocationConsole
Db(A) Rating70 dBA
Seat SuspensionAir (standard), Mechanical (optional)
Cab SuspensionMechanical Cab Suspension (optional)
Instructional SeatOptional
Primary DisplayCornerpost display (right-hand A-post); Functionality: Performance monitor and individual settings
RadioStandard AM/FM stereo
Inner Cab Volume105.9 cu ft
Inner Cab Volume3 m³
Cab Glass Area52.2 sq ft
Cab Glass Area4.85 m²

Dimensions & Weights

Wheelbase108.9 in.
Wheelbase2765 mm
Base Machine Weight17637 lb.
Base Machine Weight8000 kg
Overall Height130 in.
Overall Height3300 mm
Overall Width100.3 in.
Overall Width2550 mm
Overall Length186.3 in.
Overall Length4733 mm
Front Axle Ground Clearance21.1 in.
Front Axle Ground Clearance535 mm

Rear Hitch

Rear Hitch Category (SAE Designation)3N/3
Maximum Lift Capacity Directly at Coupling Points6800
Lift Capacity Through Full Lift Range at Coupling Points3500 kg (7709 lb) / 3950 kg (8700 lb)
Sensing TypeElectronic at lower link

Capacities

Fuel Tank Capacity75.3 gal.
Fuel Tank Capacity285 L
Diesel Exhaust Fluid (DEF) Tank Capacity4.2 gal.
Diesel Exhaust Fluid (DEF) Tank Capacity16 L
Cooling System Capacity7.2 gal.
Cooling System Capacity27.4 L
Transmission - Hydraulic System16.6 (PQ/AQ/CQ), 16.4 (AP/IVT™) gal.
Transmission - Hydraulic System63.0 (PQ/AQ/CQ), 62.0 (AP/IVT™) L
Crankcase Oil Volume6.2 gal.
Crankcase Oil Volume23.5 L

Electrical System

Battery Voltage12 V
Electrical System Voltage14 V
Battery Capacity154 amp-hr (standard), 174 amp-hr (optional)
Alternator Capacity125 amp (standard), 250 amp (optional)

Rear Power Take-Off (PTO)

Rated PTO Power120 hp
Rated PTO Power90 kW
Rated PTO Power122 PS
Engine rpm at Rated PTO Speeds (540/1.000)1997/2010
Engagement MethodIn-cab switch and optional external fender-mounted remote control

Drawbar

Drawbar CategoryCategory 2
Maximum Vertical Load1200-2000 kg (2649-4409 lb); Maximum vertical load dependent on drawbar position

Technology Integration

GuidanceOptional: AutoTrac™ with Universal Display
Connectivity JDLink™
Remote Diagnostics JDLink™

Additional Information

Country of ManufactureGermany
Date Collected2024_06_25T00:00:00.0000000

Transmission

Transmission TypeJohn Deere 20-speed AutoQuad™ Plus 30 km/h; Optional: John Deere 16-speed PowrQuad™ Plus 30 km/h, AutoPowr™/IVT™ 30 km/h; Creeper available: PowrQuad™ Plus and AutoQuad™ Plus
CreeperOptional
ReverserElectronic left-hand reverser

Machine Configuration

Wheel or Track ConfigurationWheel
Drive Type4WD

Tires

Front Tires Size320/90R50
Rear Tires Size320/90R50

Front PTO

Front PTO RotationElectrohydraulically engaged with oil-cooled, multi-disc design
Maximum PTO Power139 hp
Maximum PTO Power103 kW
Maximum PTO Power141 PS

Front Hitch

Front Hitch Category3N
Lift Capacity Through Full Lift Range at Coupling Points7269 lb.
Lift Capacity Through Full Lift Range at Coupling Points3300 kg
Electric PowerSeven-pin electrical socket

Rear Axle

Rear Axle TypeHigh Crop Drop Flange-Type Rear Axle
Rear Differential LockElectrohydraulically with oil-cooled clutch
Final Drive2 stage spur gear

Front Axle

Front Axle TypeMFWD; Optional: Triple-Link Suspension (TLS) MFWD axle (hydro-pneumatic, permanently active, triple link, self-leveling suspension with 100-mm [3.9-in.] suspension range), Triple-Link Suspension MFWD with brakes
Front Axle Differential LockSelf-locking differential

Steering & Brakes

Steering TypeDynamic load sensing, hydrostatic, flow metering
