Features
Practical Technology for Consistent Performance
Standard technology features include an intuitive operator interface, ergonomic controls, and a clear instrumentation panel. These models are designed for reliable performance with practical electronic integration that supports efficiency, uptime, and ease of use in everyday operations.

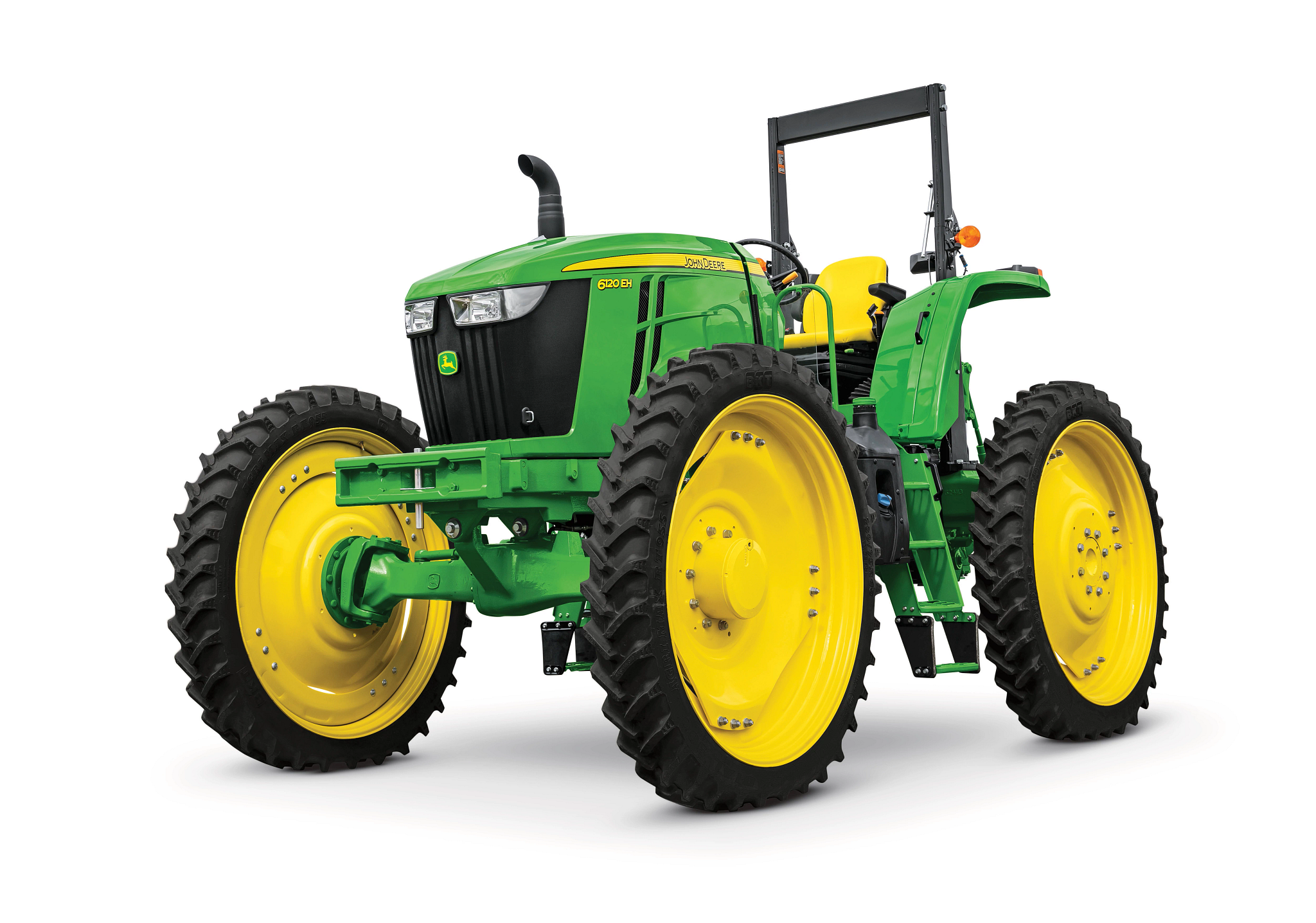

Comfort and Control for Whatever the Day Demands
Open station tractors offer great visibility, which can be crucial for tasks that require precise maneuvering, such as working in tight spaces or around obstacles.

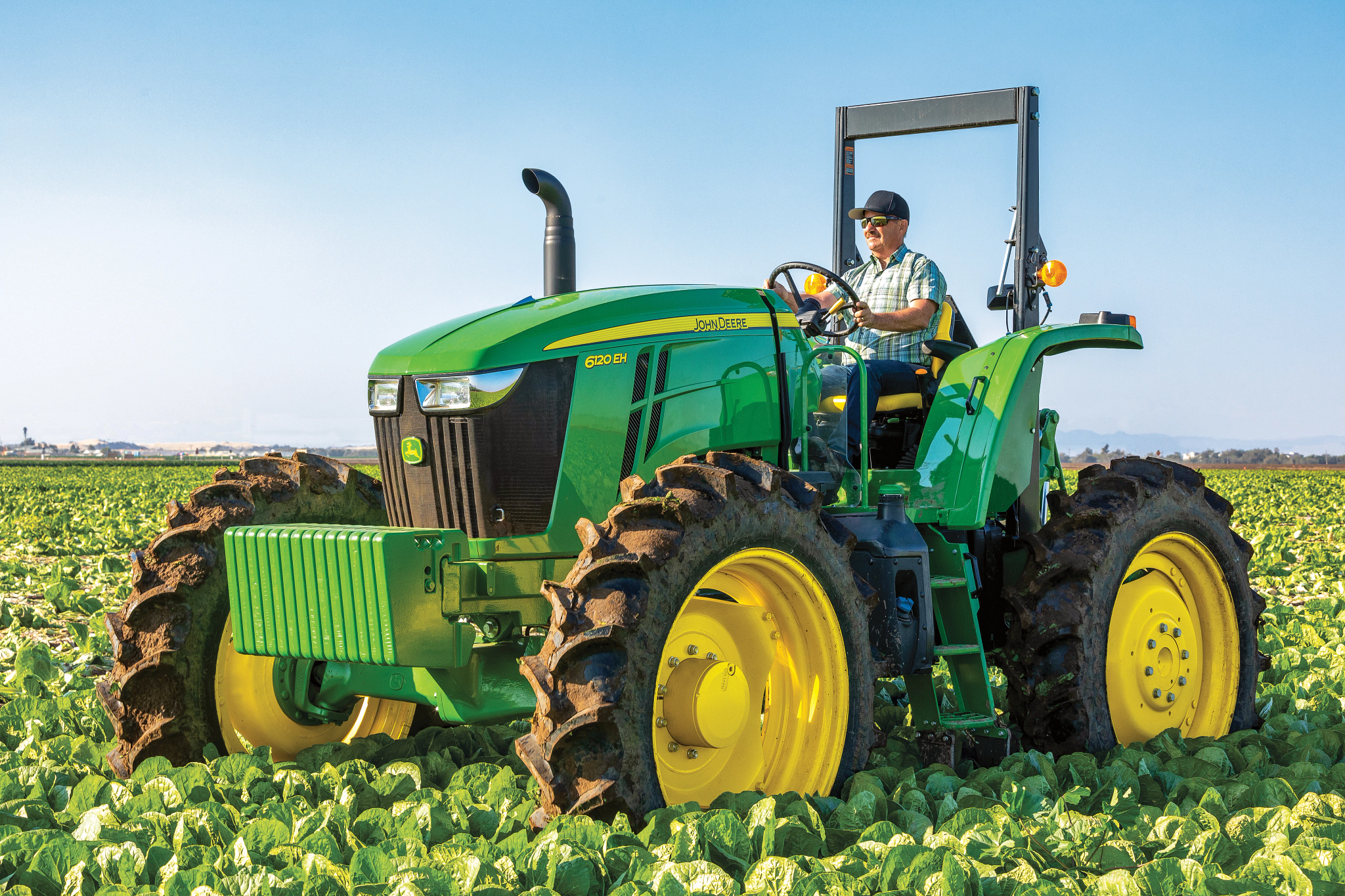

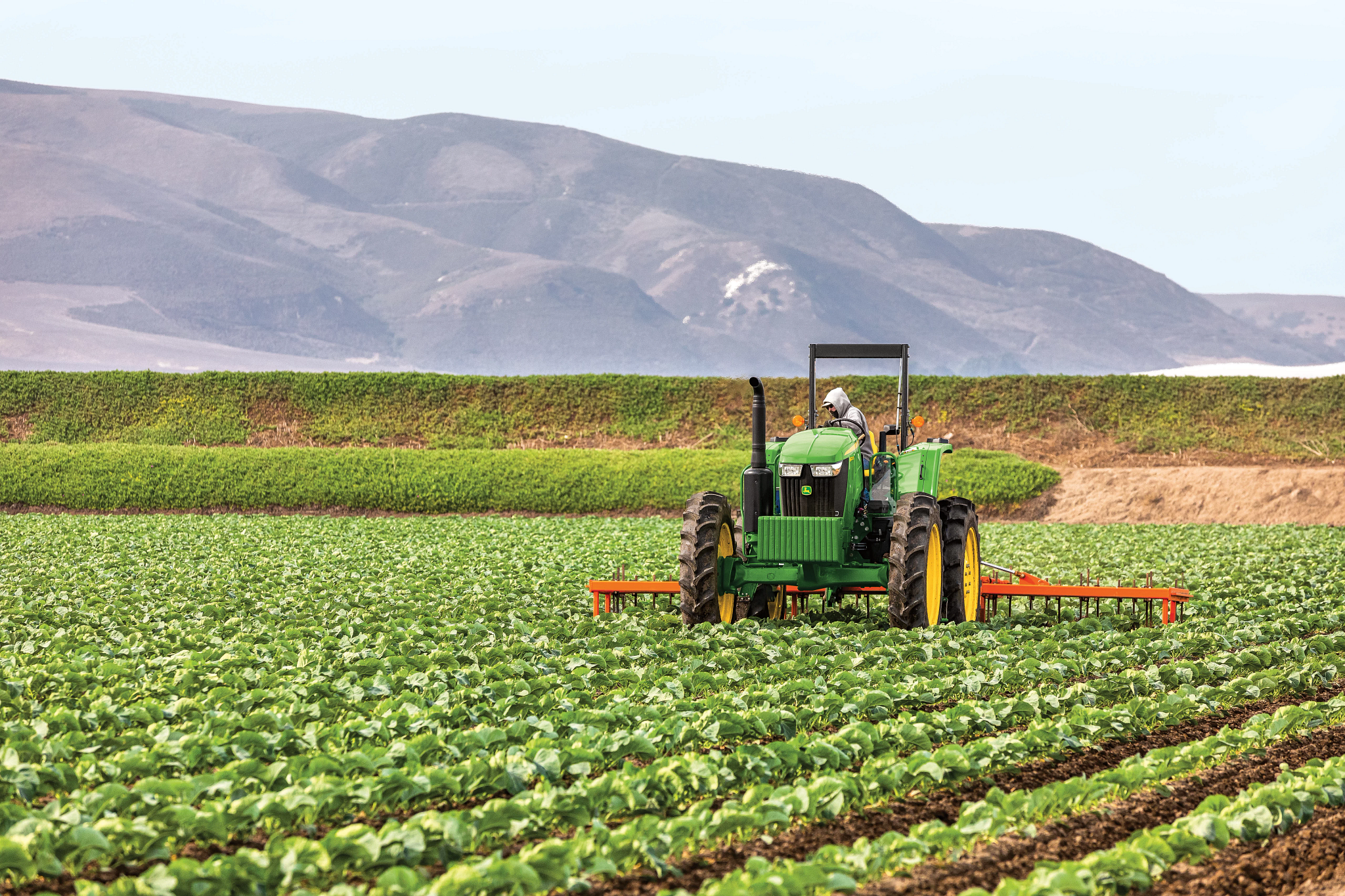

High Clearance to Protect Crops
Built specifically for high crop clearance, it allows operators to work over tall rows without damaging plants. With up to 33 in. axle clearance and 25–30 in. drawbar clearance, it supports cultivating, spraying, and harvesting while helping to protect crops and adapting to varying row spacings
Specifications
Rear Power Take-Off (PTO)
| PTO Category | 35 mm (1.375 in.) 540 rpm/1000 rpm reversible shaft |
| Rated PTO Power | 102 hp |
| Rated PTO Power | 76 kW |
| Rated PTO Power | 103 PS |
| PTO Clutch | Multi-disk |
| Number of Splines | 1000: 21 / 540: 6 |
Hydraulics
| Hydraulic System Type | Open-center Gear driven |
| Pump Rated Output | 36.5 cc pump: 75.7 L/min 20 gpm |
| Maximum Operating Pressure | 2973 psi |
| Maximum Operating Pressure | 205 bar |
| Number of Rear Selective Control Valves (SCVs) | Standard: Two ISO couplers Optional: Three ISO couplers |
| Available Flow at a Single Rear SCV | 75.7 L/min 20 gpm |
| SCV Control | Mechanical |
Engine
| Engine Make | John Deere |
| Engine Model | PowerTech™ PWL |
| Engine Family | HJDXL04.5315 |
| Emissions Certifications | Final Tier 4 |
| Displacement | 275 cu in. |
| Displacement | 4.5 L |
| Aspiration | Turbocharged, wastegate turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation |
| Number of Cylinders | 4 |
| Cylinder Liners | Wet-sleeve |
| Aftertreatment Type | Diesel Particle Filter (DPF) with Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) using DEF |
| Rated Engine Speed | 2200 rpm |
| Rated Engine Power | 120 hp |
| Rated Engine Power | 89 kW |
| Rated Engine Power | 121 PS |
| Maximum Engine Speed | 2300 rpm |
| Maximum Engine Power | 122 hp |
| Maximum Engine Power | 91 kW |
| Maximum Engine Power | 124 PS |
| Maximum Engine Torque | 494 Nm 364 lb-ft |
| Constant Power Range | 1800-2200 |
| Power Bulge | 3 % |
| Bore and Stroke | 4.2 x 5 in. |
| Bore and Stroke | 106.5 x 127 mm |
| Compression Ratio | 16.8:1 |
| Lubrication | Pressure lubrication |
| Cooling System Type | Liquid |
| Fuel Type | Ultra-low sulfur diesel |
| Air Cleaner Type | PowertCore Air Filter with pre cleaning |
| Torque Rise | 25 % |
Dimensions & Weights
| Wheelbase | 2450 mm |
| Base Machine Weight | 10240 lb. |
| Base Machine Weight | 4645 kg |
| Overall Height | 121.9 in. |
| Overall Height | 3095 mm |
| Transport Height | 121.9 in. |
| Transport Height | 3095 mm |
| Overall Width | 96.5 in. |
| Overall Width | 2,451 mm |
| Overall Length | 170.9 in. |
| Overall Length | 4341 mm |
| Front Axle Ground Clearance | 30 in. |
| Front Axle Ground Clearance | 762 mm |
| Drawbar Ground Clearance | 20.3 in. |
| Drawbar Ground Clearance | 516 mm |
| Maximum Ballast Level | 14250 lb. |
| Maximum Ballast Level | 6464 kg |
| Maximum Permissible Weight | 17636 lb. |
| Maximum Permissible Weight | 8000 kg |
Rear Hitch
| Rear Hitch Category (SAE Designation) | Category 2 |
| Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point | Standard: 2,500 kg 5,500 lb Optional: 3,318 kg 7,300 lb |
| Sensing Type | Mechanical |
| Draft Control Sensing | Yes |
Operator Station
| ROPS Type | Rollover protective structure, OOS |
| Gearshift Location | Console |
| Seat Suspension | Standard: Mechanical suspension Optional: Air suspension |
| Degree of Seat Swivel, Left Hand | 15 degree (angle) |
| Degree of Seat Swivel, Right Hand | 15 degree (angle) |
| Instructional Seat | Optional |
| Primary Display | Digital dash display with liquid crystal displays (LCDs) |
| Radio | Field Kit |
| Cab Glass Area | 53.9 sq ft |
| Cab Glass Area | 5 m² |
Transmission
| Transmission Type | Standard: John Deere 12F/12R PowrReverser transmission: 30 km/h 19 mph *Optional: John Deere 12F/12R PowrReverser transmission with creeper: 30 km/h *John Deere 24F/12R PowrReverser Transmission: 40 km/h 25 mph |
| Maximum Speed Forward | 40 km/h 25 mph |
| Minimum Speed Forward | 1.5 km/h 0.9 mph |
| Creeper | Optional |
| Reverser | Left hand |
| Clutch | Wet |
| Cruise Control | No |
Capacities
| Fuel Tank Capacity | 44.4 gal. |
| Fuel Tank Capacity | 168 L |
| Diesel Exhaust Fluid (DEF) Tank Capacity | 2.9 gal. |
| Diesel Exhaust Fluid (DEF) Tank Capacity | 10.9 L |
| Cooling System Capacity | 5 gal. |
| Cooling System Capacity | 19.1 L |
| Transmission - Hydraulic System | 15.3 gal. |
| Transmission - Hydraulic System | 58 L |
| Crankcase Oil Volume | 4 gal. |
| Crankcase Oil Volume | 15 L |
Electrical System
| Battery Voltage | 12 V |
| Electrical System Voltage | 12 V |
| Battery Cold Cranking Amps | 925 CCA |
| Alternator Capacity | 90 A |
| Working Lights | Yes |
Drawbar
| Drawbar Category | Category 2 |
| Maximum Vertical Load | Standard: Category 2 1000-1250 kg 2205-2756 lb Optional: Category 2 heavy duty: 1200-1900 kg 2645-4189 lb |
Technology Integration
| Guidance | SF-RTK |
| Receiver | Universal StarFire™ 7500 |
| Connectivity | JDLink™ Modem |
| Remote Diagnostics | Yes |
Additional Information
| Country of Manufacture | Mexico |
| Date Collected | 05/19/2026 |
Machine Configuration
| Wheel or Track Configuration | Wheel |
| Drive Type | 2WD & MFWD |
Tires
| Front Tires Size | 380/85R28 |
| Rear Tires Size | 460/85R42 |
Rear Axle
| Rear Axle Type | Flange |
| Rear Differential Lock | Full-locking mechanical |
| Final Drive | Inboard Planetary |
Steering & Brakes
| Steering Type | Hydrostatic power steering |
| Primary Brakes | Oil-cooled, mechanical actuated wet disc |
| Parking Brake | Mechanical brake pedal lock (detent) |
Front Axle
| Front Axle Type | Standard: MFWD Optional: Two-wheel drive (2WD) |
| Front Axle Differential Lock | MFWD: limited slip |
