Features
Open Operator Station (OOS)

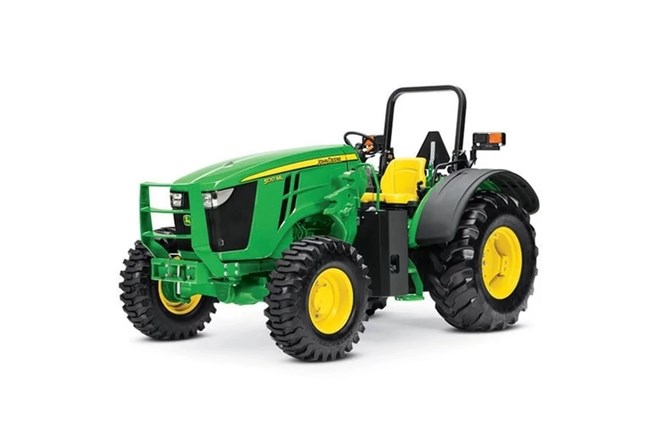

The low-profile OOS is designed for low-clearance areas, featuring a low-profile seat and Rollover Protection Structure (ROPS) for enhanced safety. Operator controls are within easy reach, located on the right-hand console pod for efficiency and convenience.
Built-In Precision Ag Solutions
Integrated JDLink™ connectivity provides near real-time machine tracking, maintenance alerts, and utilization insights. This connected capability helps operators manage uptime, service planning, and fleet coordination and support across their operation.
Activation required. JDLink hardware comes standard with the machine. You can turn on JDLink Connected service in your John Deere Operations Center™ account for free. JDLink requires a cellular connection to transfer information from machine to a JDLink website. Consult your John Deere dealer for coverage availability.
PowrQuad™ PLUS and Powr8™ Transmissions
Operators can easily find the right working speed using push-button gear shifting, while PowrQuad™ PLUS and Powr8™ transmissions boost productivity with clutchless hydraulic shifting between forward and reverse. The ergonomically placed control lever and fingertip directional switch streamline gear changes and direction shifts, reducing clutch wear and enhancing efficiency in tight spaces.
Specifications
Front PTO
| Front Number of Splines | 21 |
Rear Axle
| Rear Axle Type | Flange (Standard); Rack-and-pinion (Bar) (Optional) |
| Rear Differential Lock | Electrohydraulic |
| Differential Controls | Electrohydraulic |
| Final Drive | Inboard planetary |
Hydraulics
| Hydraulic System Type | Open center |
| Pump Rated Output | PowrReverser™: 94 L/min (24.7 gpm); PowrQuad™ PLUS/Powr8™: 97 L/min (25.6 gpm) |
| Available Flow at a Single Rear SCV | PowrReverser™: 70 L/min (18.4 gpm); PowrQuad™ PLUS/Powr8™: 73 L/min (19.3 gpm) |
| SCV Control | Mechanical |
Engine
| Engine Make | John Deere PowerTech™ 4045 EWL |
| Emissions Certifications | Final Tier 4 |
| Aspiration | Turbocharged/air-to-air aftercooled |
| Cylinder Liners | Wet sleeved |
| Aftertreatment Type | DOC/SCR |
| Rated Engine Power | 130 hp |
| Rated Engine Power | 96 kW |
| Rated Engine Power | 131 PS |
| Maximum Engine Power | 136 hp |
| Maximum Engine Power | 100 kW |
| Maximum Engine Power | 136 PS |
| Maximum Engine Torque | 500 Nm / 369 lb-ft |
Electrical System
| Alternator Capacity | OOS: 90 amp; Cab: 120 amp; ISOBUS/GreenStar™ Ready: 200 amp |
| Working Lights | Halogen (Standard); LED (Optional) |
| Driving Lights | Halogen (Standard); LED (Optional) |
Rear Hitch
| Rear Hitch Category (SAE Designation) | Category 2; convertible to 1 |
| Sensing Type | Lower link |
| Draft Control Sensing | Mechanical or Electrohydraulic |
Rear Power Take-Off (PTO)
| PTO Category | 540/540E (6 spline); Optional: 540/540E (6 spline) and 1000 rpm (21 spline) reversible shaft |
| Engagement Method | Electrohydraulic |
Capacities
| Fuel Tank Capacity | Open: 37.7; Cab: 43.7 gal. |
| Fuel Tank Capacity | Open: 142.7; Cab: 165.4 L |
Operator Station
| ROPS Type | Foldable, two-post |
| Gearshift Location | Floor |
| Seat Suspension | Mechanical (Standard); Air Ride or Premium Air Ride (Optional) |
| Instructional Seat | Optional |
| Primary Display | PowrReverser™: Automotive-style light-emitting diode (LED) instrument cluster; PowrQuad™ PLUS/Powr8™: Digital Dash Display with three liquid crystal displays (LCDs) |
| Radio | Optional |
Front Axle
| Front Axle Type | Mechanical Front Wheel Drive (MFWD) |
Technology Integration
| Guidance | Optional: AutoTrac™ with AutoTrac Basic |
| ISOBUS Ready | Optional with PowrQuad™ PLUS/Powr8™ models |
Drawbar
| Drawbar Category | Category 2 |
| Maximum Vertical Load | Road/field use (250-mm extended): 1450 kg / 3197 lb; Field use (350-mm extended): 1200 kg / 2646 lb; Field use (400-mm extended): 1200 kg / 2646 lb |
Transmission
| Transmission Type | PowrReverser™ 16F/16R; Optional: PowrReverser™ Hi-Lo 32F/16R, PowrQuad™ PLUS 16F/16R, Powr8™ 32F/16R, Powr8™ 32F/16R with creeper |
| Creeper | Powr8™ 32F/16R with creeper |
| Reverser | Left hand, electrohydraulic |
| Clutch | Wet |
Additional Information
| Country of Manufacture | Mexico |
| Date Collected | 2023_01_06T00:00:00.0000000 |
Tires
| Rear Tires Size | 18.4R30 (460/85R30) R1W Radial |
| Wheel Tread Range | Front: 1299–1997 mm (51.1-78.6 in.); Rear: 1350–2286 mm (53.1-90 in.) |
Front Hitch
| Front Hitch Category | Category 2 |
Steering & Brakes
| Primary Brakes | Hydraulic wet disc |
