Features

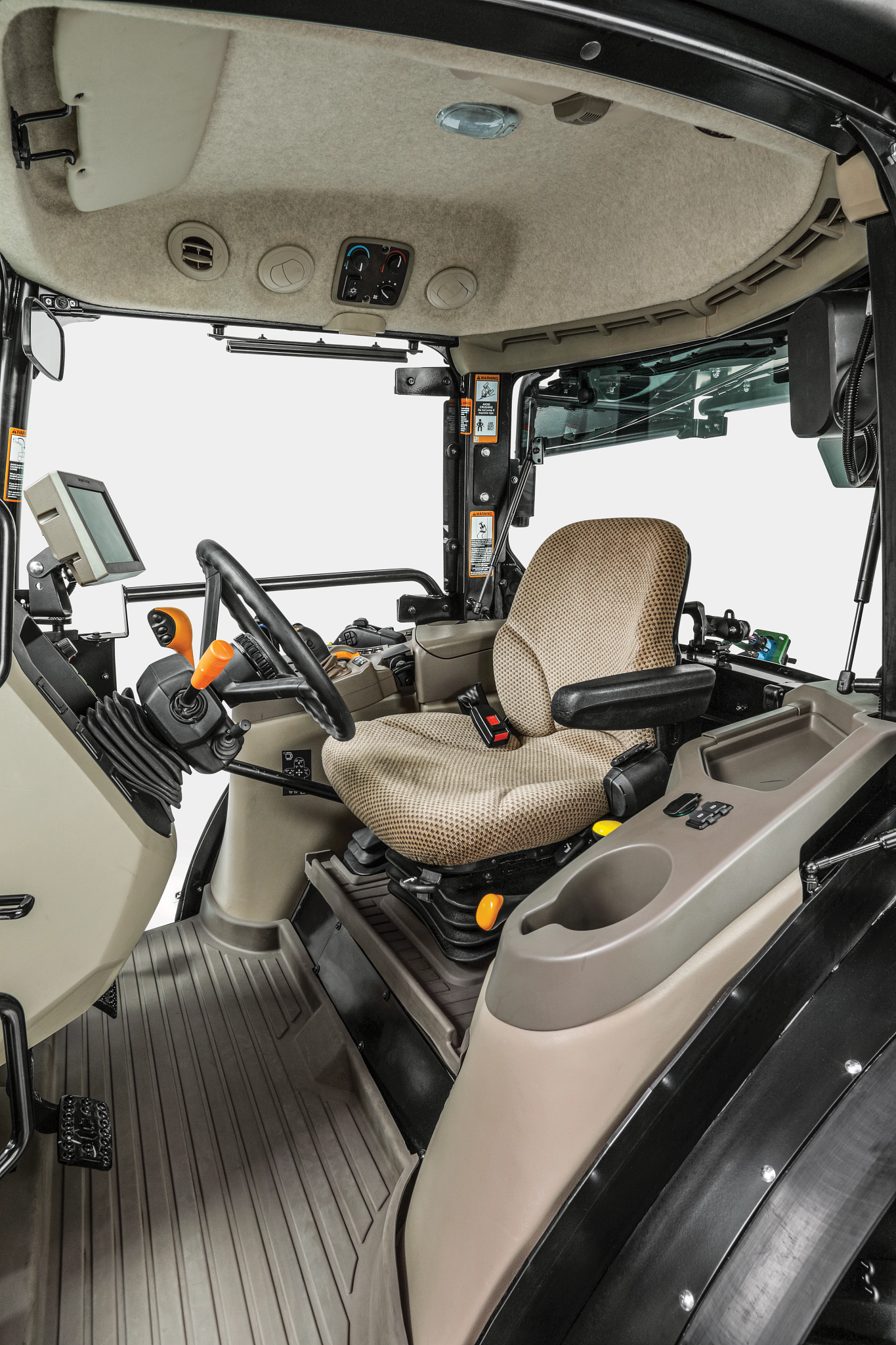

Premium Cab
Enjoy a spacious cab that provides all day comfort with ergonomic controls, excellent visibility, and a sealed environment. Available Category IV filtration system protects operators from dust, aerosols, and vapors while maintaining fresh airflow.
Built-In Precision Ag Solutions

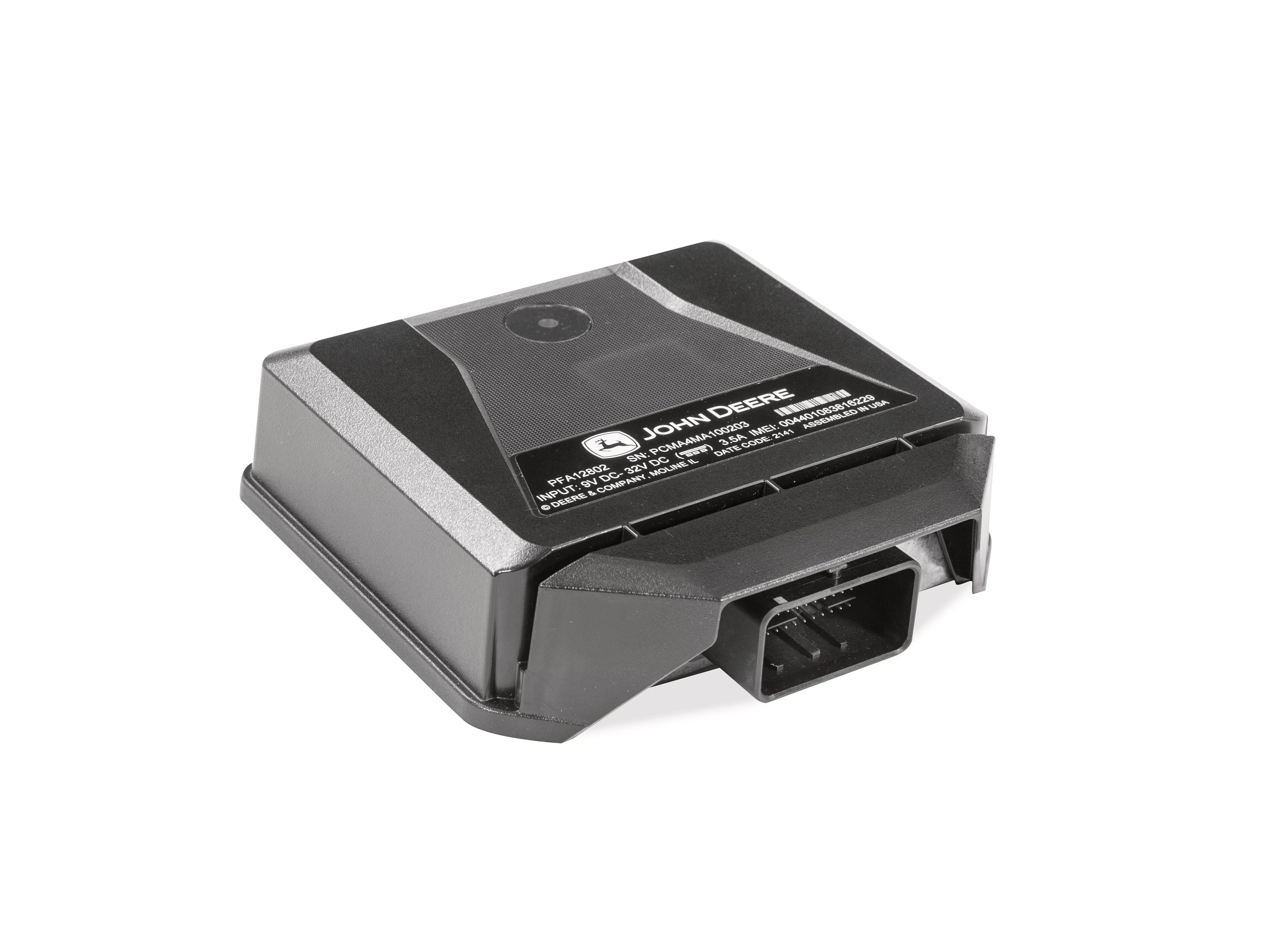

Integrated JDLink™ connectivity provides near real-time machine tracking, maintenance alerts, and utilization insights. This connected capability helps operators manage uptime, service planning, and fleet coordination and support across their operation.
Activation required. JDLink hardware comes standard with the machine. You can turn on JDLink Connected service in your John Deere Operations Center™ account for free. JDLink requires a cellular connection to transfer information from machine to a JDLink website. Consult your John Deere dealer for coverage availability.

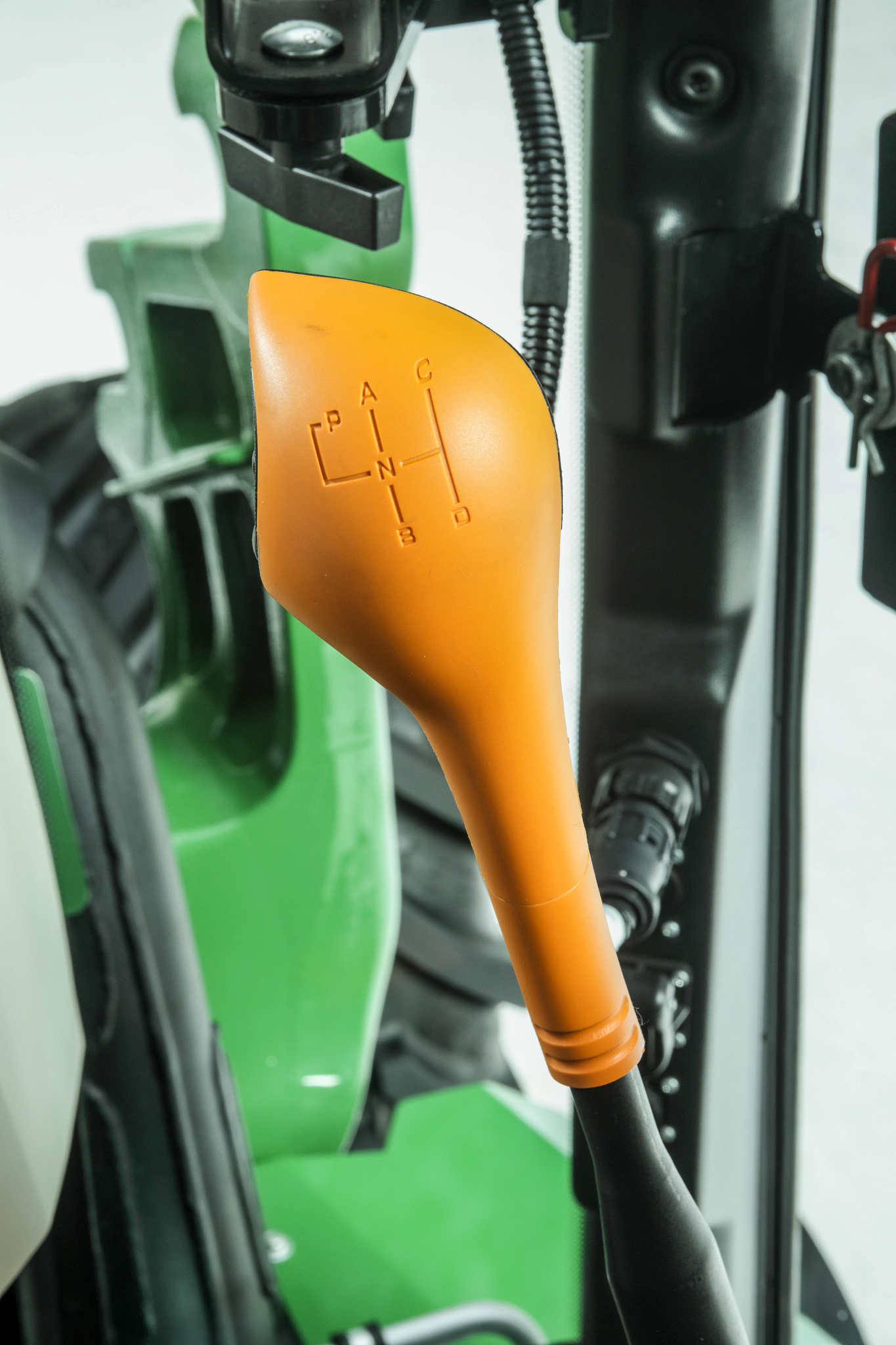

PowrQuad™ PLUS and Powr8™ Transmissions
Operators can easily find the right working speed using push-button gear shifting, while PowrQuad™ PLUS and Powr8™ transmissions boost productivity with clutchless hydraulic shifting between forward and reverse. The ergonomically placed control lever and fingertip directional switch streamline gear changes and direction shifts, reducing clutch wear and enhancing efficiency in tight spaces.
Specifications
Rear Axle
| Rear Axle Type | Flange |
| Rear Differential Lock | Electrohydraulic |
| Differential Controls | Electrohydraulic |
| Final Drive | Inboard planetary |
Hydraulics
| Hydraulic System Type | Pressure-and-flow compensated (PFC) system |
| Pump Rated Output | 117 L/min / 31 gpm |
| Available Flow at a Single Rear SCV | 100 L/min / 26.4 gpm |
| SCV Control | Mechanical |
Engine
| Engine Make | John Deere PowerTech™ 4045 PWL |
| Emissions Certifications | Final Tier 4 |
| Aspiration | Turbocharged |
| Cylinder Liners | Wet sleeved |
| Aftertreatment Type | ERG/DOC/SCR |
| Rated Engine Power | 120 hp |
| Rated Engine Power | 92 kW |
| Rated Engine Power | 125 PS |
| Maximum Engine Power | 125 hp |
| Maximum Engine Power | 92 kW |
| Maximum Engine Power | 125 PS |
| Maximum Engine Torque | 541 Nm / 399 lb-ft |
Electrical System
| Alternator Capacity | 90 amp |
| Working Lights | Standard: Halogen / Optional: LED |
| Driving Lights | Standard: Halogen / Optional: LED |
Rear Hitch
| Rear Hitch Category (SAE Designation) | Category 2; convertible to 1 |
| Sensing Type | Top link |
| Draft Control Sensing | Electrohydraulic |
Rear Power Take-Off (PTO)
| PTO Category | 540/540E/1000 |
| Engagement Method | Electrohydraulic |
Capacities
| Fuel Tank Capacity | 38 gal. |
| Fuel Tank Capacity | 144 L |
Operator Station
| ROPS Type | Foldable, two-post |
| Gearshift Location | Floor |
| Seat Suspension | Low Profile |
| Instructional Seat | Not Available |
| Primary Display | Automotive style light-emitting LED instrument cluster |
| Radio | Optional |
Front Axle
| Front Axle Type | Mechanical Front Wheel Drive (MFWD) |
Technology Integration
| Guidance | Optional: AutoTrac™ with AutoTrac Basic |
| Connectivity | JDLink™ Modem |
| Remote Diagnostics | Yes |
| ISOBUS Ready | Optional for cab models |
Drawbar
| Drawbar Category | Category 2 |
| Maximum Vertical Load | Road/field use (250-mm extended): 1450 kg / 3197 lb; Field use (350-mm extended): 1200 kg / 2646 lb; Field use (400-mm extended): 1200 kg / 2646 lb |
Transmission
| Transmission Type | PowrQuad™ PLUS 16F/16R; Optional: Powr8™ 32F/16R |
| Reverser | Yes |
| Clutch | Wet |
Additional Information
| Country of Manufacture | Saltillo, Mexico |
| Date Collected | 2023_01_06T00:00:00.0000000 |
Tires
| Rear Tires Size | 19.5L-24 in. R4 Bias |
| Wheel Tread Range | Front: 1299–1997 mm / 51.1–78.6 in |
Steering & Brakes
| Primary Brakes | Hydraulic wet disc |
