Features
Ready for Technology

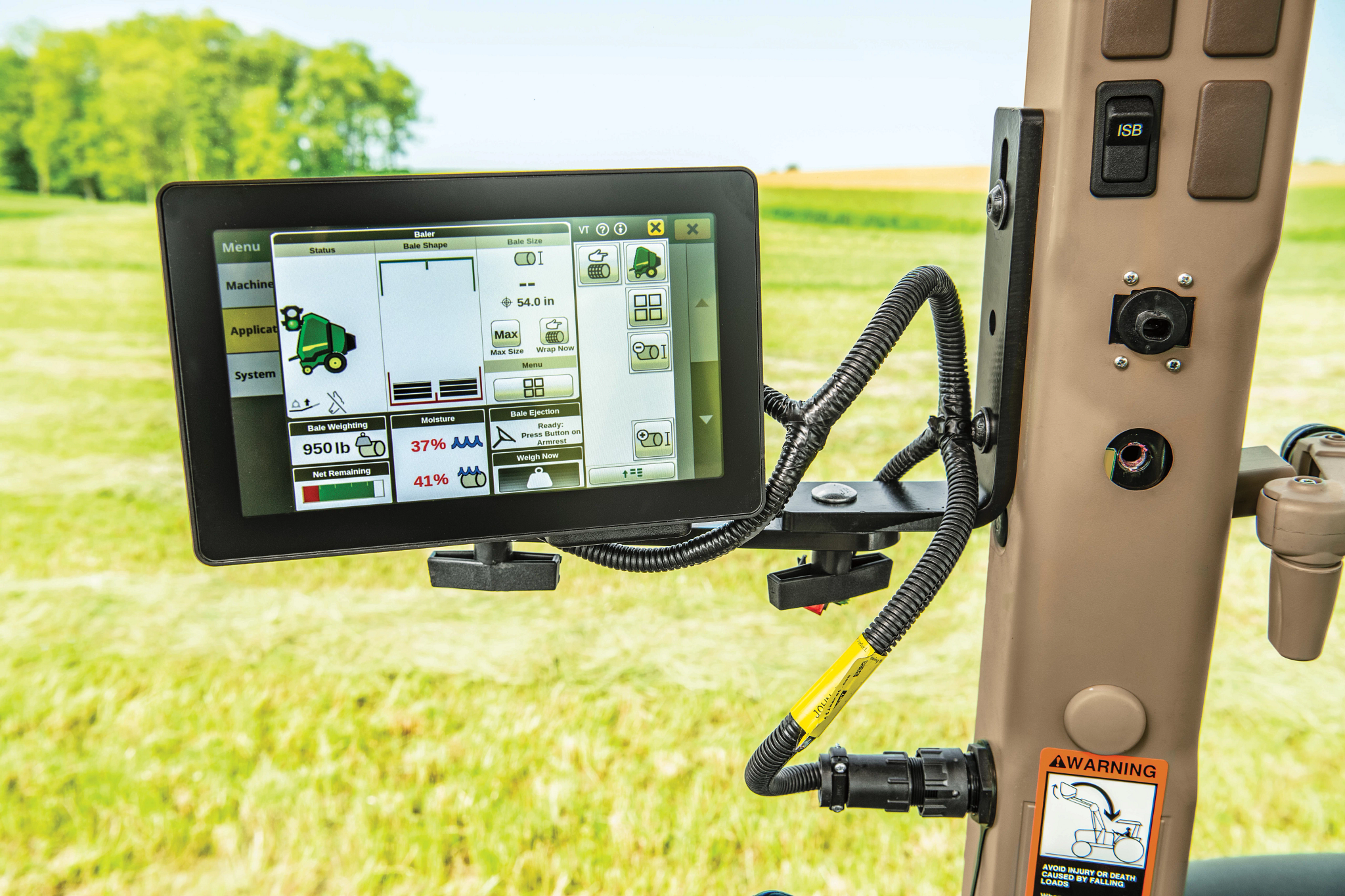

Whether it’s added on or available from the factory, an abundance of technology options are available. From AutoTrac™ to JDLink™ to GreenStar™/ISOBUS ready, your John Deere Dealer can help you decide what technology options are available to bring more efficiency to your operation.
Premium Cab Option
Enjoy a spacious premium cab that provides all day comfort with ergonomic controls and excellent visibility. The enclosed cab enhances operator comfort during a demanding day, while thoughtful design features support productivity across a wide range of high crop applications.
Transmission Options
Transmission features include the PowrReverser™ with 12 forward and 12 reverse speeds for responsive control in tight applications. Hydraulic wet clutches, synchronized shifting, and an electrohydraulic reverser are designed to support smooth direction changes and reliable performance.
Specifications
Rear Axle
| Rear Axle Type | Standard: flange-type rear axle; Optional: Rack-and-pinion rear axle - 92-mm (3.62 in.) shaft (2550-mm/104.0 in.) |
| Rear Differential Lock | Electrohydraulically with oil‑cooled clutch |
Engine
| Engine Make | John Deere PowerTech™ PVS |
| Emissions Certifications | Final Tier 4 |
| Aspiration | Turbo charged. Variable geometry turbo with fixed geometry and cooled exhaust gas recirculation (EGR) |
| Aftertreatment Type | FT4: Cooled exhaust gas recirculation (EGR), Diesel Particle Filter (DPF) with Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) using DEF |
| Rated Engine Power | 105 hp |
| Rated Engine Power | 77 kW |
| Rated Engine Power | 105 PS |
| Maximum Engine Power | 108 hp |
| Maximum Engine Power | 81 kW |
| Maximum Engine Power | 110 PS |
Hydraulics
| Hydraulic System Type | Pressure-and-flow compensated (PFC) system with load sensing function |
| Pump Rated Output | Standard: 114 L/min (30.1 gpm) |
| SCV Control | Mechanical |
Front Axle
| Front Axle Type | Standard: MFWD; Optional: Two-wheel drive (2WD) |
| Front Axle Differential Lock | Self‑locking differential |
Additional Information
| Country of Manufacture | Germany |
| Date Collected | 08/26/2025 |
Rear Hitch
| Rear Hitch Category (SAE Designation) | 3/3N |
| Sensing Type | Electronic lower link |
Capacities
| Fuel Tank Capacity | 75.3 gal. |
| Fuel Tank Capacity | 285 L |
Machine Configuration
| Wheel or Track Configuration | Wheel |
| Drive Type | 4WD |
Drawbar
| Drawbar Category | Category 2 |
| Maximum Vertical Load | Road/field use (250‑mm extended): 2000 kg / 4409.2 lb; Field use (350‑mm extended): 1400 kg / 3086.5 lb; Field use (400‑mm extended): 1200 kg / 2645.5 lb |
Tires
| Front Tires Size | 380/85R28 |
| Rear Tires Size | 460/85R42 |
Operator Station
| ROPS Type | Rollover protective structure, OOS |
| Gearshift Location | Console |
| Seat Suspension | Standard: Economy seat with mechanical suspension, without seat swivel; Optional: Standard seat with mechanical suspension and seat swivel |
| Primary Display | Digital dash display with liquid crystal displays (LCDs) |
Steering & Brakes
| Steering Type | Dynamic load sensing, hydrostatic, flow metering |
Electrical System
| Alternator Capacity | Standard: 14 V/120 amp; Optional: 14 V/250 amp |
Technology Integration
| Remote Diagnostics | JDLink™ |
Transmission
| Transmission Type | PowrQuad™ transmission |
| Creeper | Optional |
| Reverser | Mechanical left-hand reverser |
