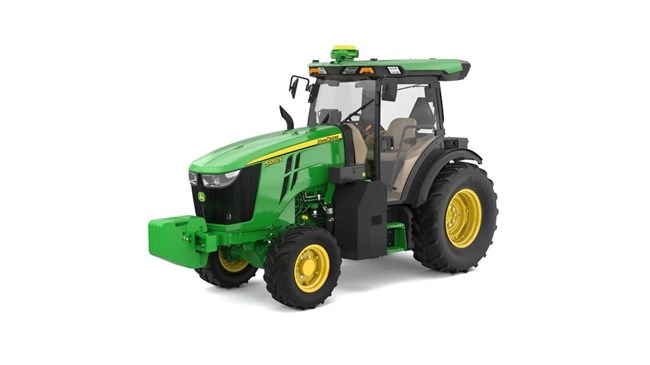

John Deere 5105EN
Double tap to zoom
5105EN
High-Value Crop Tractors
Overview:
The 5EN Tractor is the perfect fit. Featuring a narrow frame, the 5105EN can glide through the tight rows of orchards and vineyards with ease. Integrated John Deere Precision Technology can provide the field management tools you need to effectively monitor and manage your operation.
- Height: 92-in. and Width: 55-in.
- 105 hp Engine / 84 hp Power Take-Off (PTO) PowerTech™ Final Tier 4 Diesel Engine
- Redesigned Cab With Improved Comfort and Convertible Cat 2/Cat 4 Filter Ventilation
- JDLink™ Standard, AutoTrac™ Ready
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

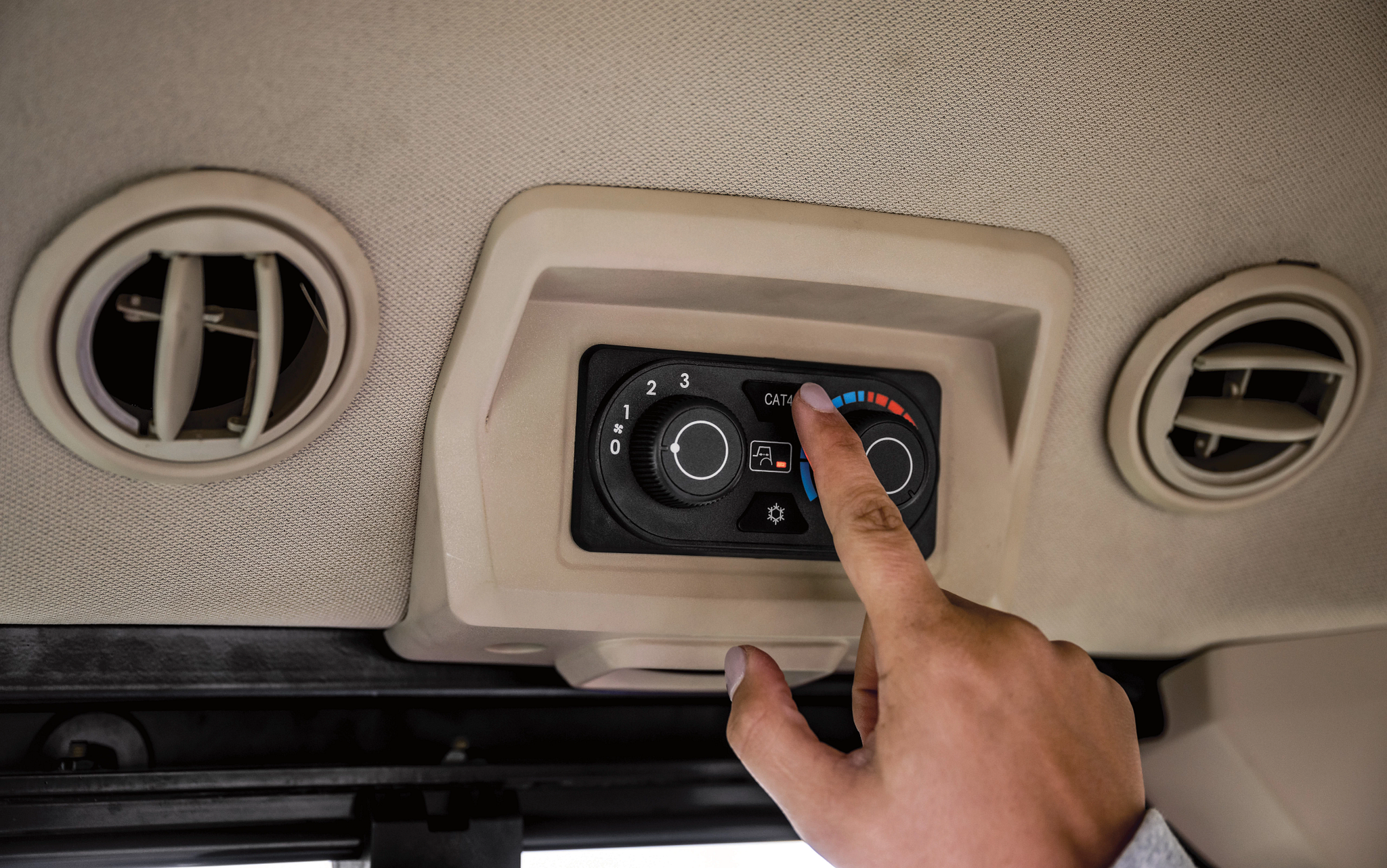

A Cab to Fit Your Needs
Enjoy a spacious cab that provides all day comfort with ergonomic controls, excellent visibility, and a sealed environment. An optional convertible Category II or IV filtration system protects operators from dust, aerosols, and vapors while maintaining fresh airflow.
Effectively Manage Equipment and Crops With Technology Upgrades
Integrated JDLink™ connectivity provides near real-time machine tracking, maintenance alerts, and utilization insights. This connected capability helps operators manage uptime, service planning, and fleet coordination and support across their operation.
Moving You Forward - PowrReverser™ Transmissions
The PowrReverser™ transmission enables efficient task handling, like mowing, spraying, and crate moving, with quick directional changes using a left-hand reverser. Users can boost productivity by upgrading from a 12F/12R to a 24F/12R transmission, save fuel with 540E PTO for light tasks, and achieve slow speeds for planting by adding a creeper gear.
Specifications
Hydraulics
| Hydraulic System Type | Open center |
| Pump Rated Output | 94 L/min / 24.9 gpm |
| Available Flow at a Single Rear SCV | 68.8 L/min / 18.2 gpm |
| SCV Control | Mechanical |
Engine
| Engine Make | John Deere PowerTech™ 4045 PWS |
| Emissions Certifications | Final Tier 4 / Stage 5 |
| Aspiration | Turbocharged |
| Cylinder Liners | Wet sleeved |
| Aftertreatment Type | DOC/DPF/SCR |
| Rated Engine Power | 105 hp |
| Rated Engine Power | 77 kW |
| Rated Engine Power | 105 PS |
| Maximum Engine Power | 106 hp |
| Maximum Engine Power | 79 kW |
| Maximum Engine Power | 107 PS |
| Maximum Engine Torque | 350 Nm / 258 lb-ft |
Electrical System
| Alternator Capacity | 110 amp |
| Working Lights | LED |
| Driving Lights | LED |
Rear Hitch
| Rear Hitch Category (SAE Designation) | Category 2N; convertible to 1 |
| Sensing Type | Top link |
| Draft Control Sensing | Electrohydraulic |
Rear Axle
| Rear Axle Type | Flange |
| Differential Controls | Mechanical (pedal) |
| Final Drive | Planetary |
Rear Power Take-Off (PTO)
| PTO Category | 540/540E |
| Engagement Method | Electrohydraulic |
Capacities
| Fuel Tank Capacity | 28.53 gal. |
| Fuel Tank Capacity | 108 L |
Operator Station
| Gearshift Location | Floor, on the side |
| Seat Suspension | Air ride; Optional: Mechanical |
| Instructional Seat | Not Available |
| Primary Display | Simple automotive-style instrument cluster |
| Radio | Optional |
Front Axle
| Front Axle Type | Mechanical Front Wheel Drive (MFWD) |
Technology Integration
| Guidance | Optional: AutoTrac™ Universal Ready |
| Secondary Display | G5 Universal |
| Receiver | SF7500 |
| Connectivity | JDLink™ Modem |
| ISOBUS Ready | No |
Transmission
| Transmission Type | Standard: PowrReverser™ 12F/12R; Optional: PowrReverser™ 24F/12R |
| Creeper | Optional |
| Reverser | Yes |
| Clutch | Wet |
Additional Information
| Country of Manufacture | Saltillo, Mexico |
Drawbar
| Maximum Vertical Load | Field use (fully extended): 650 kg / 1433 lb |
Tires
| Front Tires Size | 9.5-16 in. BIAS |
| Rear Tires Size | 14.9-24 in. 8PR R1 Bias |
Steering & Brakes
| Primary Brakes | Hydraulic wet disc |
