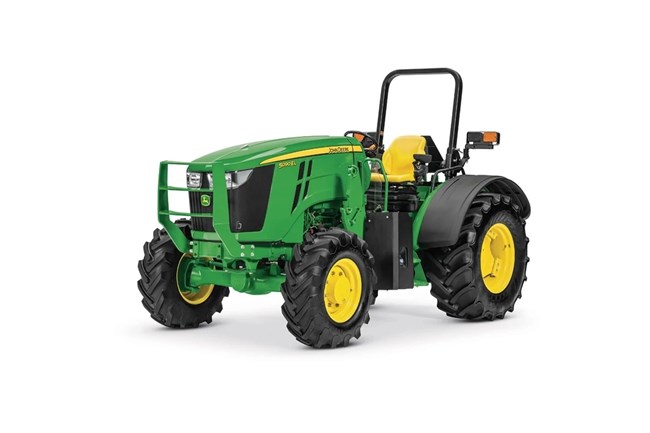

John Deere 5090EL
Double tap to zoom
5090EL
High-Value Crop Tractors
Overview:
Specially designed with poultry producers in mind. The 5EL is suited to fit in confined spaces where clearance is a constraint. Integrated John Deere Precision Technology can provide the management tools you need to effectively monitor and manage your operation.
- Low-Clearance Design Allows for Overall Height of 69 Inches
- 90 hp John Deere PowerTech™ Engine
- Economy Power Take-Off (PTO) Allows Engine rpm to Run Lower, Saving Fuel and Reducing Overall Cost of Operation
- 2-Year or 2,000-Hour Full Comprehensive Warranty and 5-Year or 2,000-Hour Powertrain Warranty
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Transmission
Transmission features include the PowrReverser™ with 12 forward and 12 reverse speeds for responsive control in tight applications. Hydraulic wet clutches, synchronized shifting, and an electrohydraulic reverser are designed to support smooth direction changes and reliable performance.
Connected to What Counts
Integrated JDLink™ connectivity provides near real-time machine tracking, maintenance alerts, and utilization insights. This connected capability helps operators manage uptime, service planning, and fleet coordination and support across their operation.
Activation required. JDLink hardware comes standard with the machine. You can turn on JDLink Connected service in your John Deere Operations Center™ account for free. JDLink requires a cellular connection to transfer information from machine to a JDLink website. Consult your John Deere dealer for coverage availability.
Designed for Poultry Producers
The 5EL Tractor is purpose built for poultry producers. The seating area is designed to deliver operator comfort, visibility, and control in confined spaces. Featuring an open station layout with a Rollover Protective Structure (ROPS) while maintaining a low overall height.
Specifications
Rear Axle
| Rear Differential Lock | Yes |
| Final Drive | Planetary |
Engine
| Engine Make | Yanmar® |
| Emissions Certifications | Final Tier 4 |
| Aspiration | Turbocharged and charge air cooled |
| Cylinder Liners | Cast-in-block |
| Rated Engine Power | 90 hp |
| Rated Engine Power | 67 kW |
| Rated Engine Power | 91 PS |
| Maximum Engine Power | 92 hp |
| Maximum Engine Power | 69 kW |
| Maximum Engine Power | 94 PS |
| Lubrication | Pressurized |
| Cooling System Type | Liquid |
| Fuel Type | Diesel; High-pressure common rail direct injection |
| Air Cleaner Type | Dual element with electronic restriction indicator |
Hydraulics
| Hydraulic System Type | Open center |
| Pump Rated Output | 65.8 L/min (17.4 gpm) |
| Auxiliary Hydraulic Features | Standard: Two remote control valves |
Front Axle
| Front Axle Differential Lock | Yes |
Capacities
| Fuel Tank Capacity | 15 gal. |
| Fuel Tank Capacity | 56.9 L |
Tires
| Front Tires Size | R4 Industrial 31.5x13-16.5 |
| Rear Tires Size | R4 Industrial 16.9-24 R4; Industrial 19.5L-24 |
Steering & Brakes
| Steering Type | Hydrostatic power steering |
| Primary Brakes | Multi-plate wet disc |
Rear Hitch
| Rear Hitch Category (SAE Designation) | Category 1/Category 2 |
| Draft Control Sensing | Position control |
Rear Power Take-Off (PTO)
| Economy PTO Speeds | 540 rpm |
| Engagement Method | Independent |
| PTO Clutch | Wet disc |
Operator Station
| ROPS Type | Foldable |
Electrical System
| Alternator Capacity | 75 amp |
Transmission
| Transmission Type | eHydro transmission |
| Creeper | SpeedMatch™ standard |
| Clutch | Wet |
| Cruise Control | Standard |
