Features
Moving You Forward - PowrReverser™ Transmissions
The PowrReverser™ transmission enables efficient task handling, like mowing, spraying, and crate moving, with quick directional changes using a left-hand reverser. Users can boost productivity by upgrading from a 12F/12R to a 24F/12R transmission, save fuel with 540E PTO for light tasks, and achieve slow speeds for planting by adding a creeper gear.
Effectively Manage Equipment and Crops With Technology Upgrades
Integrated JDLink™ connectivity provides near real-time machine tracking, maintenance alerts, and utilization insights. This connected capability helps operators manage uptime, service planning, and fleet coordination and support across their operation.

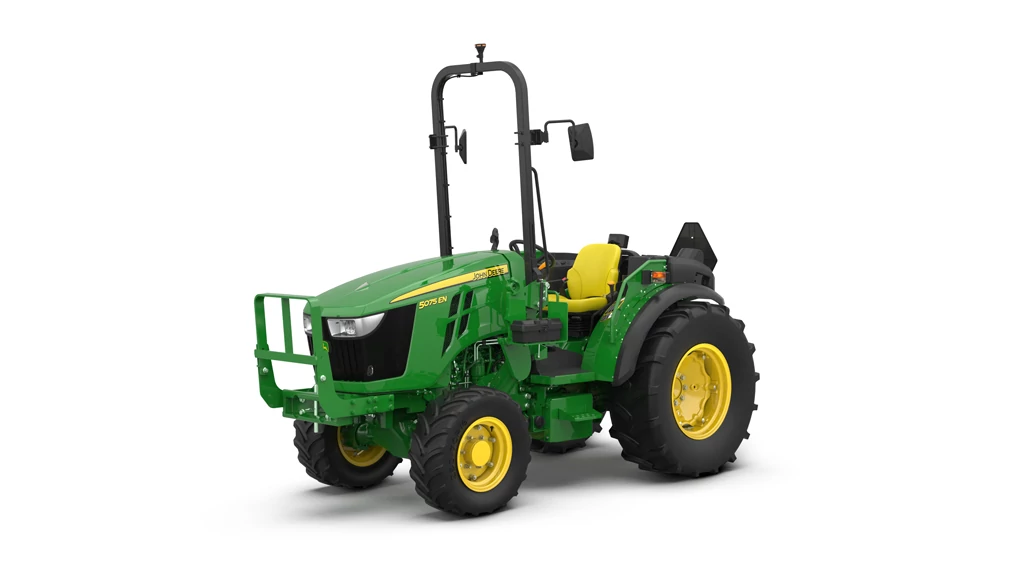

Open Operator Station to Fit Your Needs
Operate with agility using conveniently placed levers and a rollover protection structure (ROPS) that now requires less force to maneuver. When using mid- or front-mount implements, you can lock the ROPS in place for added stability.
Specifications
Engine
| Engine Make | John Deere PowerTech™ 3029 EWR |
| Emissions Certifications | Final Tier 4 |
| Aspiration | Turbocharged |
| Cylinder Liners | Wet sleeved |
| Aftertreatment Type | DOC/EGR |
| Rated Engine Power | 75 hp |
| Rated Engine Power | 55 kW |
| Rated Engine Power | 75 PS |
| Maximum Engine Power | 75 hp |
| Maximum Engine Power | 55 kW |
| Maximum Engine Power | 75 PS |
| Maximum Engine Torque | 250 Nm / 184 lb-ft |
Hydraulics
| Hydraulic System Type | Open Center |
| Pump Rated Output | 68.8 L/min (18.2 gpm) |
| Available Flow at a Single Rear SCV | 43.1 L/min (11.4 gpm) |
| SCV Control | Mechanical |
Additional Information
| Country of Manufacture | Sub assembly in Pune, India, Final assembly in Augusta, GA |
| Date Collected | 2023-Jan-06 |
Electrical System
| Alternator Capacity | 70 amp |
| Working Lights | Halogen |
| Driving Lights | Halogen |
Rear Hitch
| Rear Hitch Category (SAE Designation) | Category 2; convertible to 1 |
| Sensing Type | Top link |
| Draft Control Sensing | Mechanical |
Rear Axle
| Rear Axle Type | Flange |
| Differential Controls | Mechanical (pedal) |
| Final Drive | Planetary |
Rear Power Take-Off (PTO)
| PTO Category | SyncShuttle™: Independent 540; PowrReverser™: Independent 540/540E |
| Engagement Method | SyncShuttle™: Mechanical (lever); PowrReverser™: Electrohydraulic |
Capacities
| Fuel Tank Capacity | 19 gal. |
| Fuel Tank Capacity | 72.5 L |
Drawbar
| Maximum Vertical Load | Road/field use (short position): 1120 kg (2470 lb); Field use (fully extended): 760 kg (1675 lb) |
Operator Station
| ROPS Type | Foldable, 2-post |
| Gearshift Location | Floor, on the side |
| Seat Suspension | Mechanical |
| Instructional Seat | Optional |
| Primary Display | Simple automotive-style instrument cluster |
| Radio | Optional |
Tires
| Rear Tires Size | 14.9-28 R1 Bias |
Front Axle
| Front Axle Type | Two-Wheel Drive (2WD); Optional: Mechanical Front Wheel Drive (MFWD) |
Steering & Brakes
| Primary Brakes | Hydraulic wet disc |
Transmission
| Transmission Type | SyncShuttle™ 9F/3R; Optional: PowrReverser™ 12F/12R |
| Creeper | Kit available for SyncShuttle™ 9F/3R transmission |
| Reverser | SyncShuttle™: No; PowrReverser™: Yes |
| Clutch | SyncShuttle™: Dry; PowrReverser™: Wet |
Technology Integration
| ISOBUS Ready | No |
