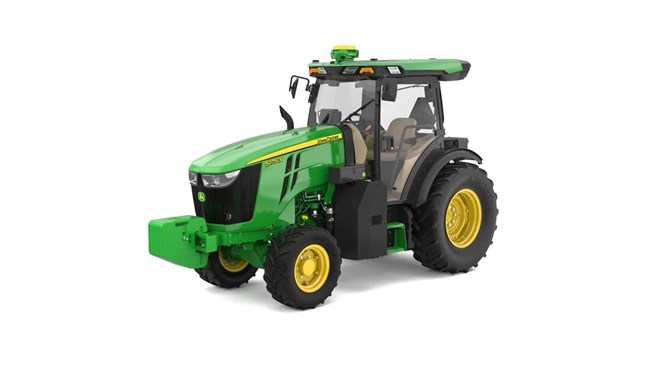

John Deere 5075EN Cab
Double tap to zoom
5075EN Cab
High-Value Crop Tractors
Overview:
The 5EN Tractor is the perfect fit. Featuring a narrow frame, the 5075EN can glide through tight rows of orchards and vineyards with ease. Integrated John Deere Precision Technology1 such as JDLink™ provide the field management tools you need to effectively monitor and manage your operation.
- Easy-to-Use 12F/12R PowrReverser™ Transmission
- 75 hp Engine / 58 hp Power Take-Off (PTO) PowerTech™ Final Tier 4 Diesel Engine
- Redesigned Cab With Improved Comfort, Convertible Cat 2/Cat 4 Filter Ventilation
- JDLink™ Standard, AutoTrac™ Ready
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Moving You Forward - PowrReverser™ Transmissions
The PowrReverser™ transmission enables efficient task handling, like mowing, spraying, and crate moving, with quick directional changes using a left-hand reverser. Users can boost productivity by upgrading from a 12F/12R to a 24F/12R transmission, save fuel with 540E PTO for light tasks, and achieve slow speeds for planting by adding a creeper gear.
Effectively Manage Equipment and Crops With Technology Upgrades
Integrated JDLink™ connectivity provides near real-time machine tracking, maintenance alerts, and utilization insights. This connected capability helps operators manage uptime, service planning, and fleet coordination and support across their operation.
A Cab to Fit Your Needs
Enjoy a spacious cab that provides all day comfort with ergonomic controls, excellent visibility, and a sealed environment. An optional convertible Category II or IV filtration system protects operators from dust, aerosols, and vapors while maintaining fresh airflow.
Specifications
Engine
| Engine Make | John Deere PowerTech™ 4045 PWS |
| Emissions Certifications | Final Tier 4 / Stage 5 |
| Aspiration | Turbocharged |
| Cylinder Liners | Wet-sleeve |
| Aftertreatment Type | DOC/DPF/SCR |
| Rated Engine Power | 75 hp |
| Rated Engine Power | 55 kW |
| Rated Engine Power | 75 PS |
| Maximum Engine Power | 75 hp |
| Maximum Engine Power | 55 kW |
| Maximum Engine Power | 75 PS |
Hydraulics
| Hydraulic System Type | Open center |
| Pump Rated Output | 24.9 gpm (94 L/min) |
| Available Flow at a Single Rear SCV | 18.2 gpm (68.8 L/min) |
| SCV Control | Joystick - Mechanical |
Additional Information
| Country of Manufacture | Saltillo, Mexico |
Electrical System
| Alternator Capacity | Cab: 110 amp |
| Working Lights | Standard: LED |
| Driving Lights | Headlight - Standard: LED; Beacon - Optional: LED |
Rear Hitch
| Rear Hitch Category (SAE Designation) | Category 2N; convertible to 1 |
| Sensing Type | Top link |
| Draft Control Sensing | Electrohydraulic |
Rear Axle
| Rear Axle Type | Flange |
| Differential Controls | Mechanical (pedal) |
| Final Drive | Planetary |
Rear Power Take-Off (PTO)
| PTO Category | Standard: 540/540E |
Capacities
| Fuel Tank Capacity | 28.53 gal. |
| Fuel Tank Capacity | 108 L |
Drawbar
| Maximum Vertical Load | Field use (fully extended): 1433 lb (650 kg) |
Operator Station
| ROPS Type | Platform - Flat (Cab only) |
| Gearshift Location | Floor, on the side |
| Seat Suspension | Standard for cab: Air ride; Optional for Cab: Mechanical |
| Instructional Seat | Not Available |
| Primary Display | Simple automotive-style instrument cluster |
| Radio | Optional |
Tires
| Rear Tires Size | 14.9-24 In. 8PR R1 Bias (With 9.5-16 BIAS Front) |
Technology Integration
| Guidance | Optional: AutoTrac™ Universal Ready |
| Secondary Display | G5 Universal |
| Receiver | StarFire™ 7500 |
| ISOBUS Ready | No |
Front Axle
| Front Axle Type | Mechanical Front Wheel Drive (MFWD) |
Transmission
| Transmission Type | Standard: PowrReverser™ 12F/12R; Optional: PowrReverser™ 24F/12R |
| Creeper | Optional |
| Reverser | Yes |
| Clutch | Wet |
Front Hitch
| Number of Front Selective Control Valves (SCVs) | Joystick - Mechanical |
