John Deere 2660VT - 33 ft, 10 in.
Double tap to zoom
2660VT - 33 ft, 10 in.
Vertical Tillage
Overview:

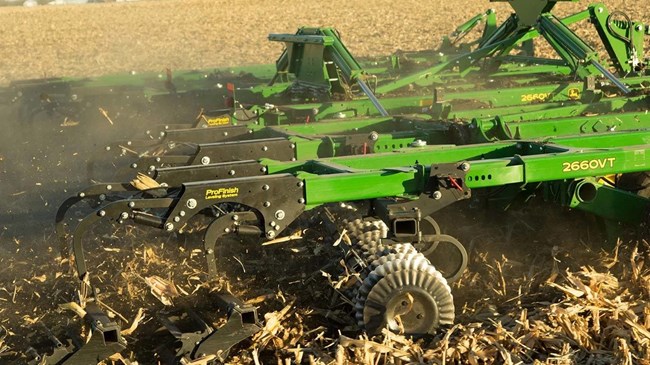

The 2660VT – 33 ft, 10 in. Variable Intensity Tillage tool is designed to support consistent performance and efficient operation. It combines practical features and integrated technology to help enable productive work across a range of field conditions.
- 0-12 Degree Adjustable Gang Angle
- Wavy-Straight Blade Features Double-Cut Edge
- ProFinish™ Leveling System With Dual Hydraulic Rolling Baskets
- TruSet allows operators to set depth from the cab
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Autonomy-Ready Tillage

Autonomy should be as straightforward as technology. With integrated components like implement lights, a receiver mast, and an implement receiver harness, autonomy-ready tillage equipment helps customers save time and money by ensuring today’s purchases are prepared for future autonomous operation.
Versatile Gang Angle Adjustments

This model features an adjustable gang angle from 0 to 12 degrees, enabling users to adapt to different field conditions. A true 0-degree angle facilitates residue retention, while a more aggressive angle provides effective weed removal and field leveling.
Versatility Providing Year-Round Benefits

In spring, tillage helps break up crusted soil, manage residue and weeds, and improve seed-to-soil contact for better emergence and planter performance. In fall, it focuses on cutting and burying residue, enhancing water infiltration, and incorporating nutrients or cover crops while smoothing the soil surface.
Specifications
Machine
| Blade Spacing | 7.25 in. |
| Blade Spacing | 18.4 cm |
| Gang Angle | 0-12 degrees |
| Weight Per Blade | 260 lb. |
| Weight Per Blade | 117.9 kg |
| Blade Diameter | 22 in. |
| Blade Diameter | 55.9 cm |
| Blade Thickness | 0.256 in. |
| Blade Thickness | 6.5 mm |
| Rolling Basket | Double Rolling basket, Reverse Knife edge, followed by round bar or flat bar rolling basket |
| Horsepower Requirement | 24.5-34.25 engine kW/m (10-14 engine hp/ft) |
| Transport Width | 5.3 m (17 ft, 5 in.) |
| Transport Height | 4.19 m (13 ft, 9 in.) |
| Underframe Clearance | 12 ft |
| Underframe Clearance | 3.66 m |
| Transport Length | Without rear hitch One-section: 9.2 m (30 ft, 3 in.) Three-section: 10.06 m (33 ft) Five-section: 12.19 m (40 ft) |
| Working Width | Gang angle at 0 degrees One-section: 4.37 m (14 ft, 4 in.) Three-section: 6.25 m (20 ft, 6 in.), 7.75 m (25 ft, 5 in.), 9.2 m (30 ft, 3 in.), and 10.3 m (33 ft, 10 in.) Five-section: 13.26 m (43 ft, 6 in.) and 15.1 m (49 ft, 6 in.) |
| Depth Control | Single point and TruSet™ system |
| Maximum Operating Depth | 0-6 in. |
| Maximum Operating Depth | 0-15.24 cm |
| Operating Speed | 8-10 mph |
| Operating Speed | 12.9-16.1 km/h |
